Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Electronic Instument Cluster >> 25A Electronic Instrument Cluster Switch Malfunction

25A Electronic Instrument Cluster Switch Malfunction

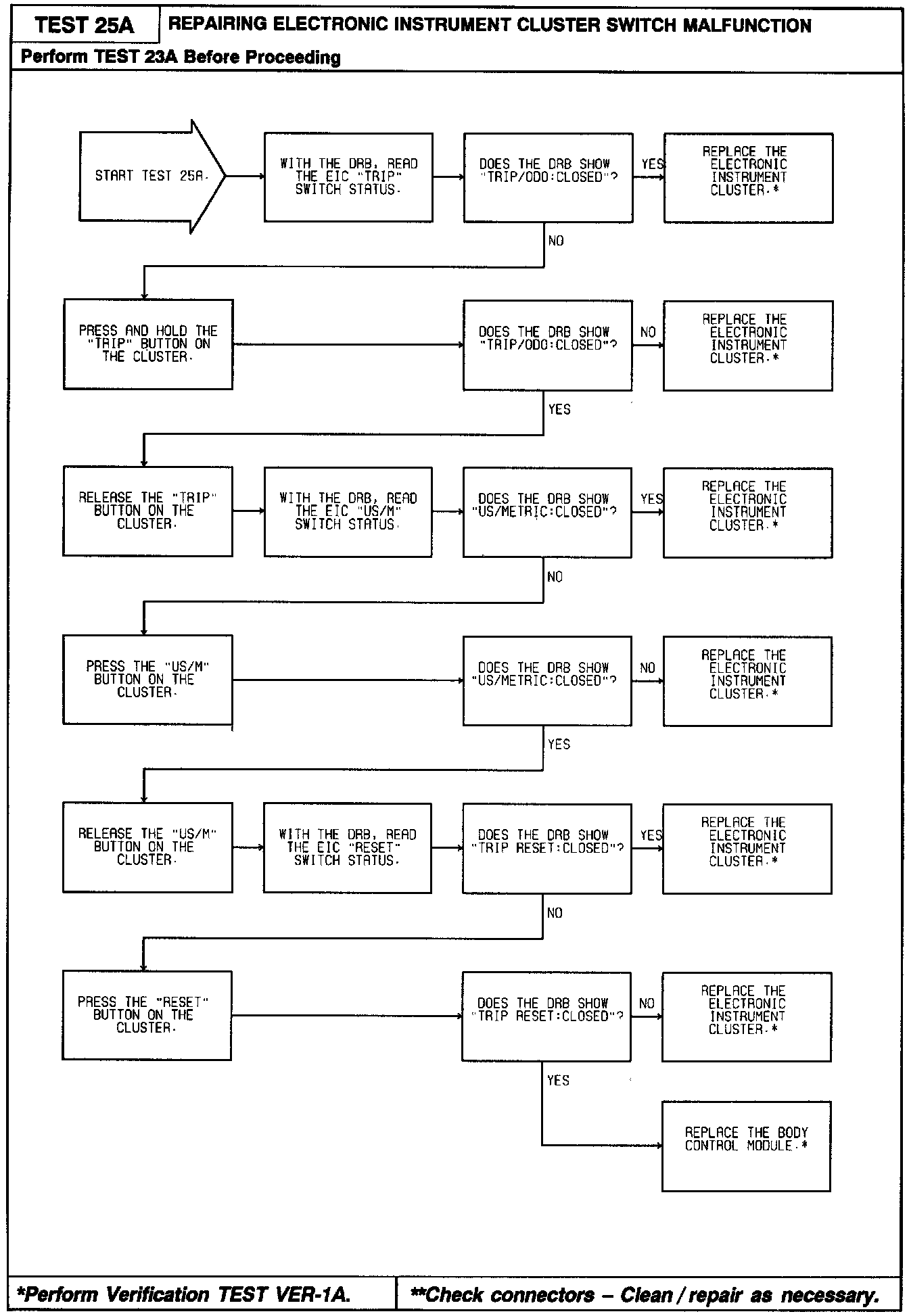

Diagnostic Chart:
