Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Compass/Temperature Module >> 15D Repairing Open Ambient Temperature Sensor Circuit

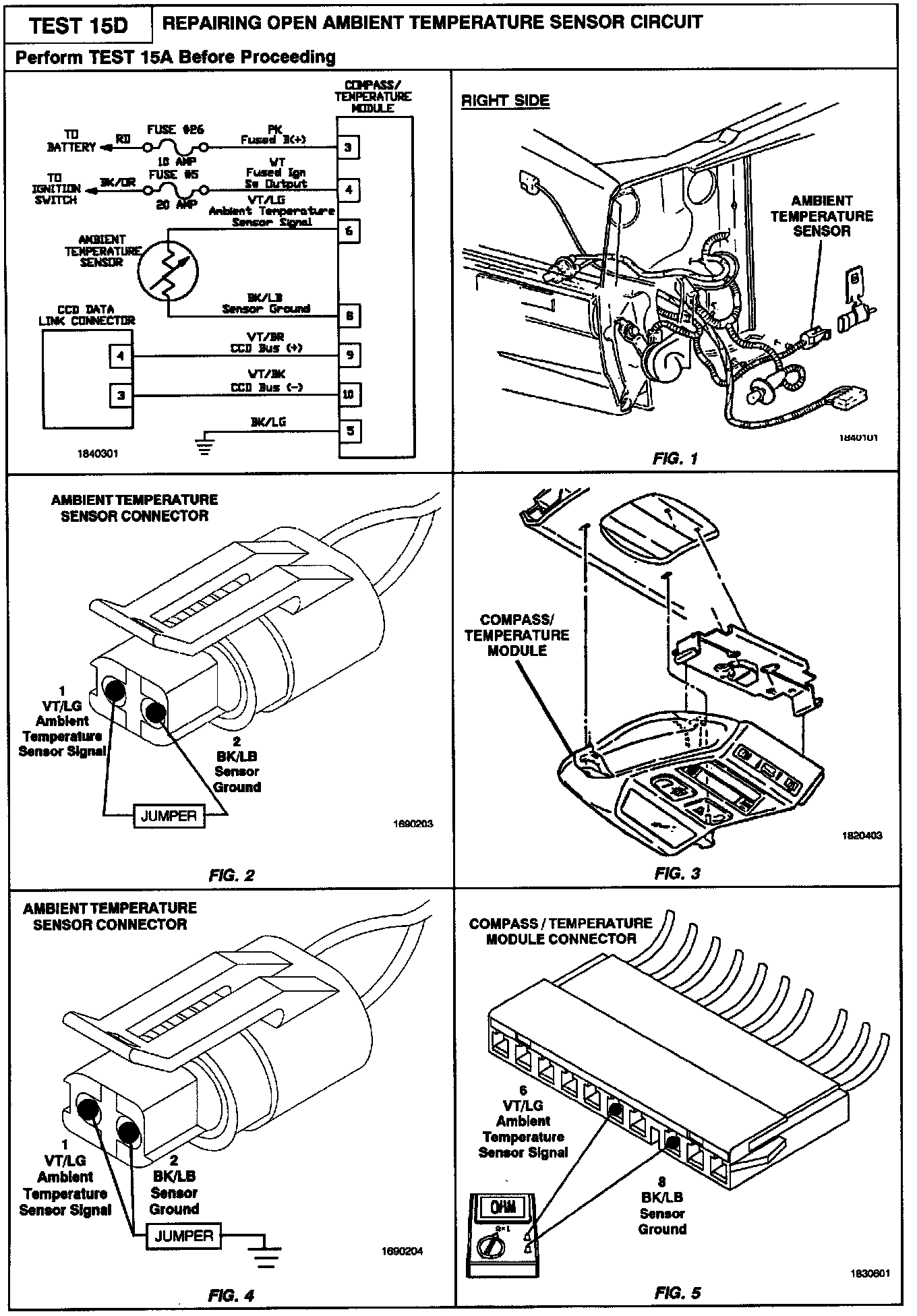

15D Repairing Open Ambient Temperature Sensor Circuit

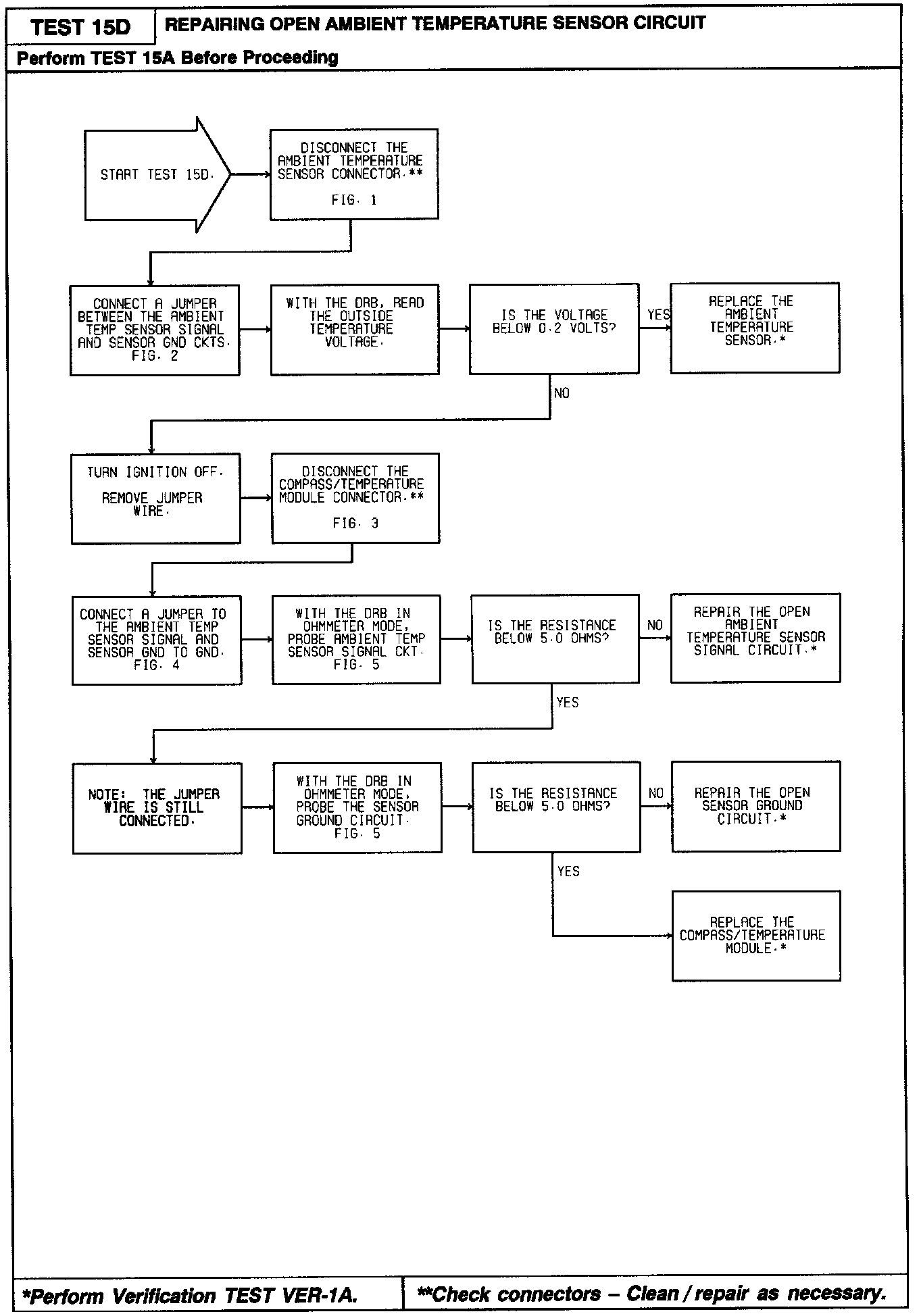

Diagnostic Chart:

Related Images:
