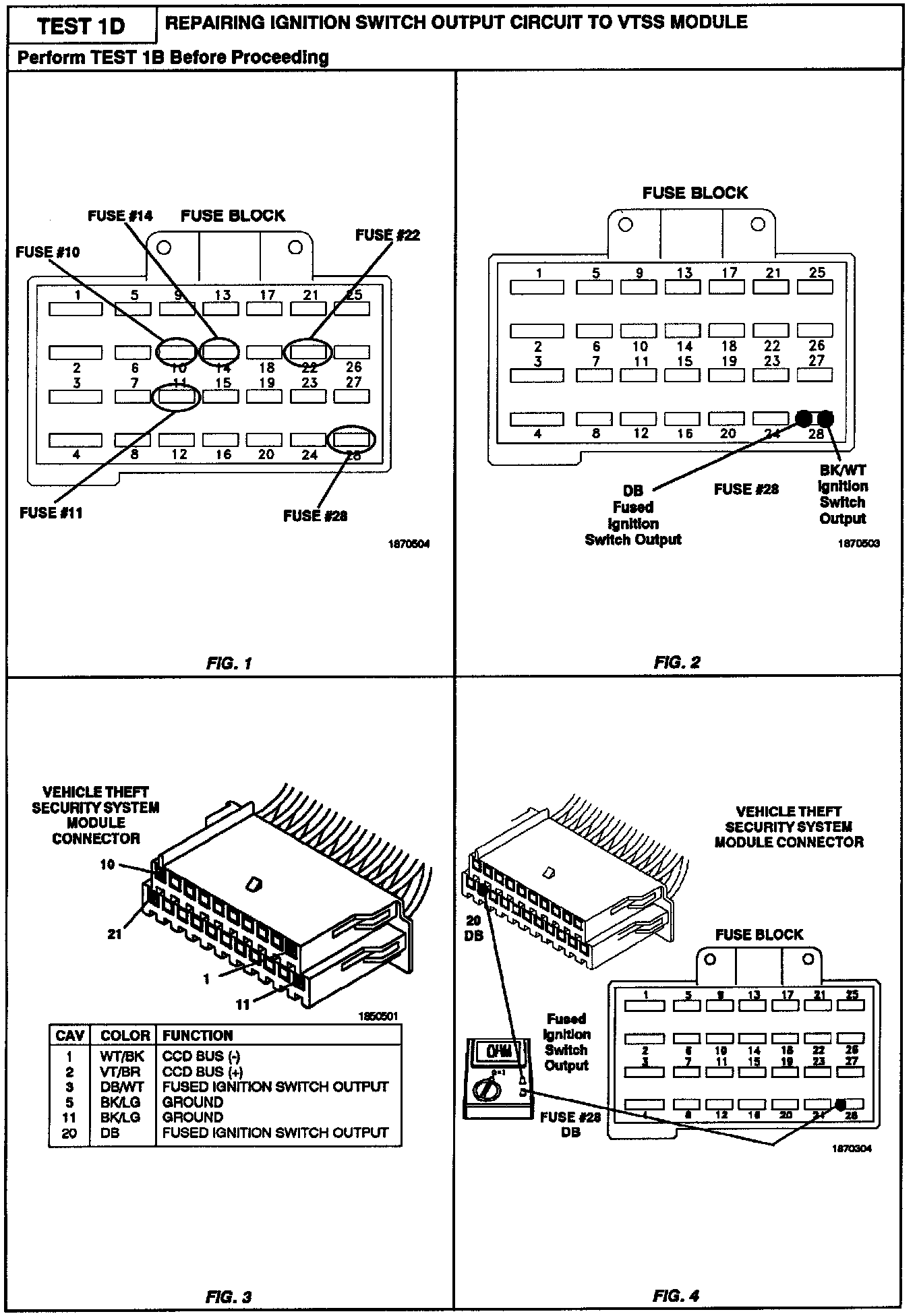

1D Repairing Ignition Sw. Output Ckt to VTSS Module
1D Repairing Ignition Sw. Output Ckt to VTSS Module

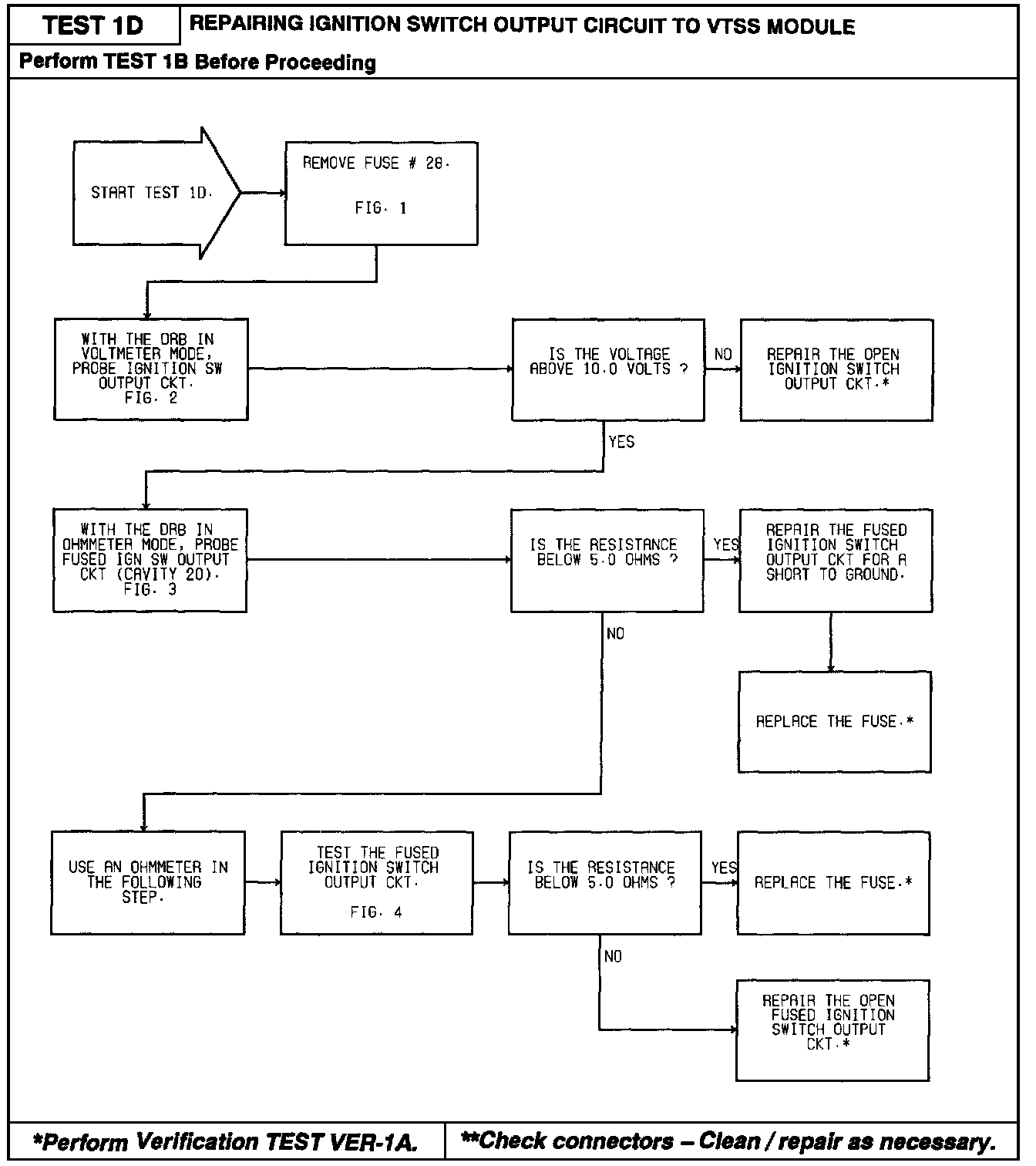

Diagnostic Chart:
Related Images:
