Window Regulator: Service and Repair

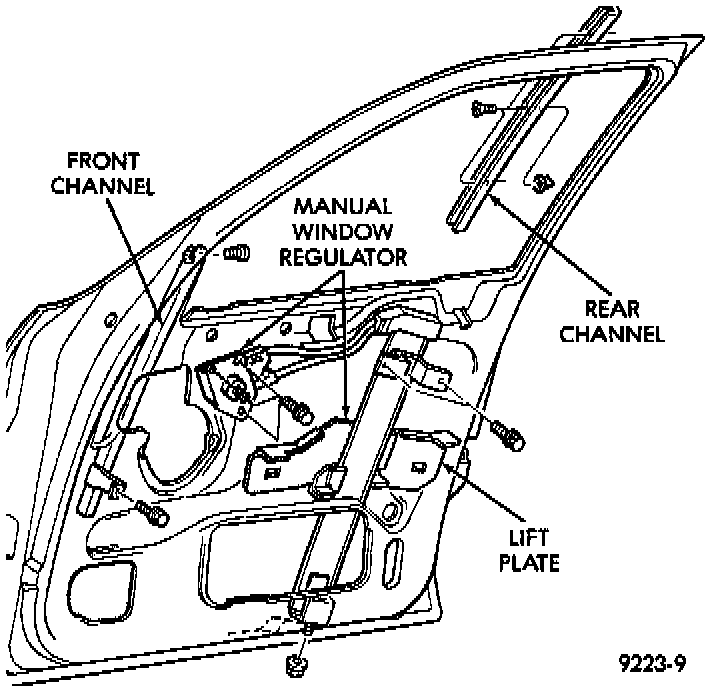

Front Door Manual Window Regulator:

Front Door Power Window Regulator:

FRONT DOOR WINDOW REGULATOR, MANUAL OR ELECTRIC
1. Remove front door trim panel.
2. Remove silencer pad and water shield.
3. Remove side view mirror trim cover and door frame trim moulding.
4. Remove door glass.
5. Remove nut holding cable retainer to inner door panel and slip cables from behind retainer.
6. Disengage push in retainer holding cables to inner door panel above speaker on vehicles with power windows.
7. Remove bolts holding top of glass lift bar to inner door panel.
8. Remove nut holding bottom of lift bar to bottom panel of door.
9. Remove bolts holding window crank regulator to inner door panel on vehicles with manual windows. Remove nuts holding motor and regulator to inner door panel on vehicles with power windows.
10. Separate window regulator from vehicle.
11. Reverse the preceding operation.

REAR DOOR WINDOW REGULATOR
1. Remove rear door trim panel.
2. Remove silencer pad and water shield.
3. Remove bolts holding regulator to inner door panel.
4. Slide regulator lift arm roller from lift plate channel.
5. Separate regulator from door.
6. Reverse the preceding operation for installation.
