Power Steering Pump Identification

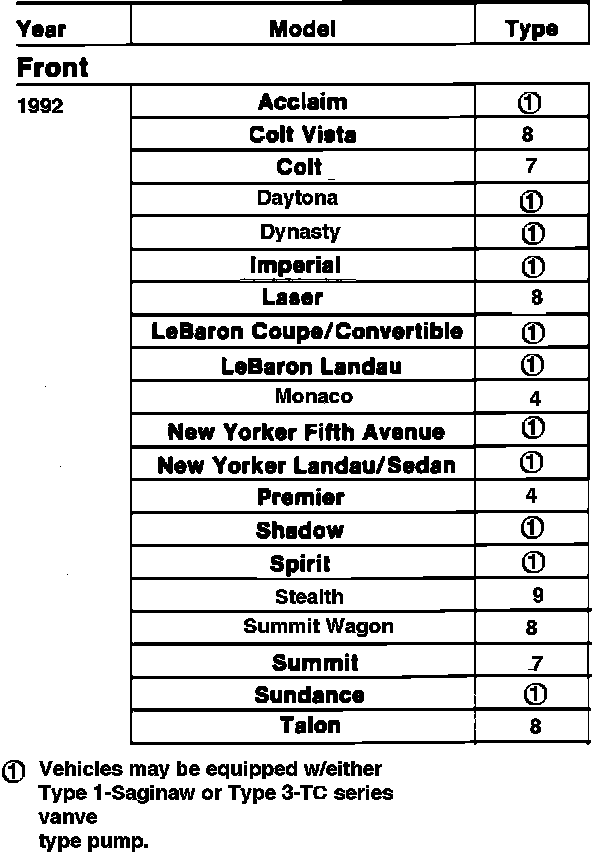

Power Steering Pump Application Chart (part 3 Of 5):

Type 1-Saginaw vane type pump

Fig. 1 Saginaw Pump & Reservoir Assembly:

Type 2-ZF vane type pump

Fig. 1 Type 2--ZF Power Steering Pump Assembly:

Type 3-TC Series vane type pump
Utilizes a remote fluid reservoir located at the left inner fender panel.
