Brake Switch (Cruise Control): Diagrams

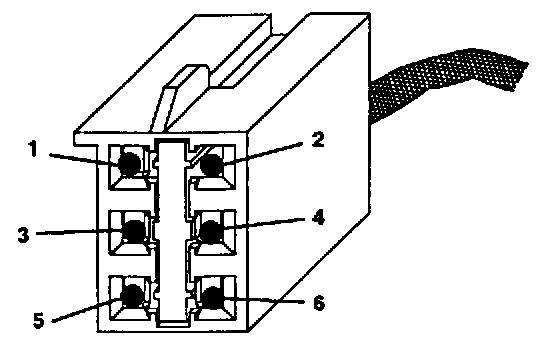

CAVITY CIRCUIT FUNCTION
1 K29 WT/PK Brake Switch Sense
2 Z1 BK Ground
3 Stop Lamp Terminal
4 Stop Lamp Terminal
5 V32 YL/RD S/C On/Off
6 V30 DB/RD S/C Servo Input
CAVITY CIRCUIT FUNCTION
1 K29 WT/PK Brake Switch Sense
2 Z1 BK Ground
3 Stop Lamp Terminal
4 Stop Lamp Terminal
5 V32 YL/RD S/C On/Off
6 V30 DB/RD S/C Servo Input
