Quick-Connect Fitting Operation

Quick Connect Fittings:

Chassis Type Fuel Tubes

Note: Fuel injection quick connect fitting "O" rings, spacers, and retainers must be replaced each time a quick connect fitting is disconnected.

Removal

1. Disconnect the Quick-Connect fitting by pushing in on the plastic ring at the end of the fitting and pulling on the Quick-Connector. An open-end wrench may be used to assist in unlocking the fittings.
2. Once the Quick-connect fitting is disconnected, plug the fuel lines so that dirt and foreign particles do not enter the fuel lines.

Installation

Note: Before reassembling the Quick-Connect fittings, lubricate the fuel tube nipples with clean 30 weight engine oil.

1. Check that the black plastic ring is in the OUT position. If the release ring is stuck in the release position due to dirt accumulation or mushrooming of the release ring, the fitting should be replaced.
2. Connect the Quick-Connect fuel fittings by pushing the fitting onto the fuel tube nipple. The fitting should snap into place when it is locked.

Note: After the Quick-Connect fuel fittings have been installed, the connection should be verified by pulling on the lines.

3. Push the fuel tube into the connector until another audible click is heard. Check the connection by pulling back lightly on the fuel tube. It should remain inside the connector, locked in place.

Quick Connect Fitting Assembly/Disassembly (Except Chassis Fuel Tubes):

Except Chassis Type Fuel Tubes

Removal (Manual)

1. Bend the retainer tabs down.
2. While pulling up on the underside of the retainer tab, push the legs of the retainer clip away from each other.
3. Raise the pull tab until the hooks on the legs of the retainer clip clears the fuel tube.
4. Pull fuel tube out of the Quick-Connect fitting.
5. Check the connector body and retainer for damage. Replace if necessary.

Disconnecting Quick Connect Fittings (Screwdriver):

Removal (Screwdriver)

1. Bend the retainer tabs down.

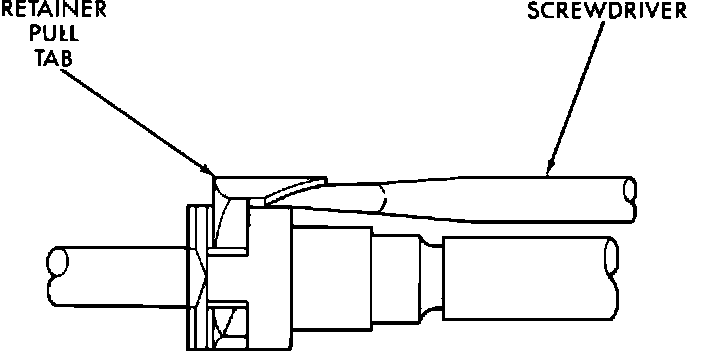

2. Insert a screwdriver between the retainer clips pull tab and the body of the Quick-Connect fitting.
3. Rotate the screwdriver 90 degrees to lift the retainer clip.
4. Raise the pull tab while pushing the legs of the retainer clip away from each other.
5. Raise the retainer clip until the hooks on the legs of the retainer clip clears the fuel tube.
6. Pull fuel tube out of the Quick-Connect fitting.
7. Check the connector body and retainer for damage. Replace if necessary.


Installation

Quick Connect Fitting Assembly/Disassembly (Screwdriver):

1. Before installing the fuel tube into Quick-Connect fitting, clean the fuel tube and lubricate the nipple with new engine oil.
2. Push fuel tube into Quick-Connect fitting until the stop on the fuel tube rests against the back of the Quick-Connect fitting.
3. Push the retainer clip into the slot in the Quick-Connect fitting until it locks in place.
4. Bend the retainer clip tabs up into their locking position.
