EGR Valve: Service and Repair

EGR System:

Removal

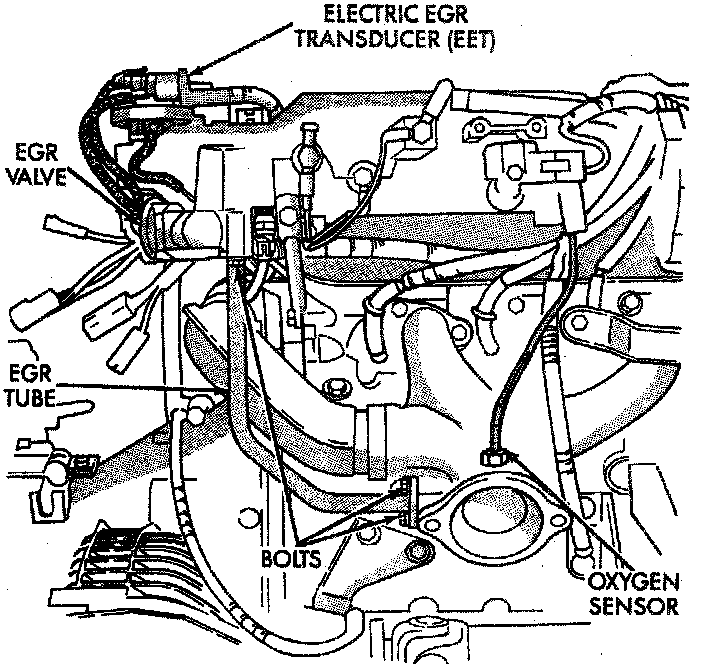

1. Disconnect EGR transducer electrical connector and vacuum hoses.
2. Remove EGR valve to intake manifold bolts.
3. Open clip and remove transducer.
4. Remove EGR valve.
5. Clean gasket surface and discard old gasket.
6. Inspect for signs of leakage or cracks.

Installation

1. Loosely install EGR valve with new gasket.
2. Torque bolts to 200 lb-in (22 Nm).
3. Install transducer in clip with orientation tab in slot and snap closed.
4. Connect vacuum hoses and electrical connector.
