Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-9A Checking DIS Signal Status and DIS Crank Sensor >> Part 1 of 2

Part 1 of 2

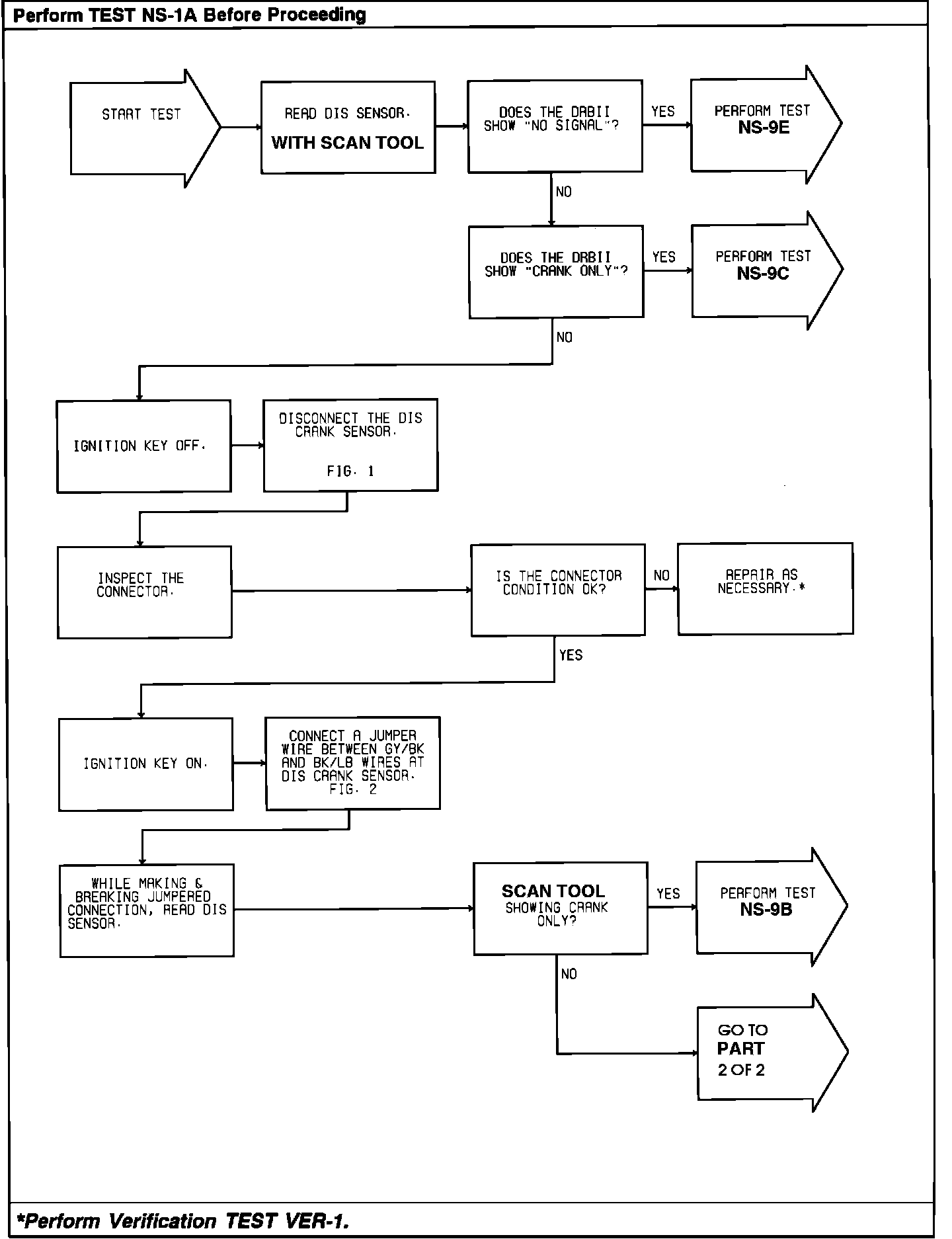

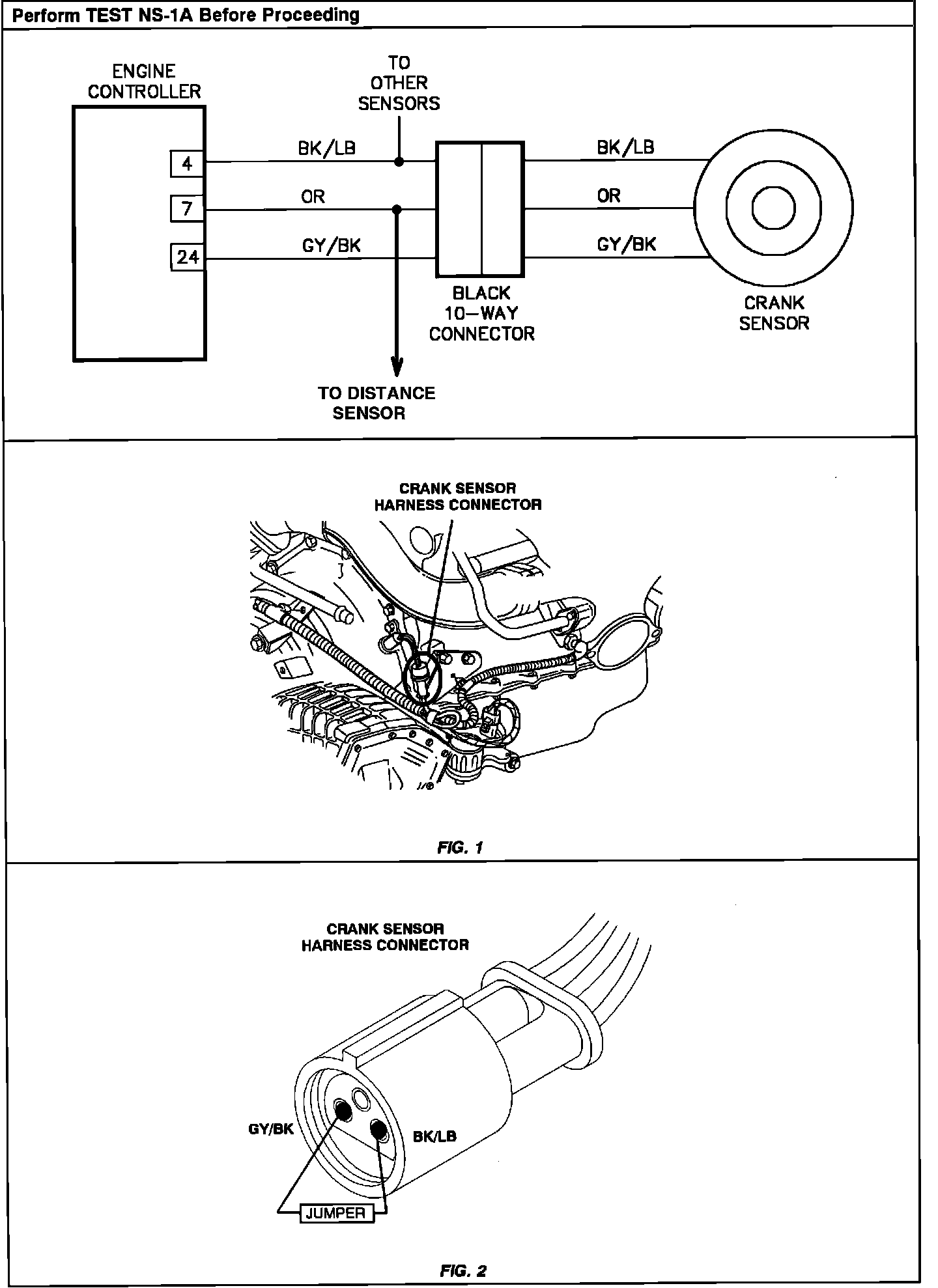

Checking DIS Signal Status And DIS Crank Sensor:



Checking DIS Signal Status And DIS Crank Sensor:
