No Start Test
>>
No Start (NS) Tests
>>
NS-3A Checking the Engine Mechanical Systems
>>
Part 1 of 2
Part 1 of 2

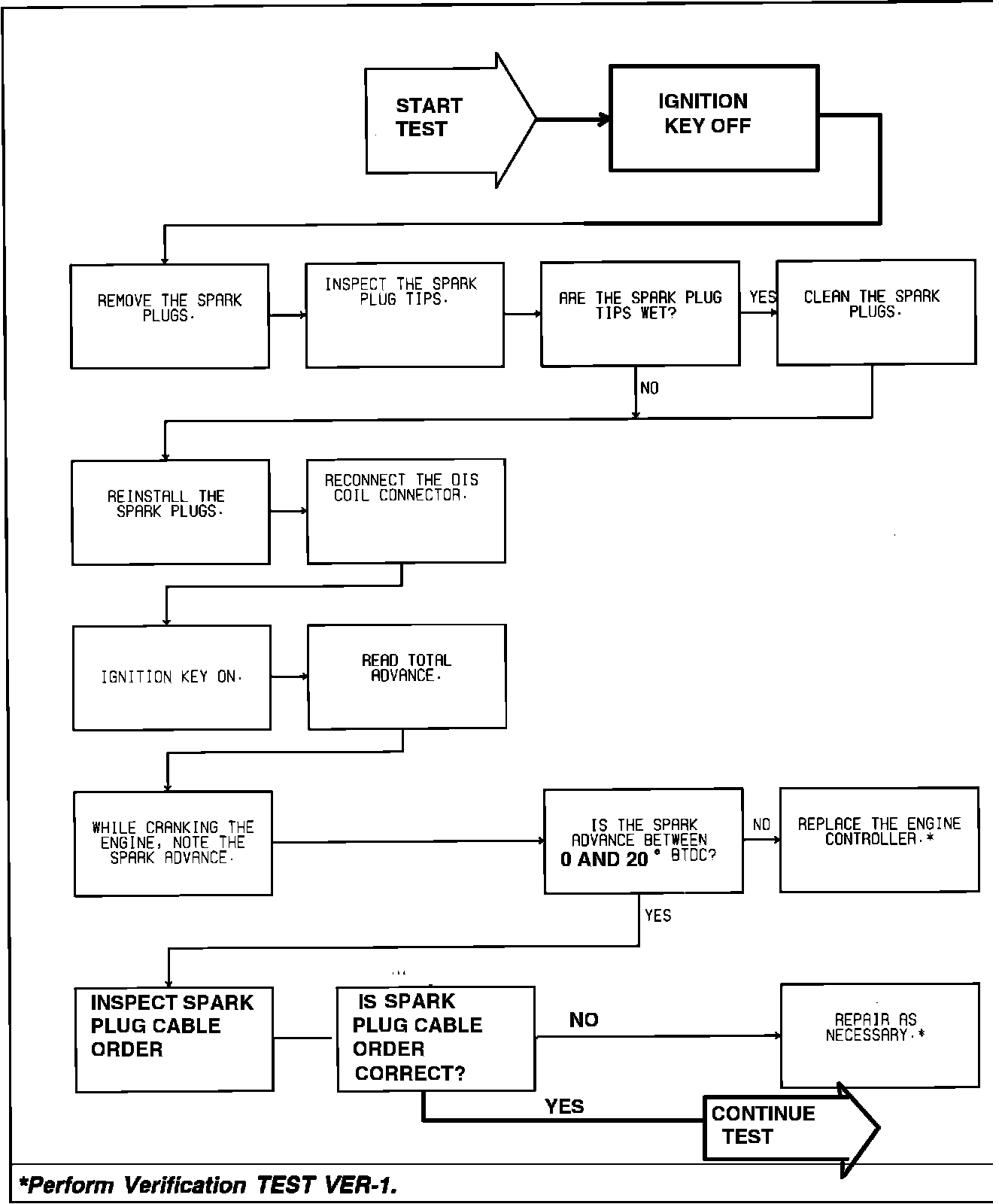

Test NS-3A - TPS, Fuel Pressure, Power To Coil, Spark Plugs, And Timing:
Test NS-3A - TPS, Fuel Pressure, Power To Coil, Spark Plugs, And Timing:
