Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Fault (NF) Tests >> NF-3A Checking Fuel Pressure

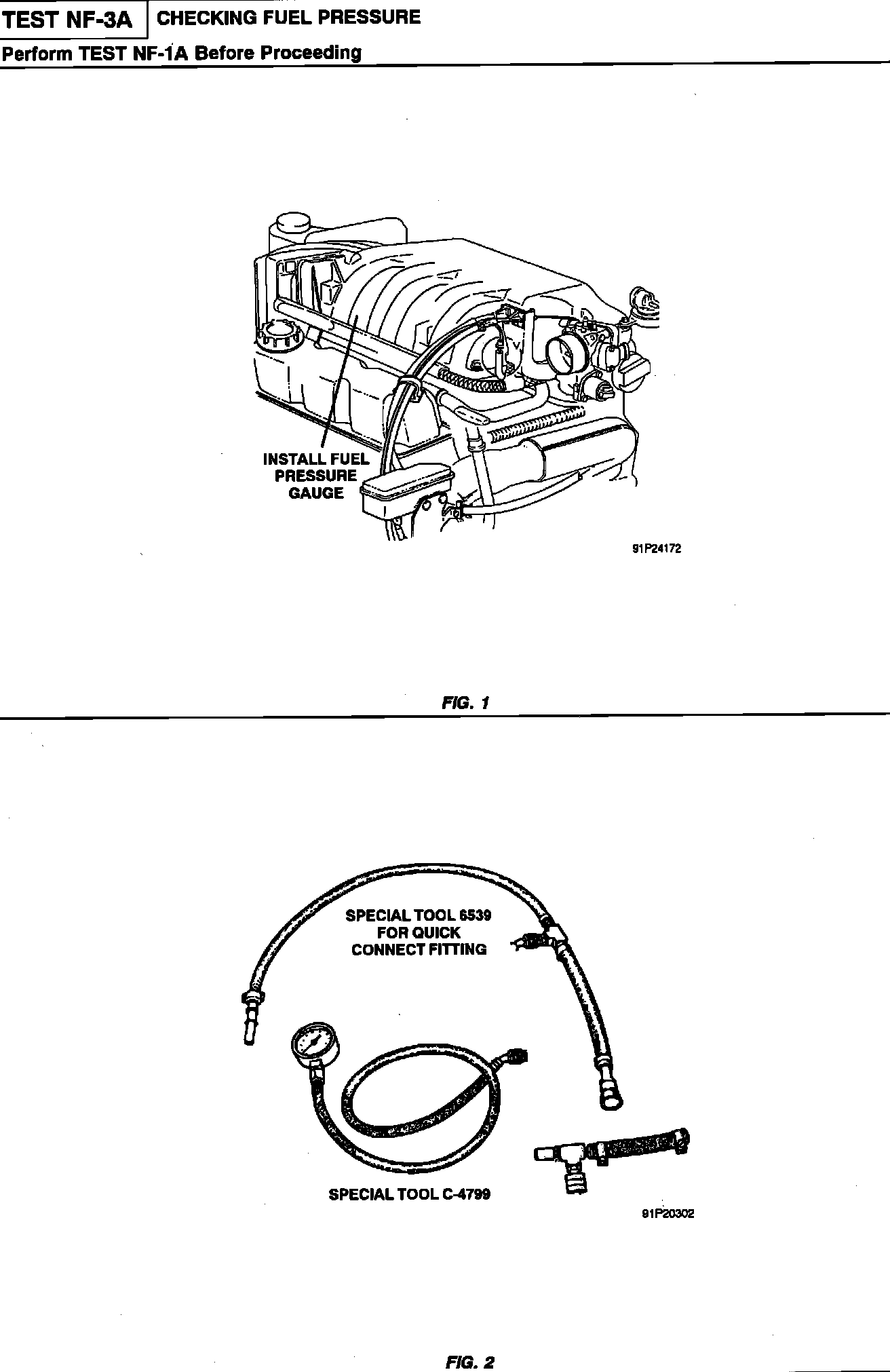

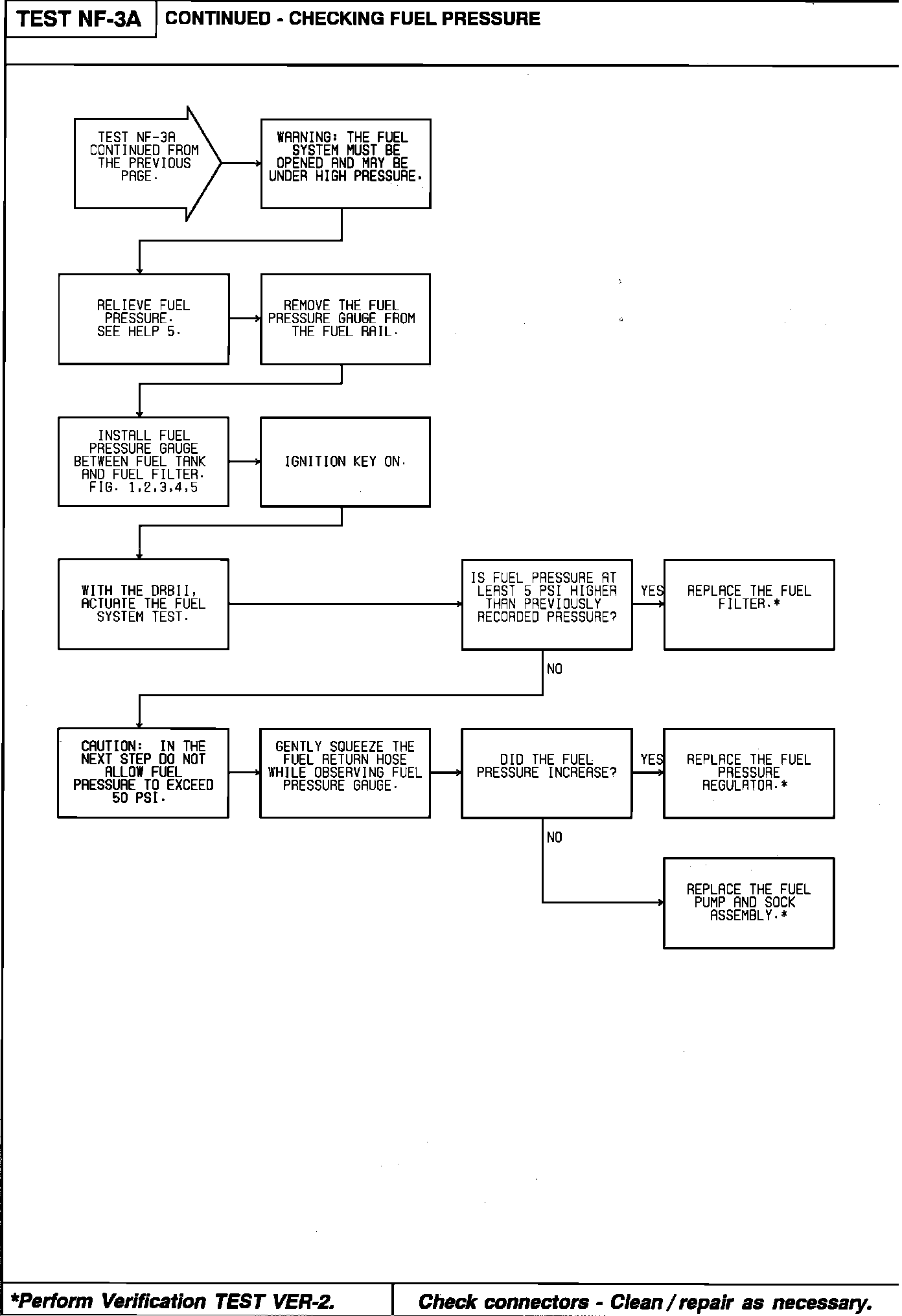

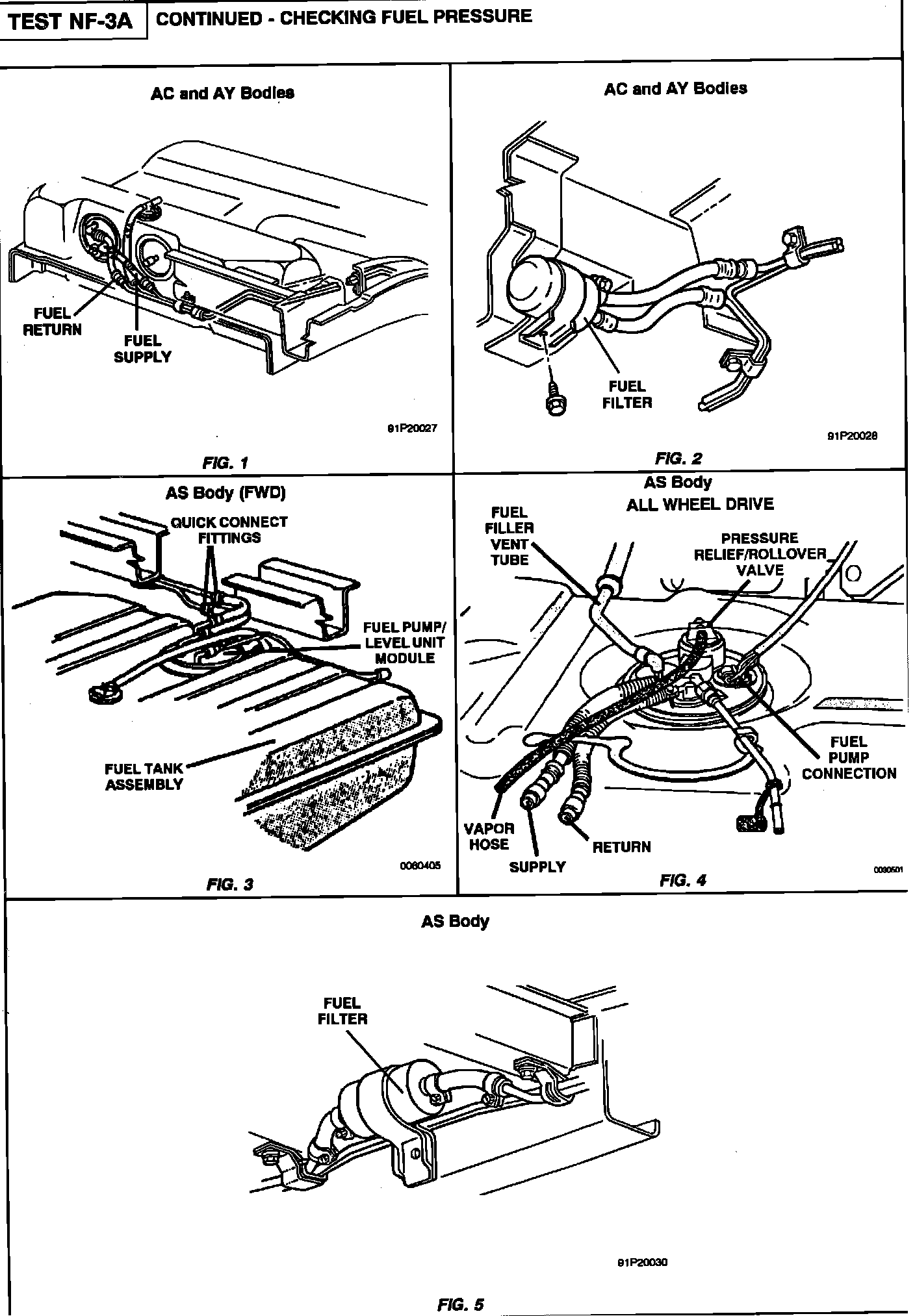

NF-3A Checking Fuel Pressure
