Without Daytime Running Lights

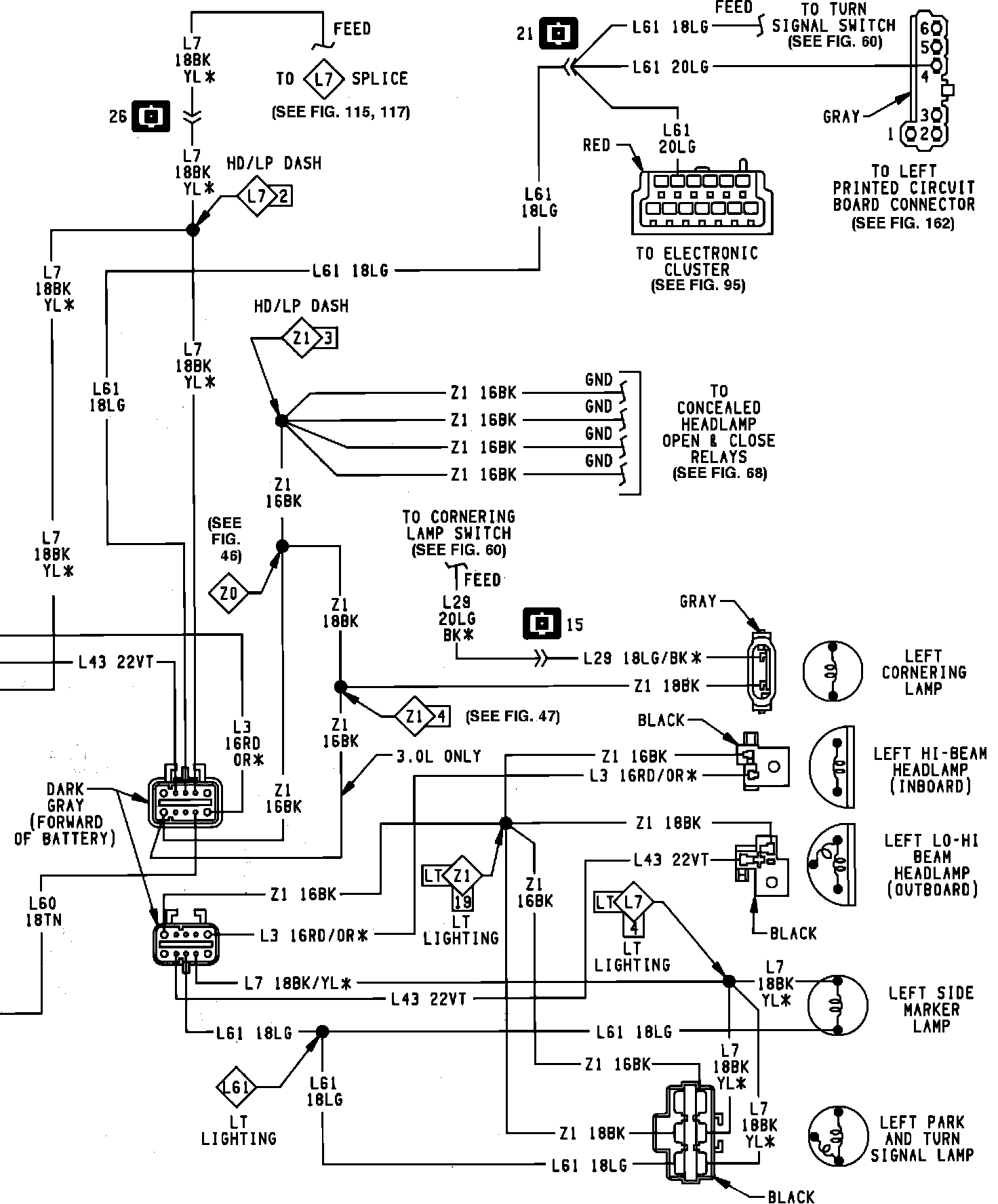

Frond End Lighting Concealed-Headlamps:

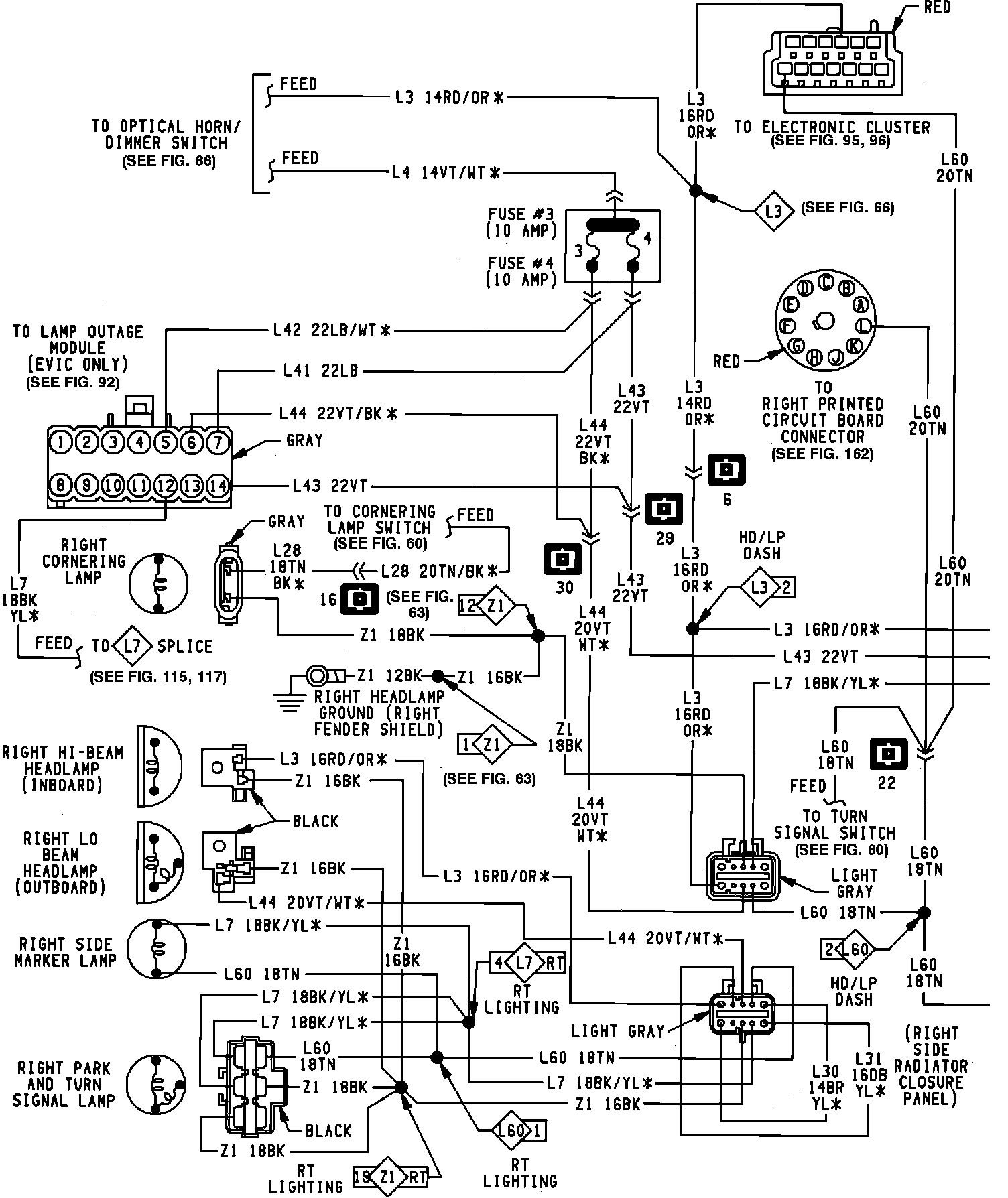

Front End Lighting Concealed-Headlamps:
