New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Body Wiring
>>
Left Side
Left Side

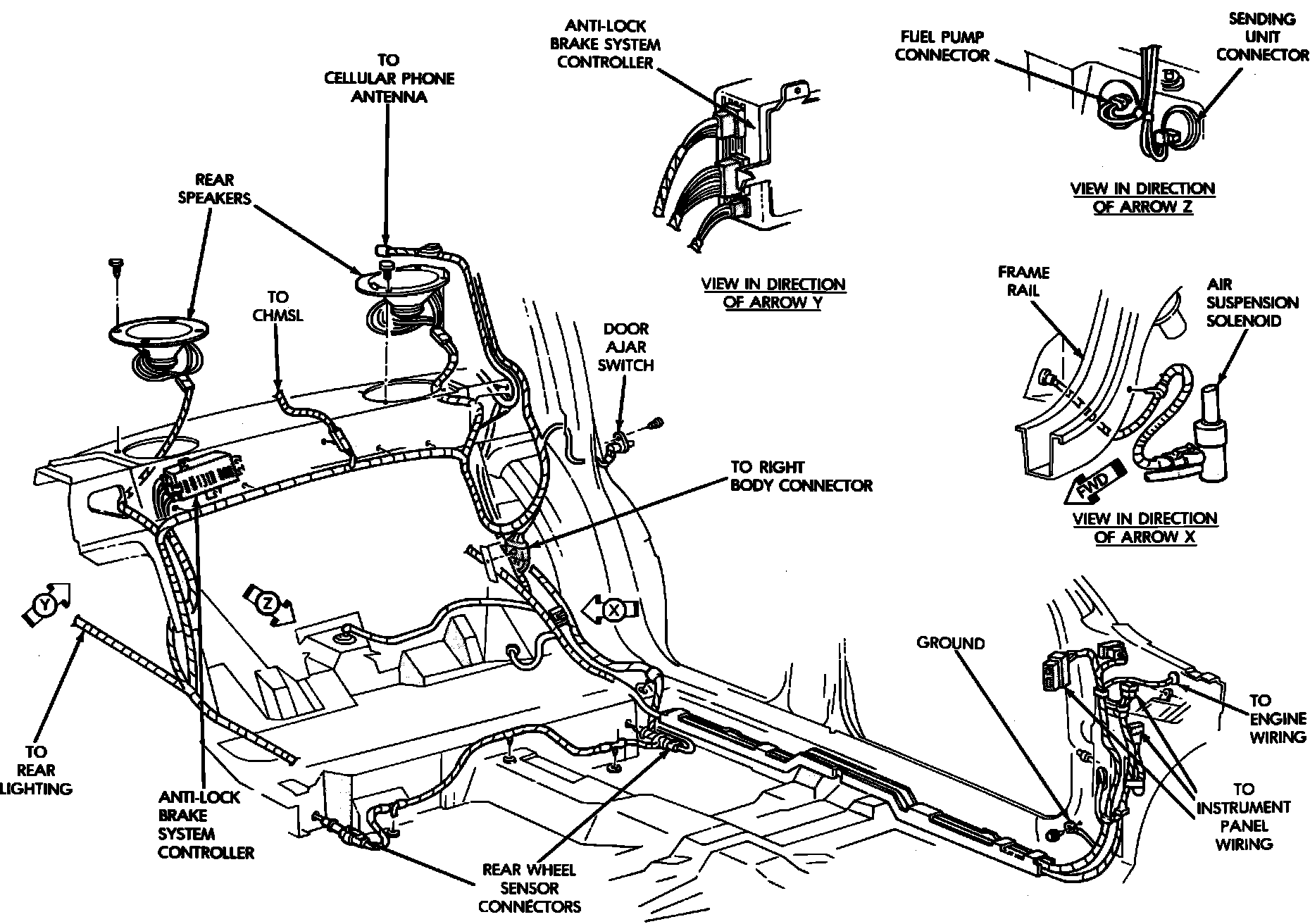

Body Left Side Wiring:
