With Automatic Temperature Control (ATC)

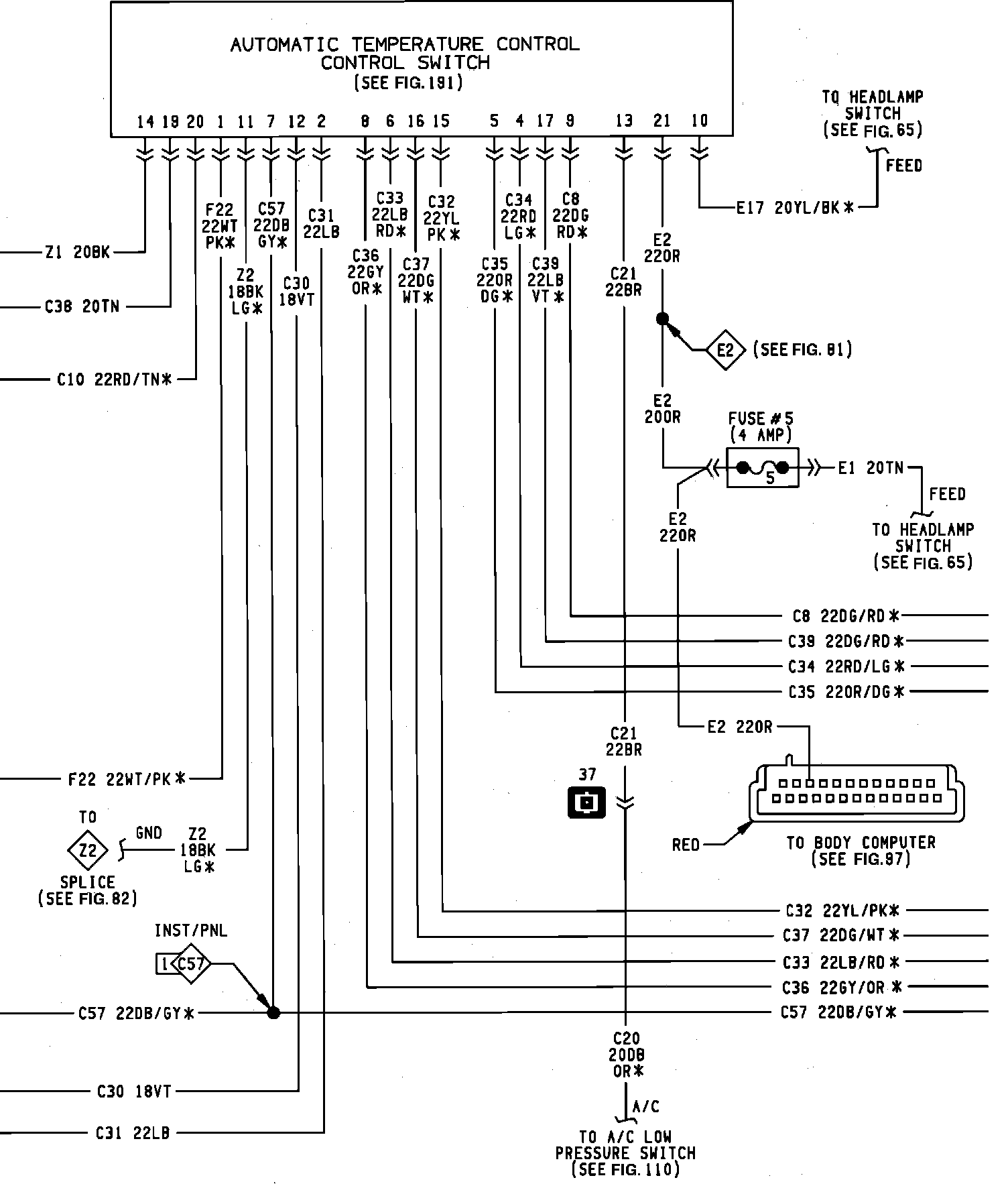

Automatic Temperature Control:



Automatic Temperature Control:

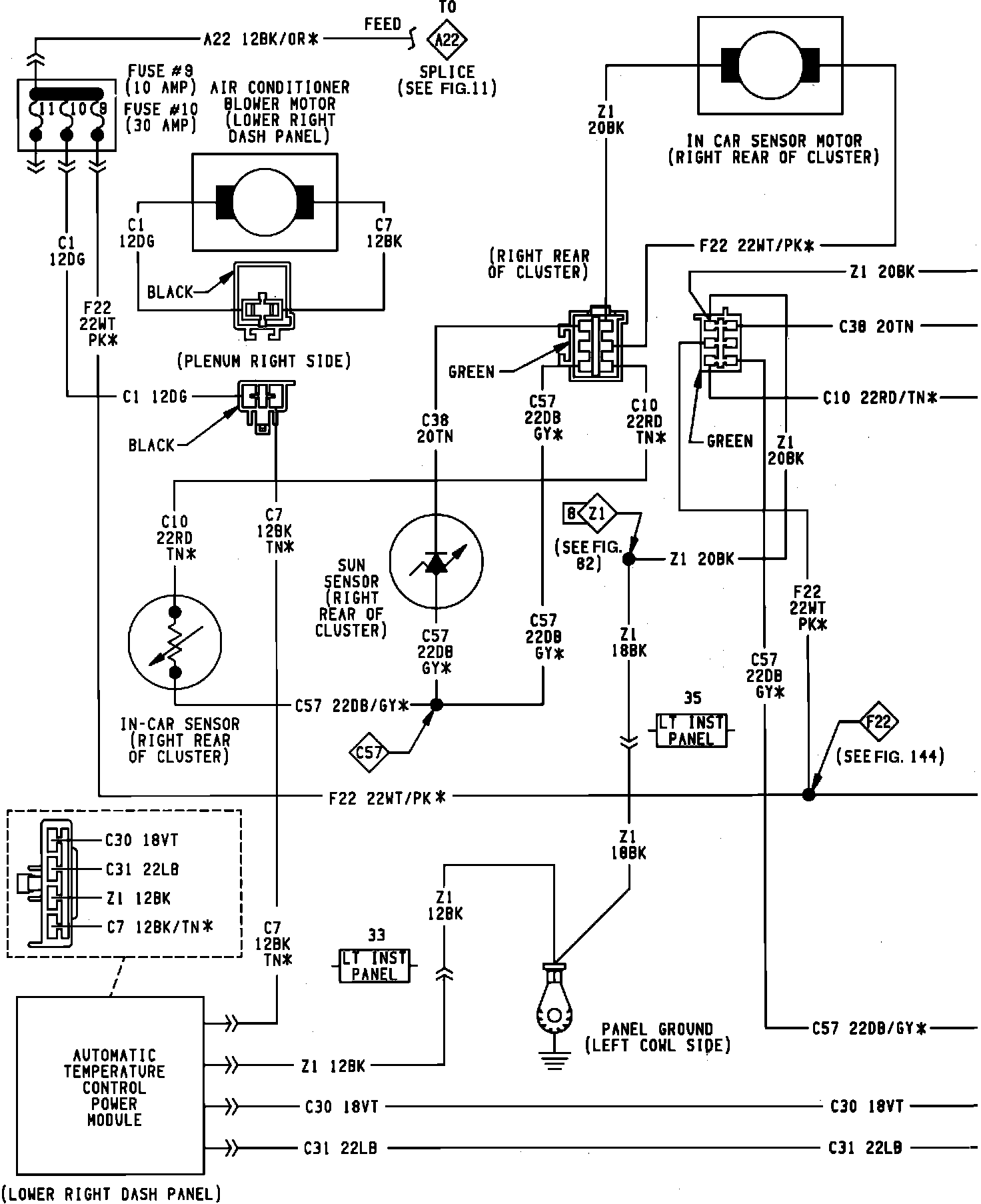

Automatic Temperature Control:



Automatic Temperature Control (Radiator And Compressor):



Automatic Temperature Control (Radiator And Compressor):
