Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 61 Thru 80 >> 75

61 Thru 80: 75

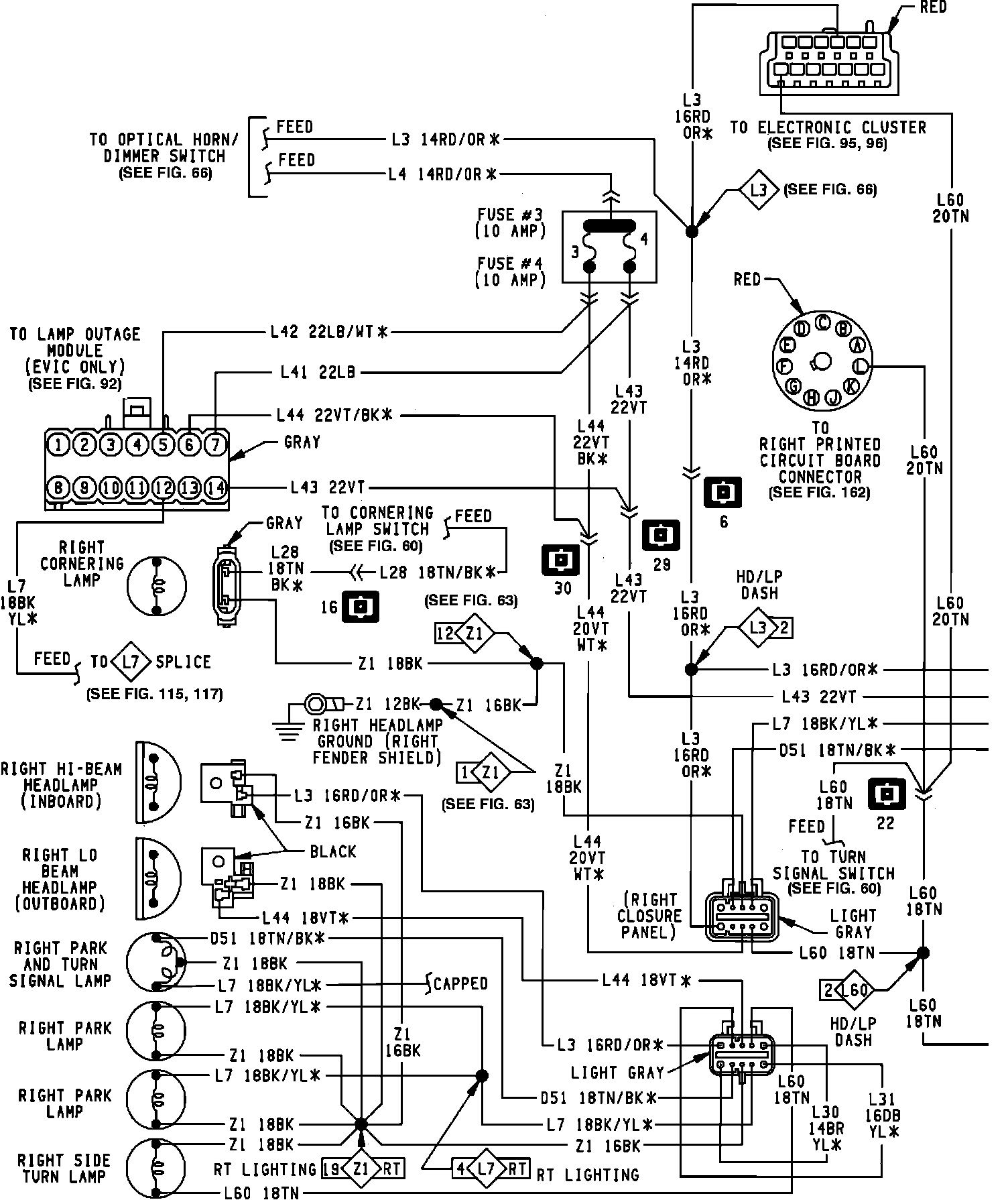

Front End Lighting-Concealed Headlamps With D.R.L.:
