Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram >> With Automatic Temperature Control

With Automatic Temperature Control

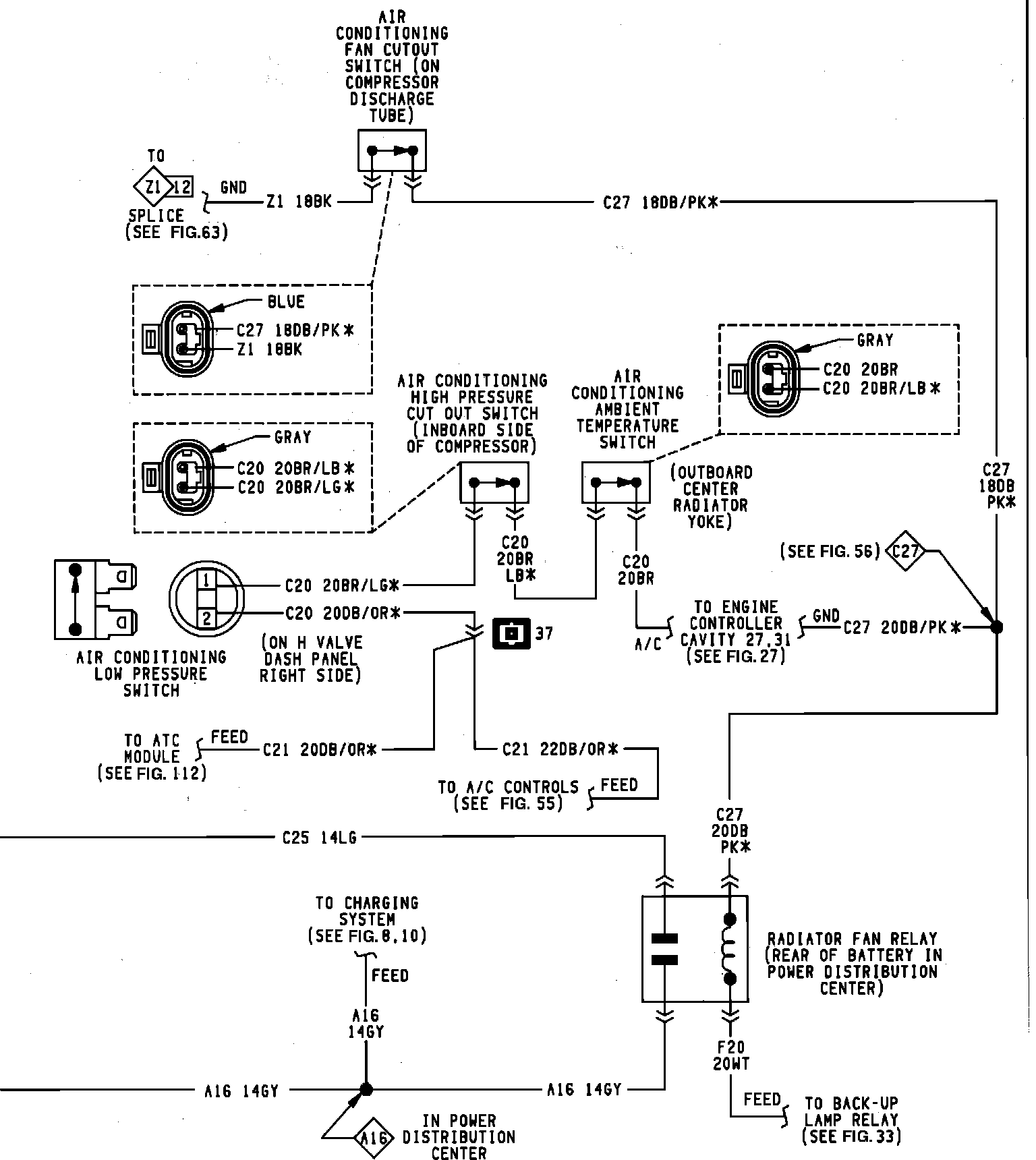

Automatic Temperature Control (Radiator And Compressor):

Automatic Temperature Control (Radiator And Compressor):
