Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Wiring Diagrams >> With Mechanical Cluster >> With Visual Message Center >> Part 4 of 4

Part 4 of 4

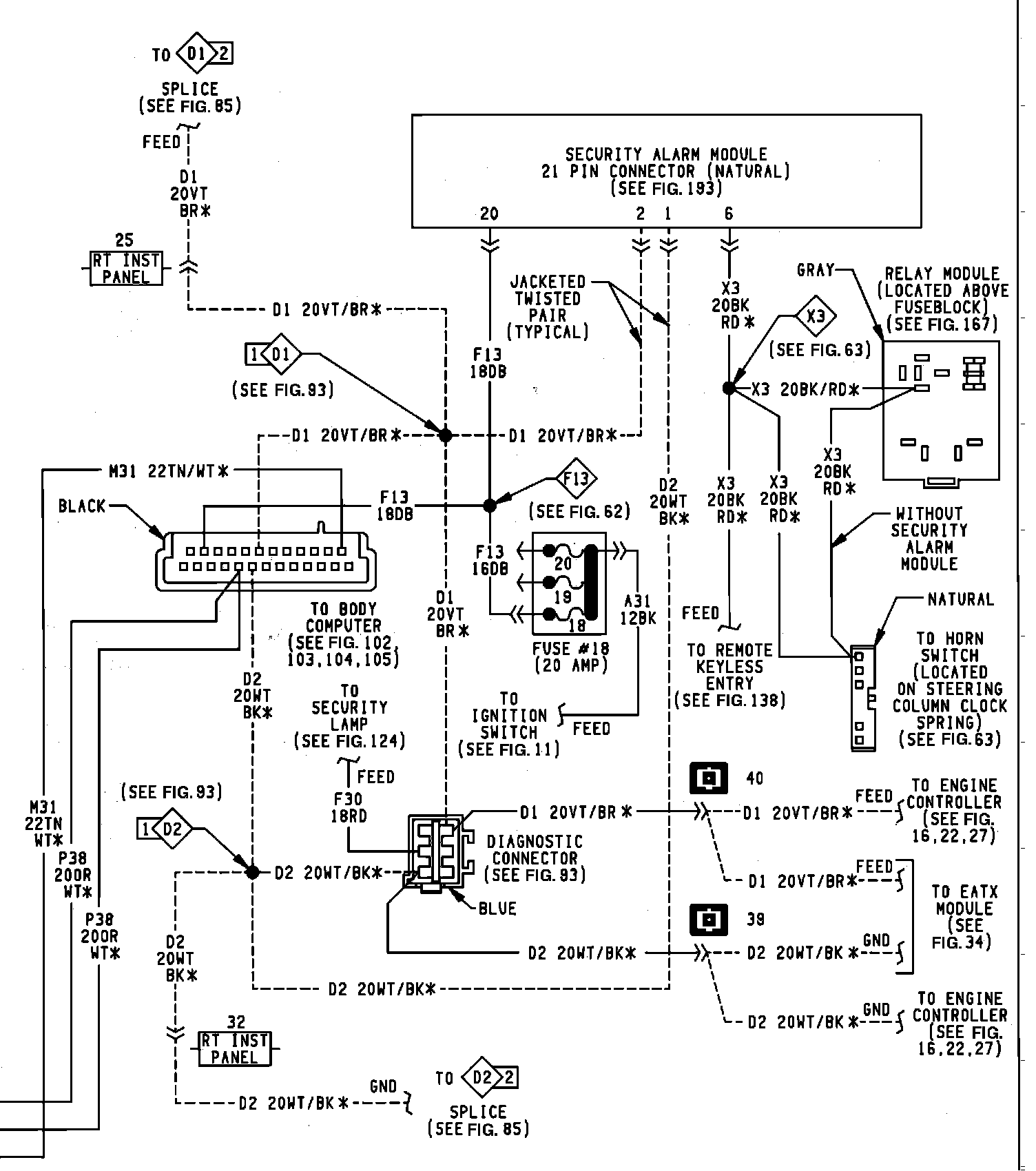

Security Alarm System (Mechanical Cluster With Visual Message Center):
