Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Outside Remote >> Without Memory

Without Memory

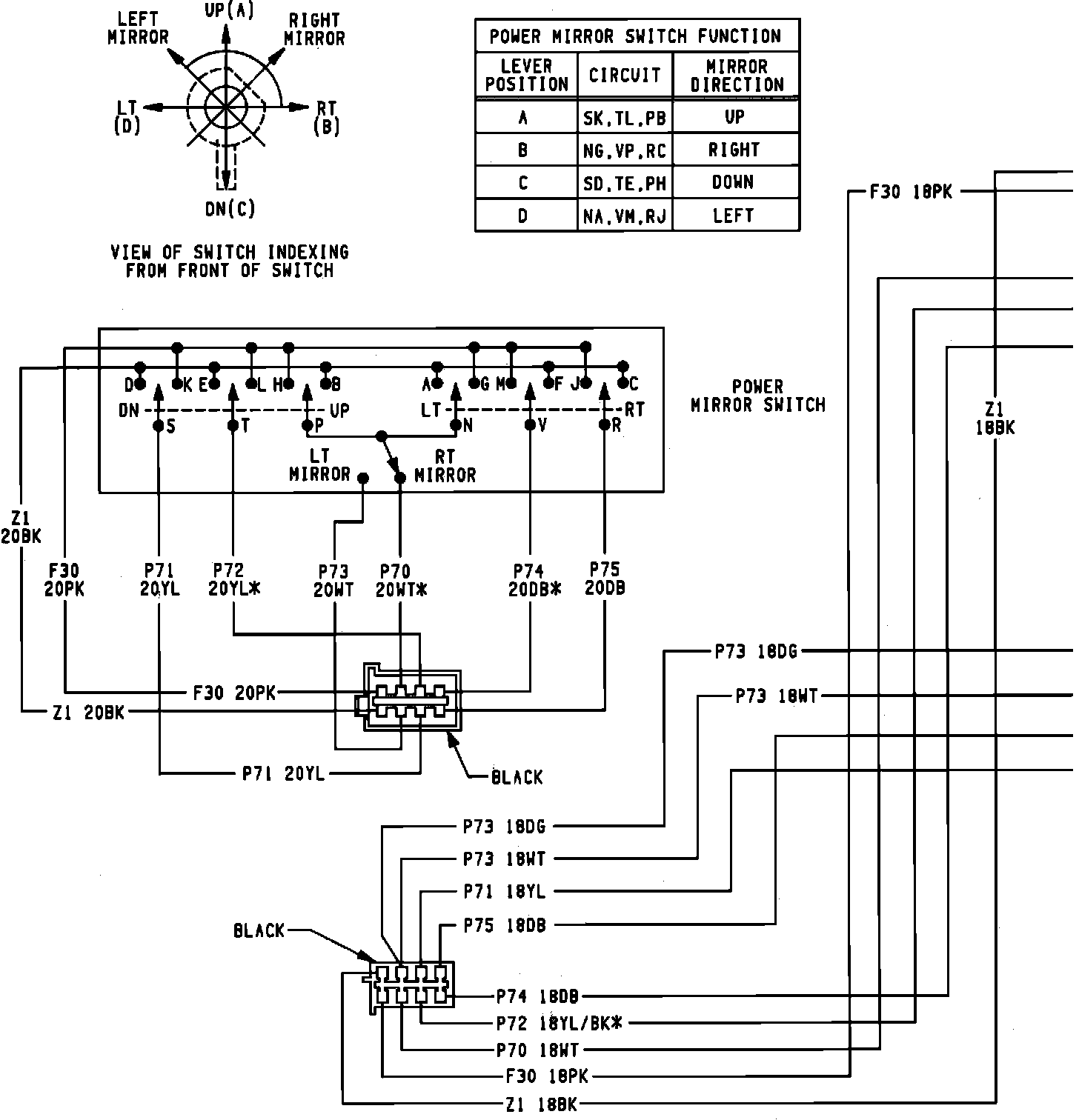

Power Heater Mirrors (Without Memory):

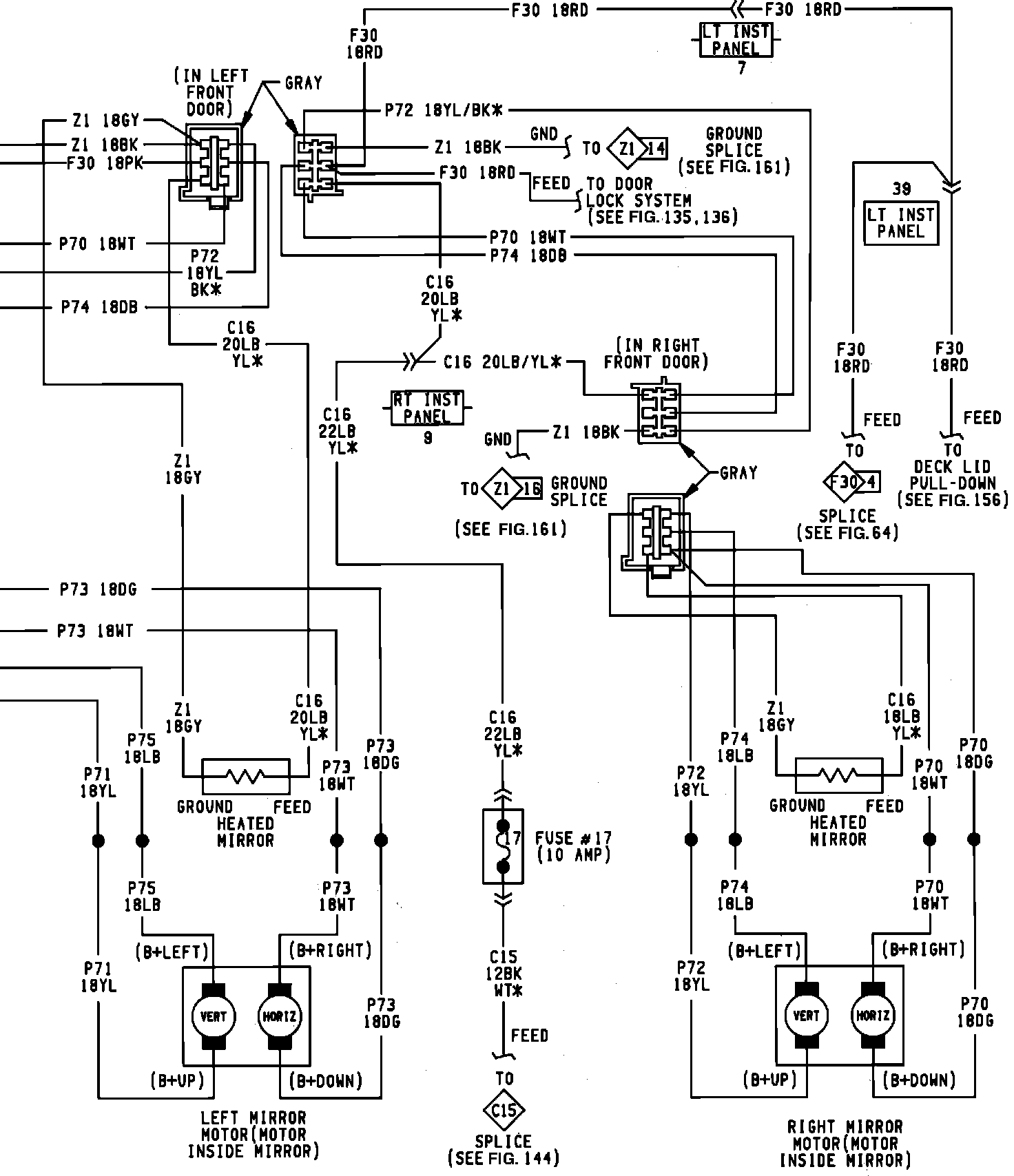

Power Heated Mirrors (Without Memory):
