Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Outside Remote >> With Memory

With Memory

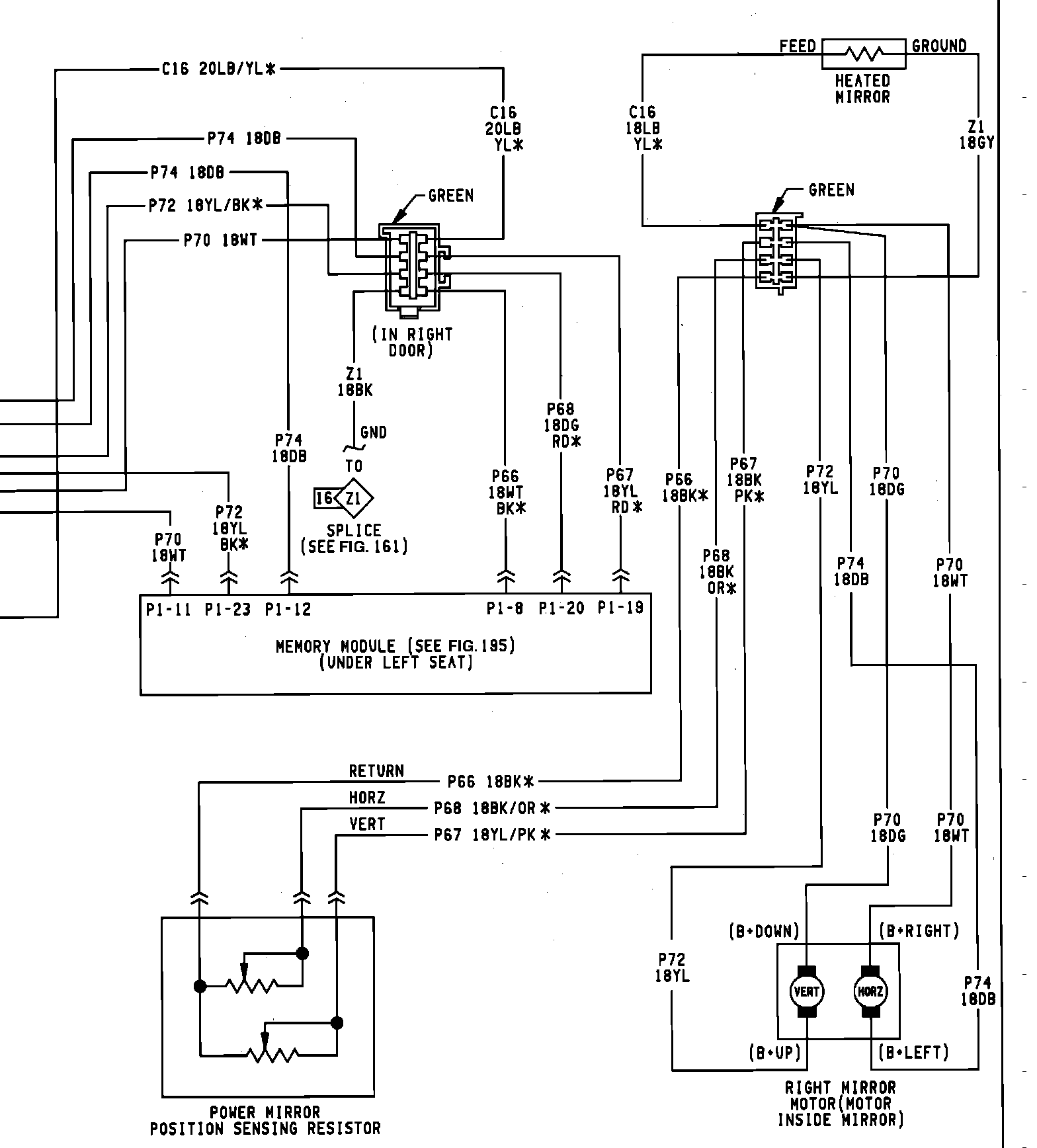

Power Heated Memory Mirror System:



Power Heated Memory Mirror System:
