Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 40A Testing the Body Controlled For No Response

40A Testing the Body Controlled For No Response

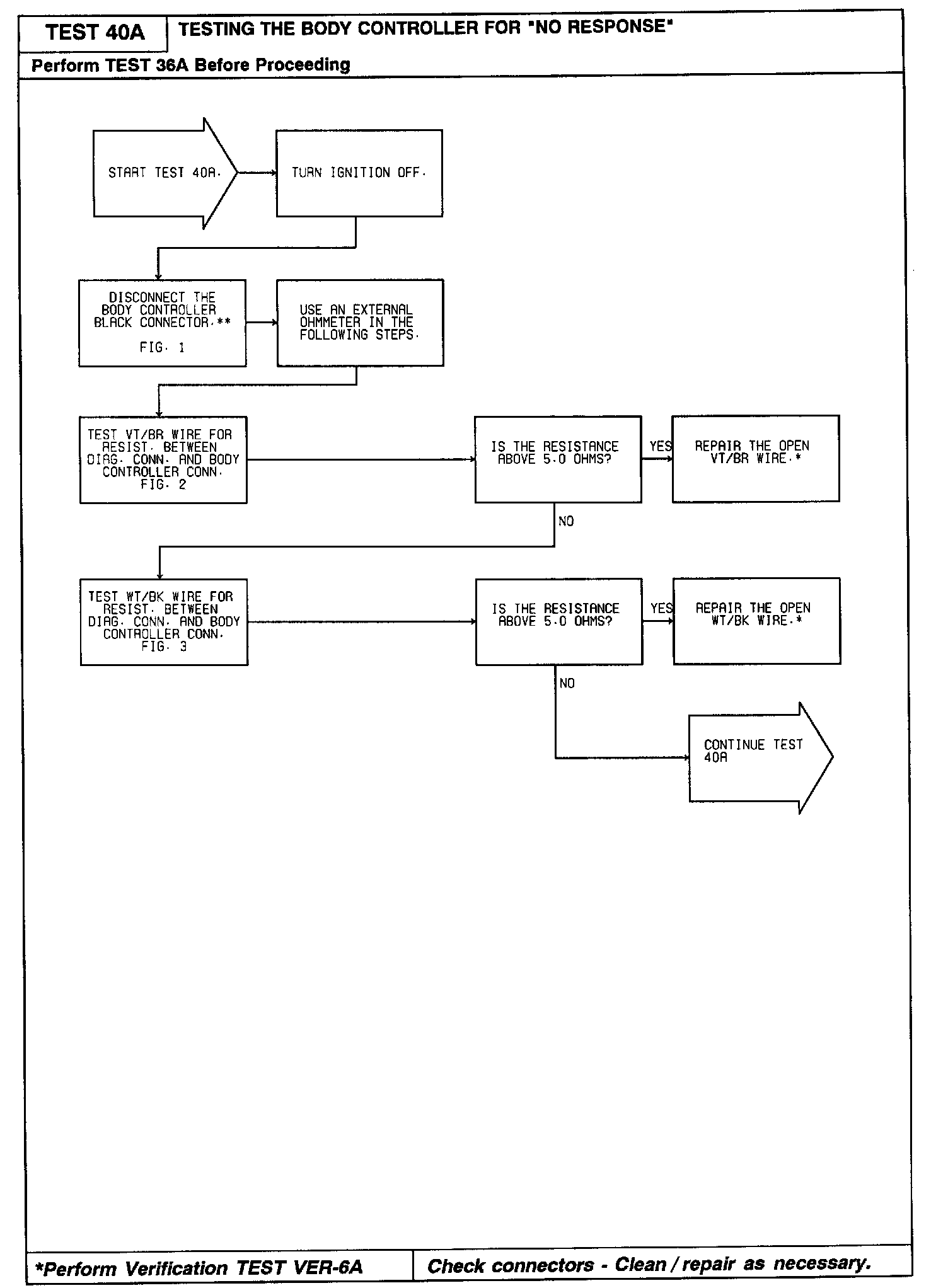

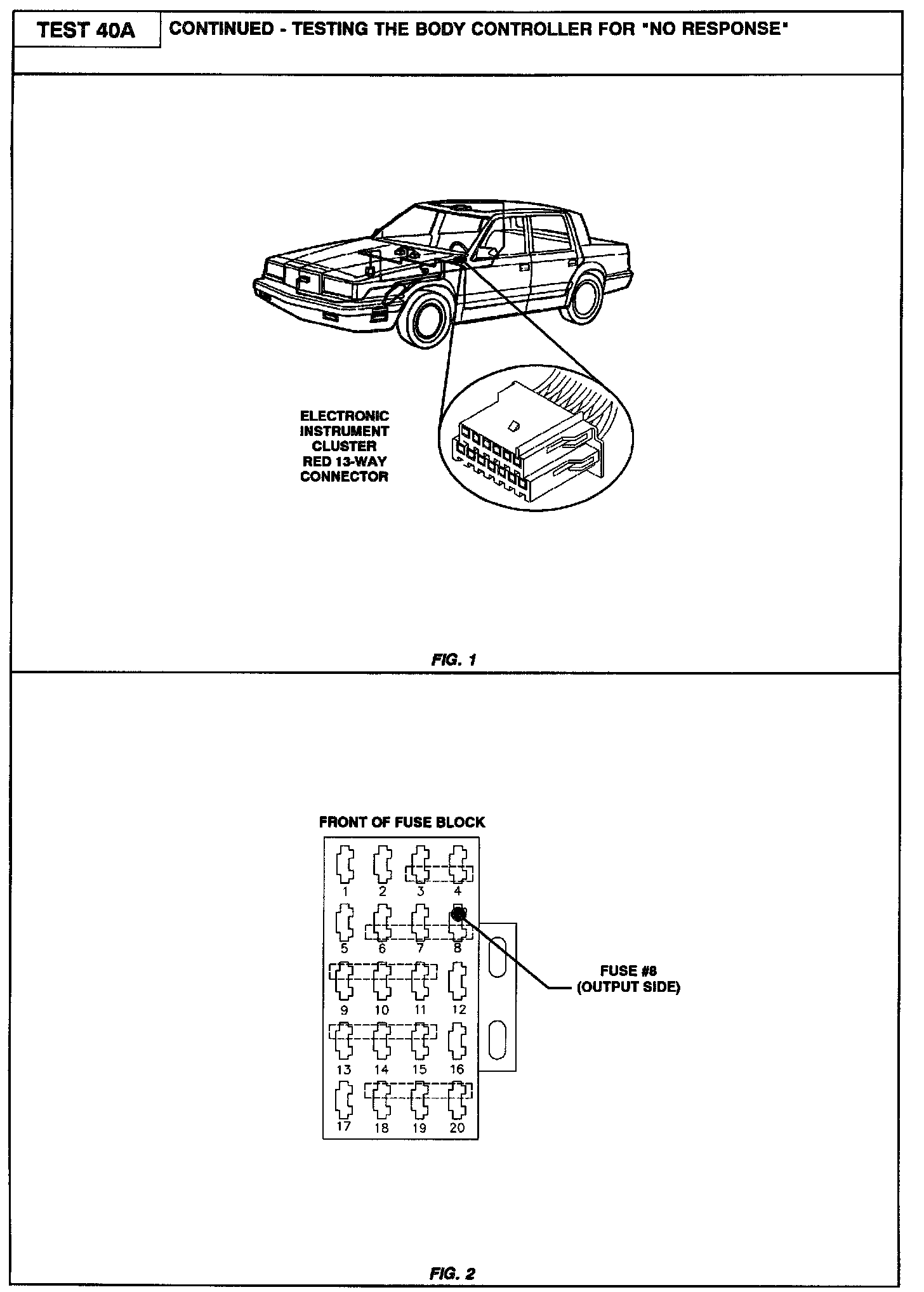

Part 1 of 3

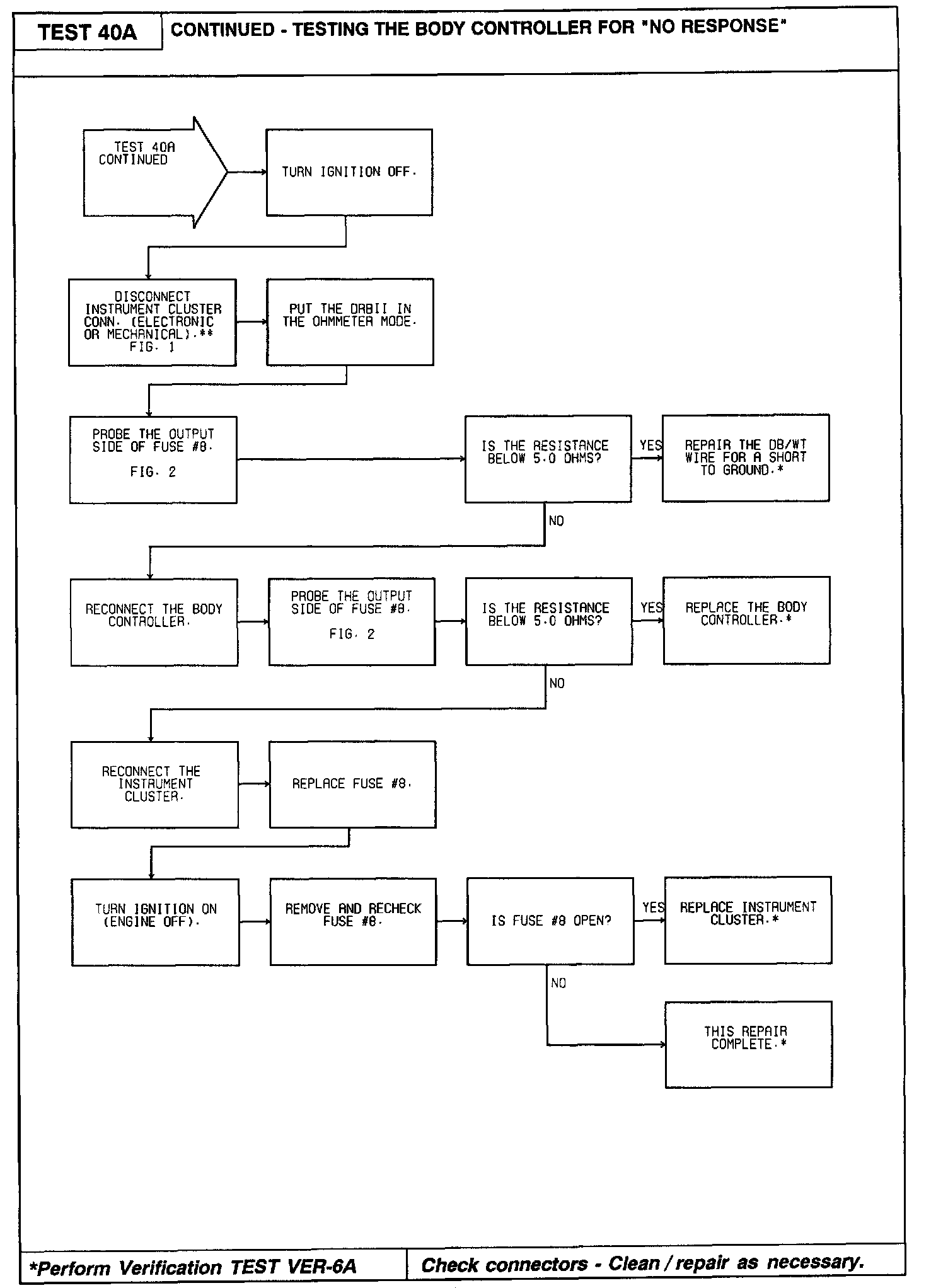

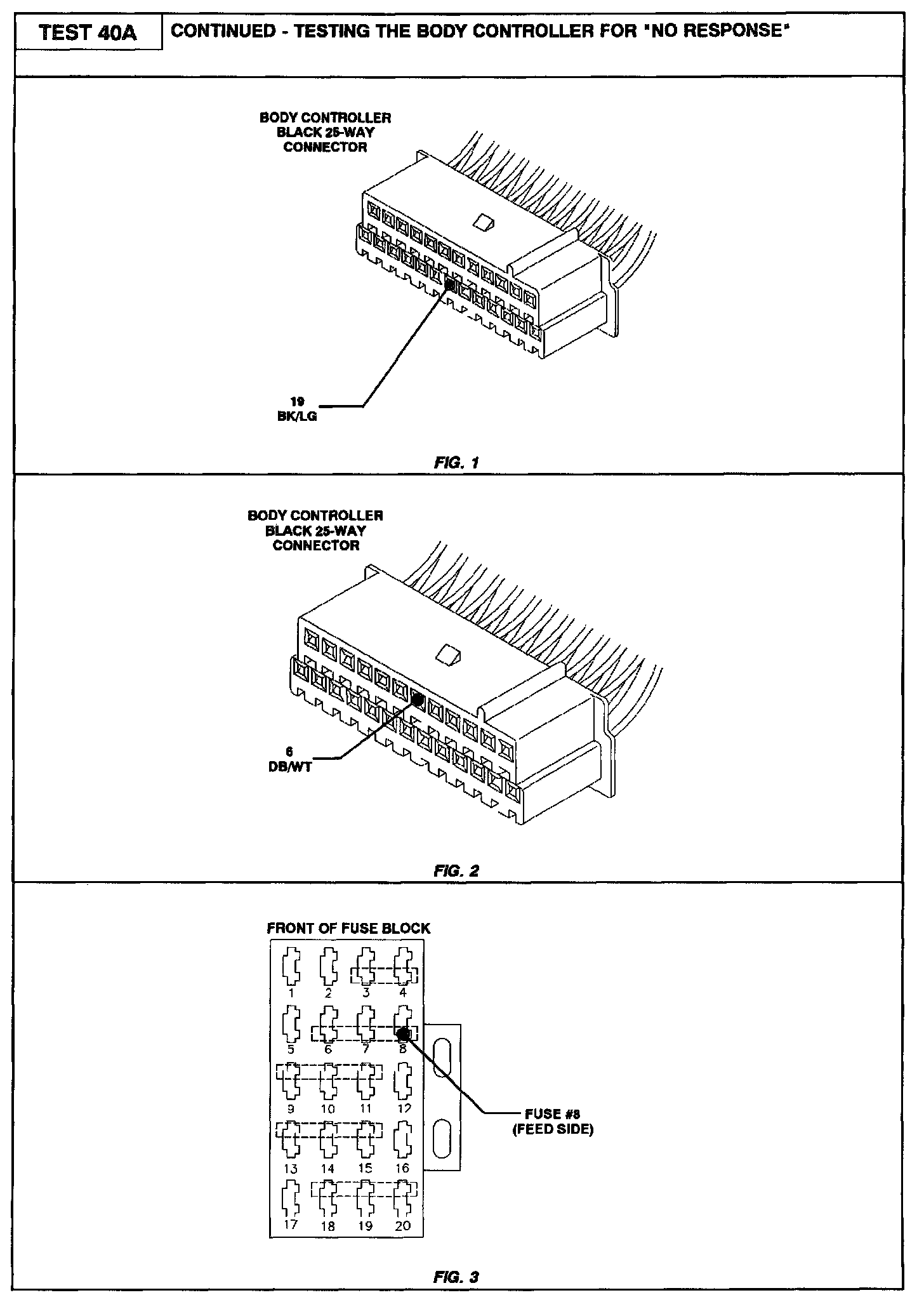

Part 2 of 3








Part 3 of 3
