Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 39A Testing the Engine Node For No Response

39A Testing the Engine Node For No Response

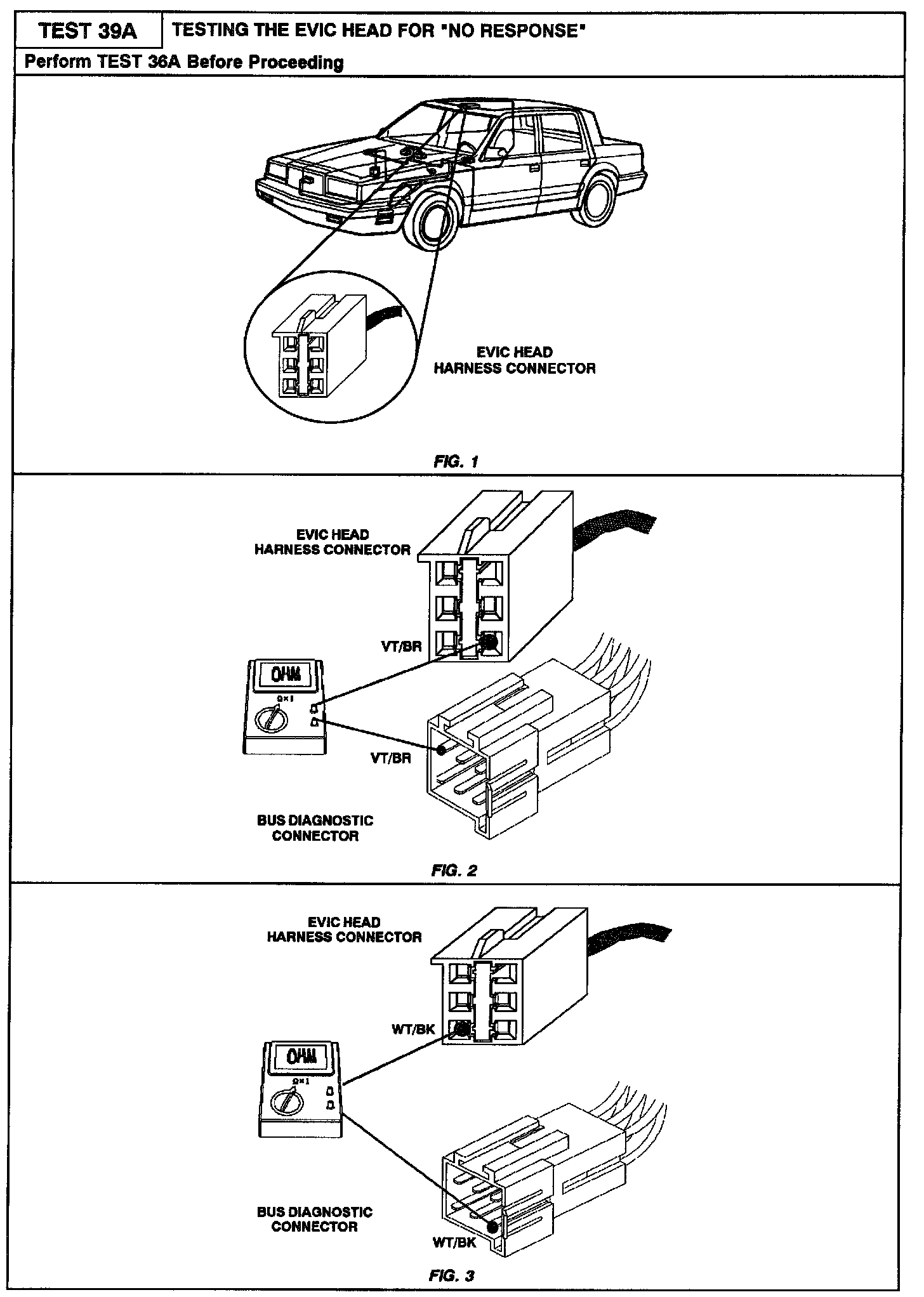

Part 1 of 4

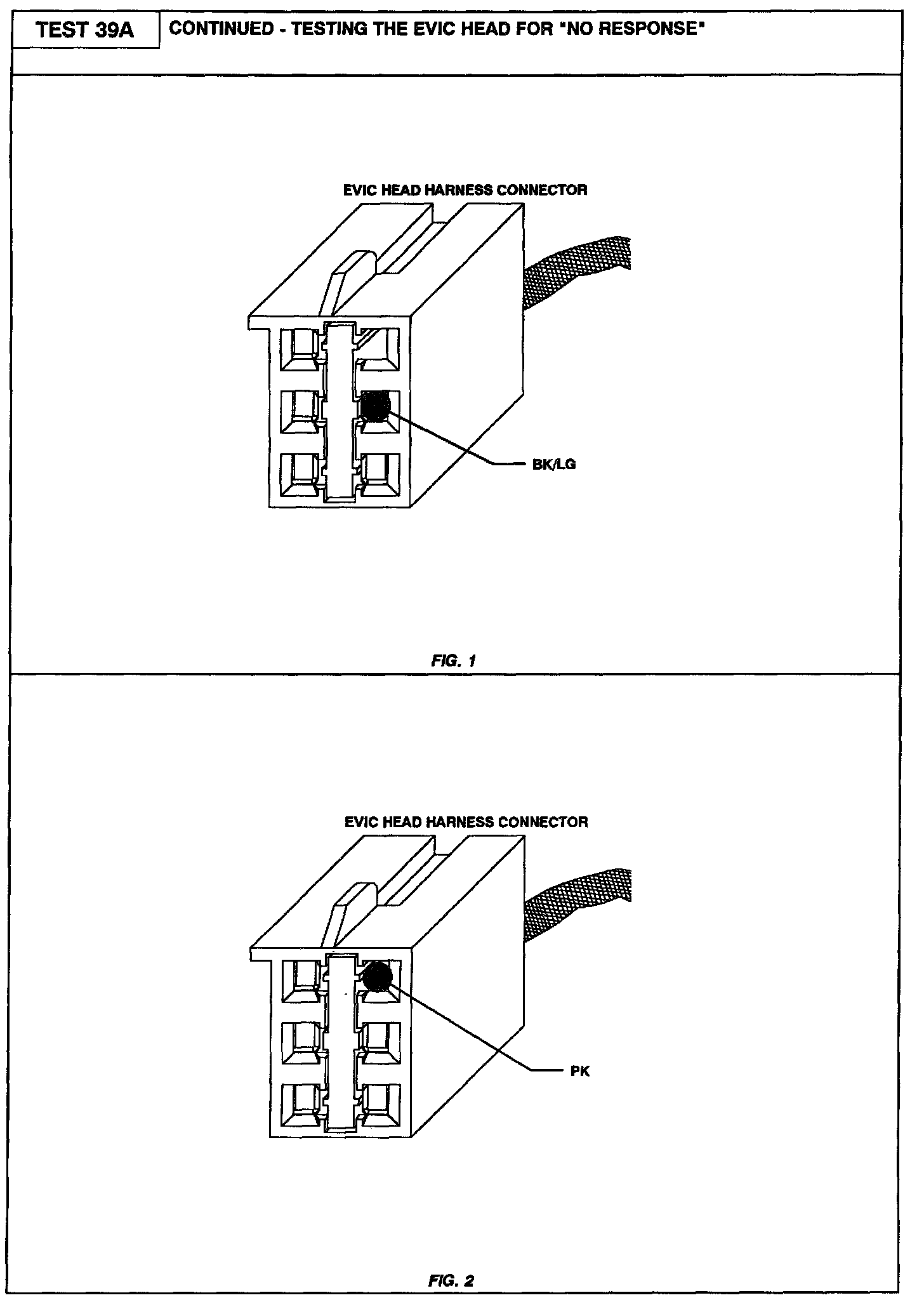

Part 2 of 4

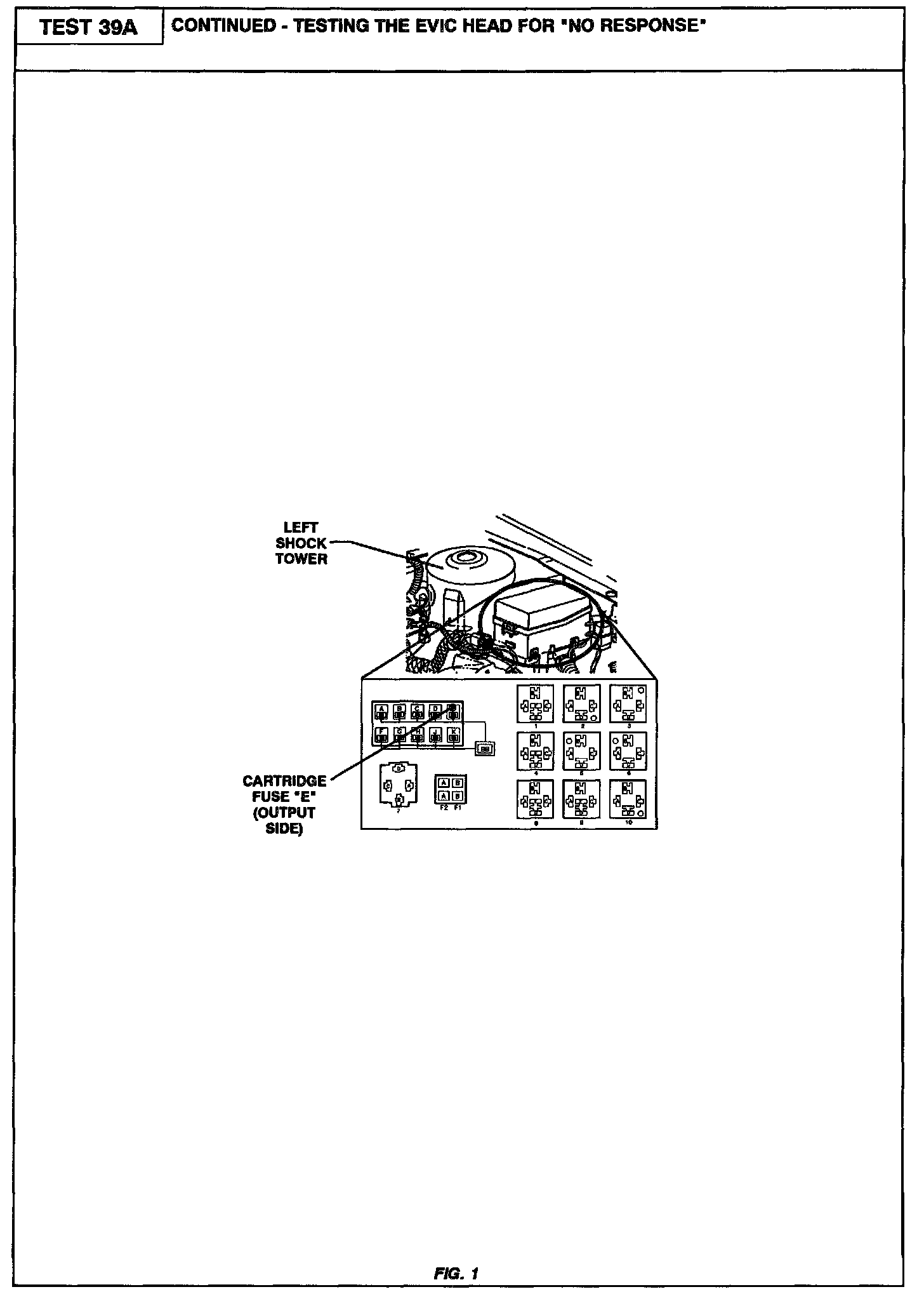

Part 3 of 4

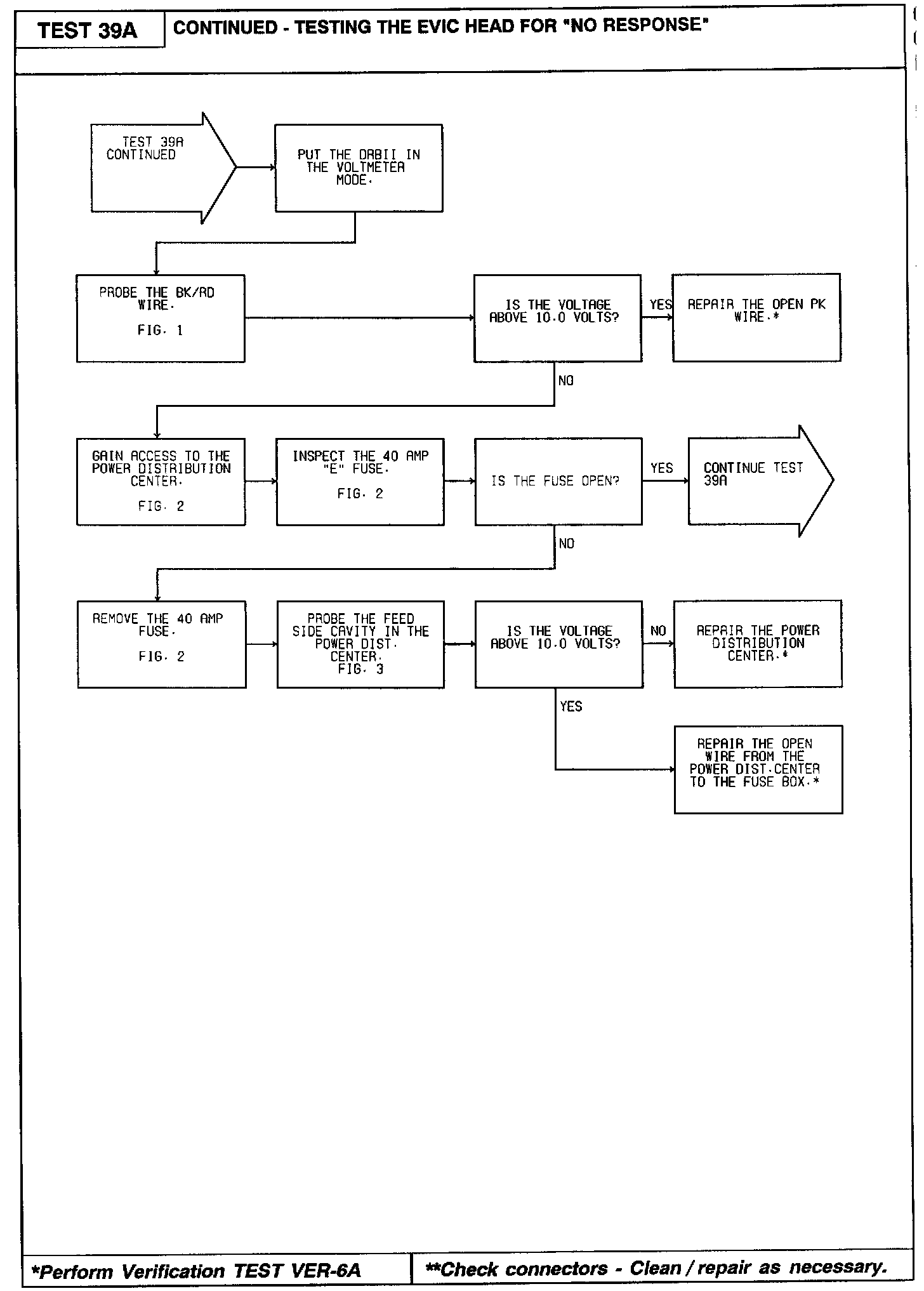

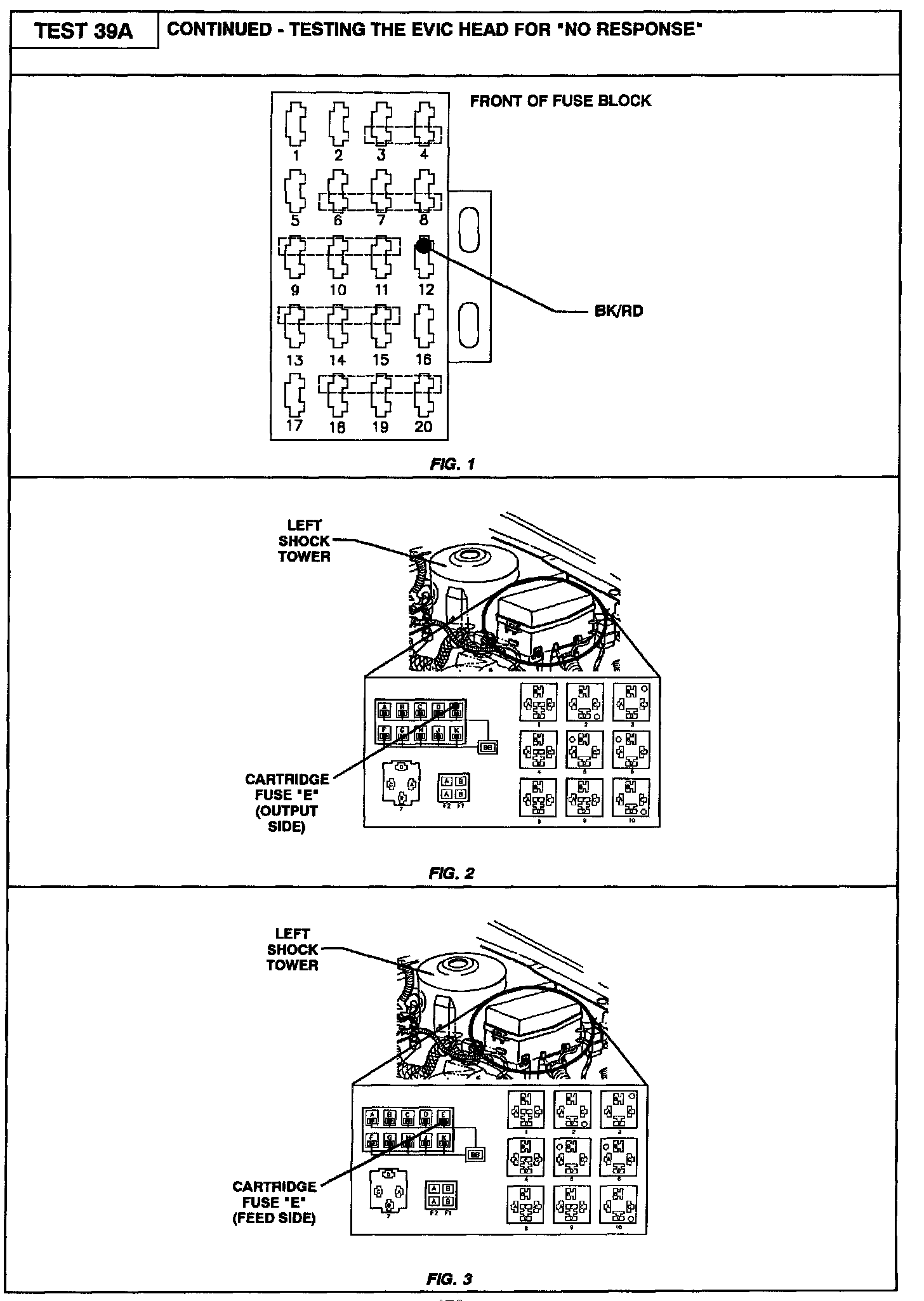

Part 4 of 4
