Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 37C Testing the Elec Instrument For No Response

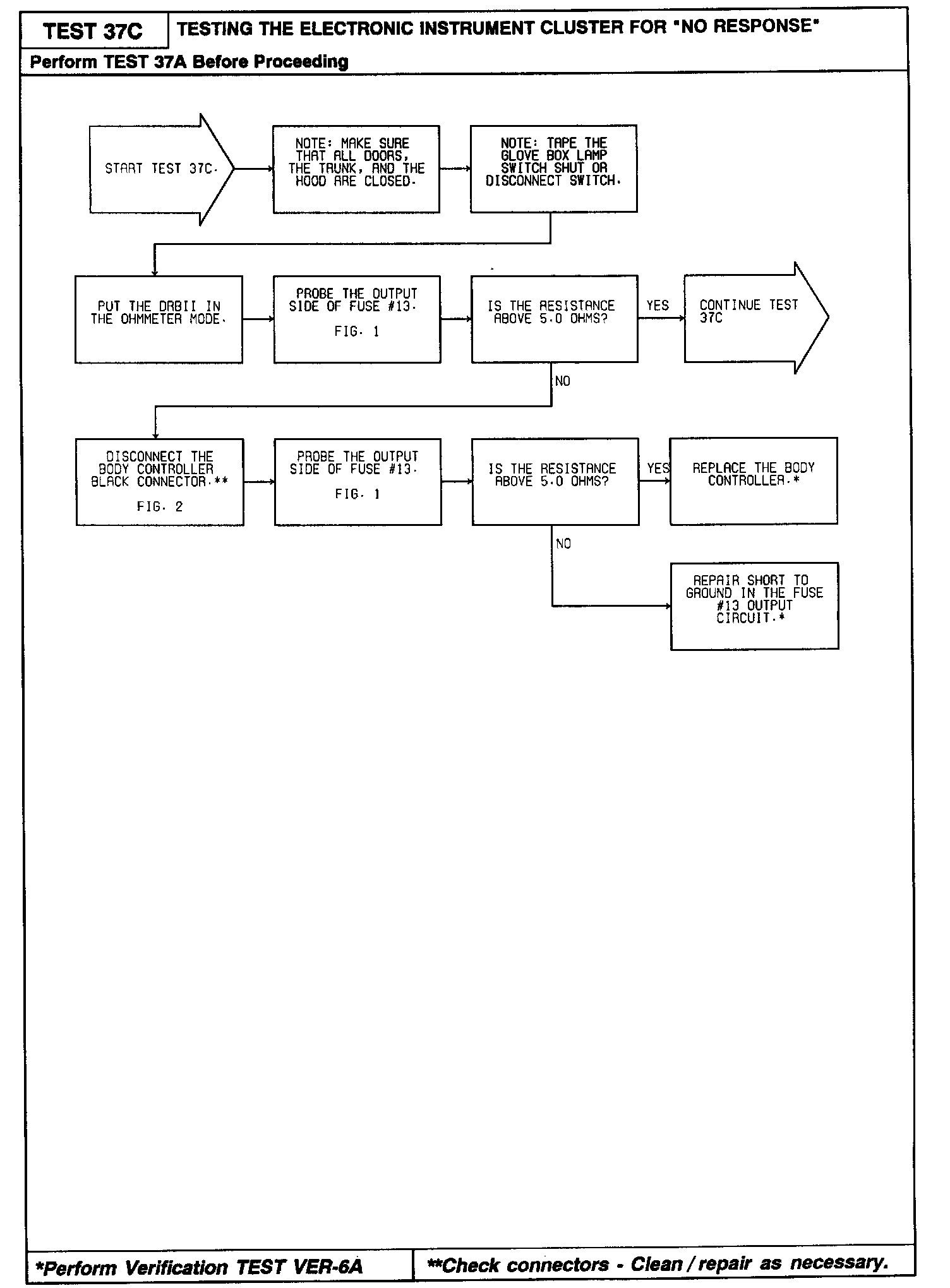

37C Testing the Elec Instrument For No Response

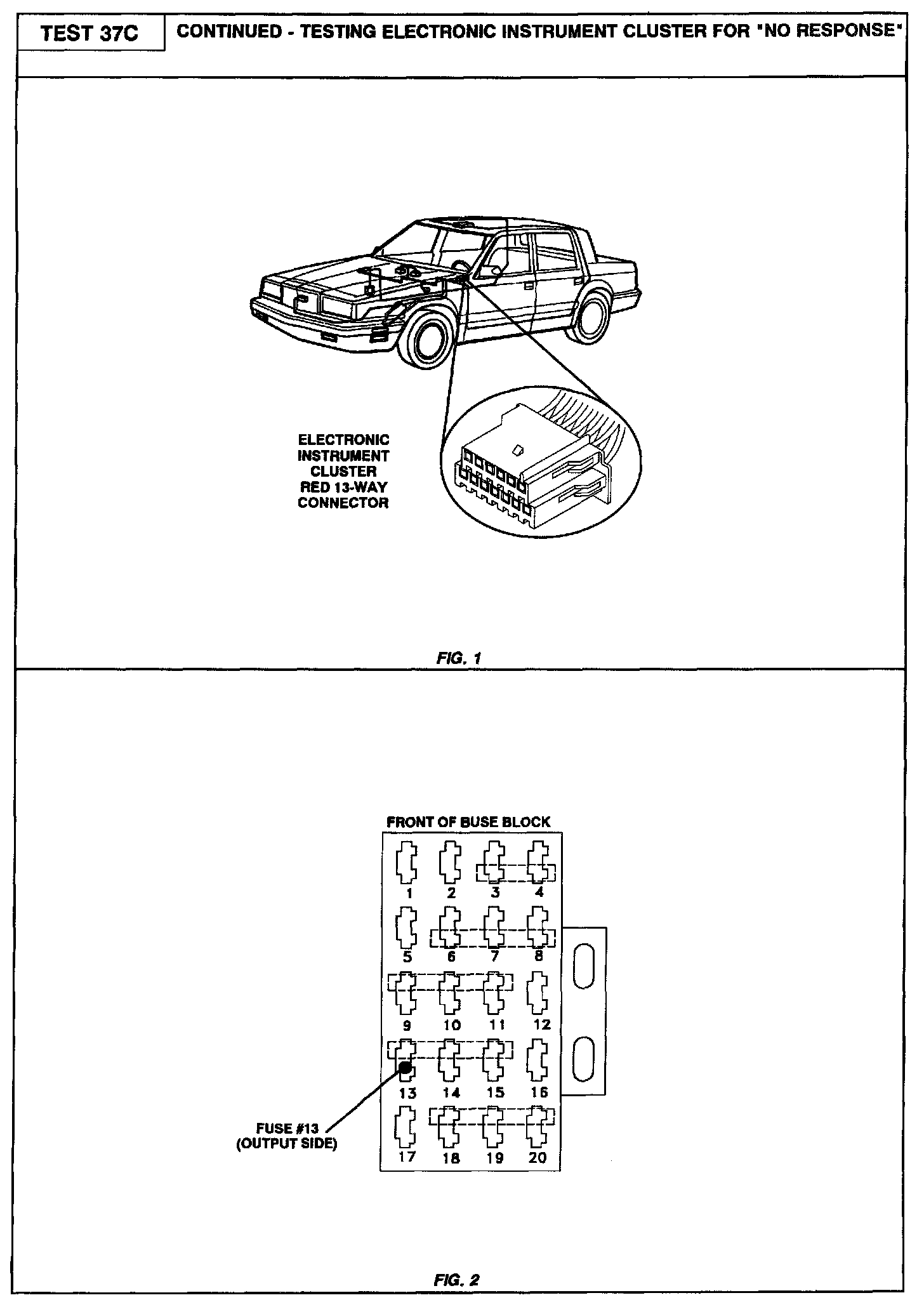

Part 1 of 2









Part 2 of 2
