37A Testing the Elec Instrument For No Response

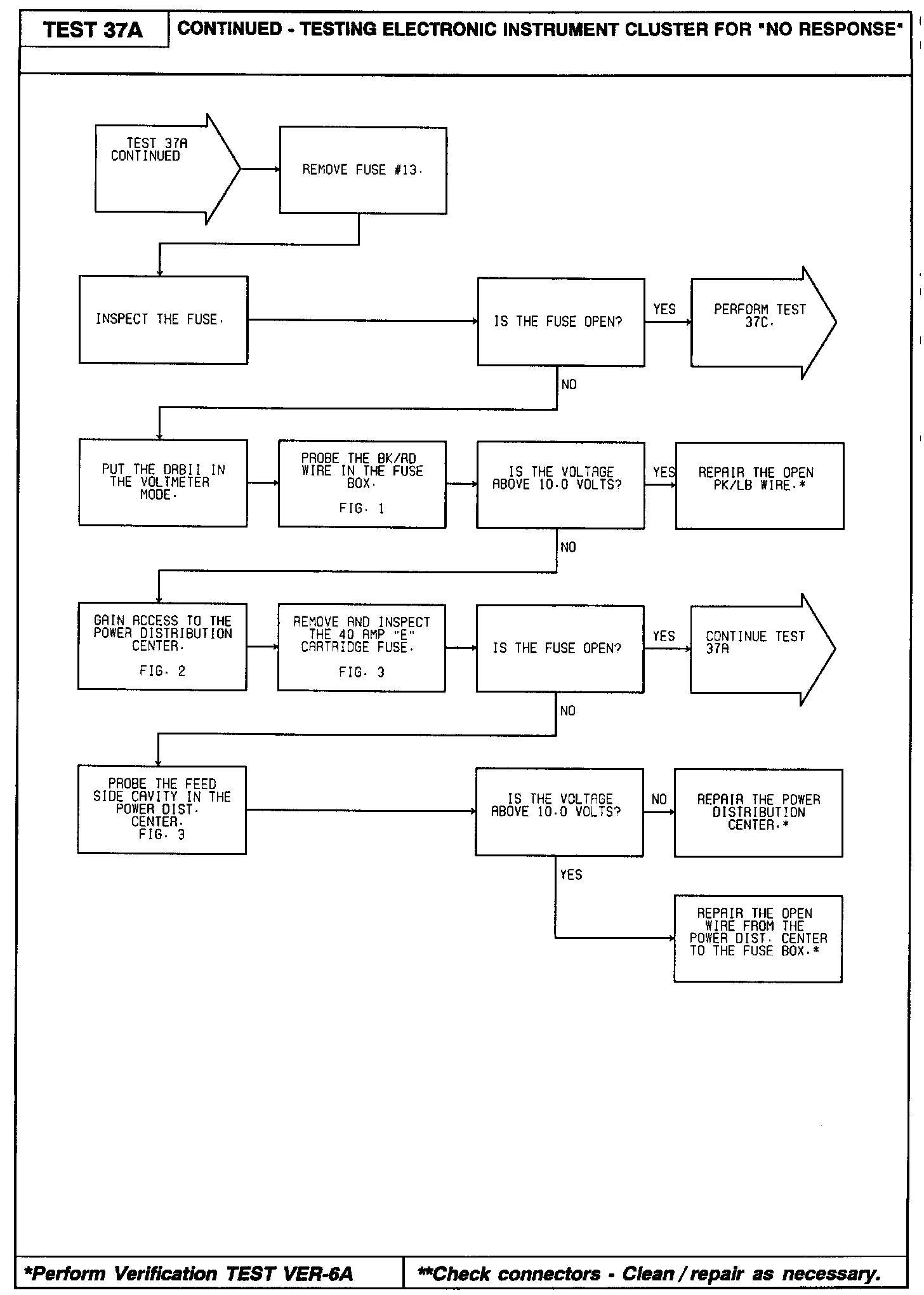

Part 1 of 4

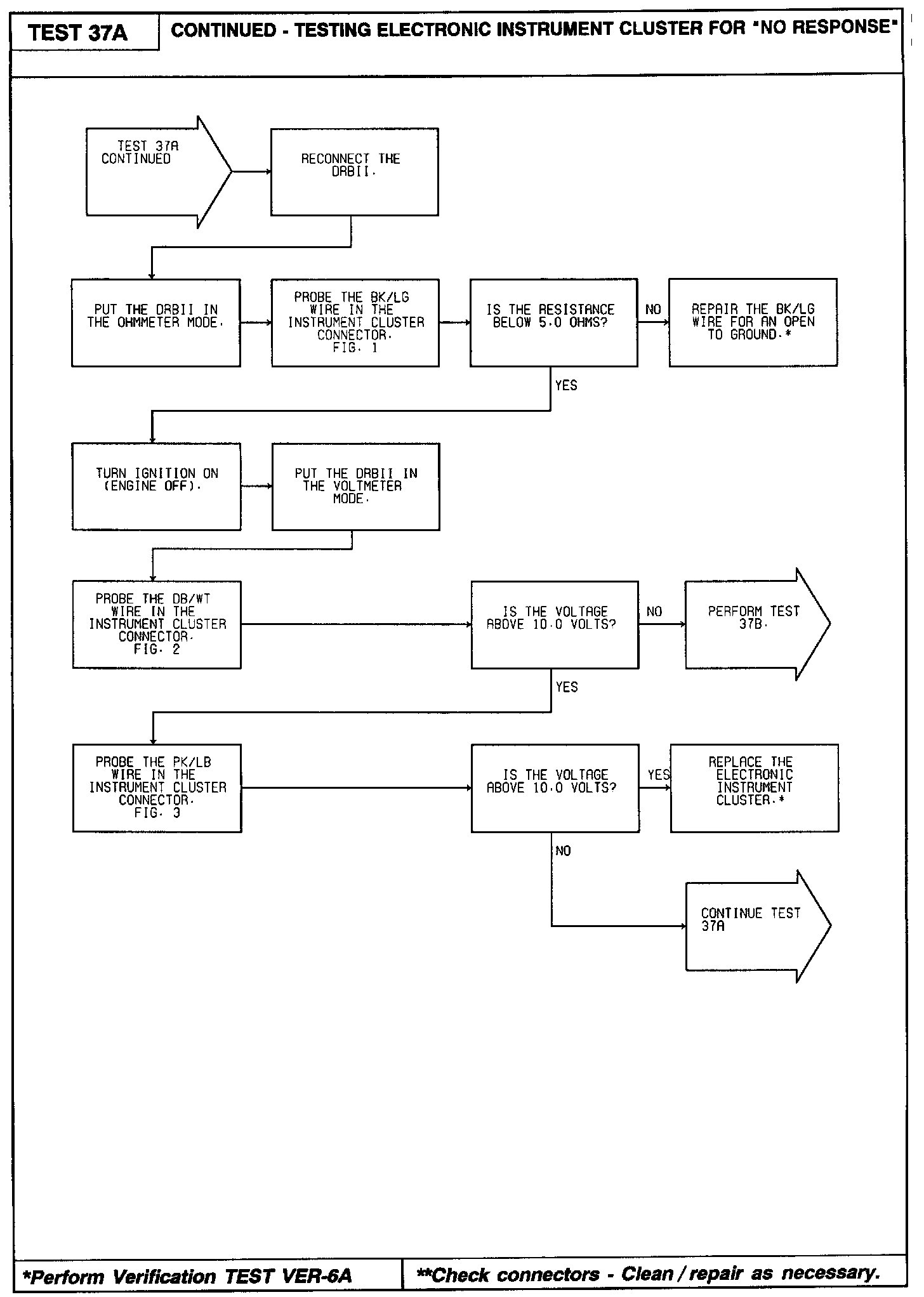

Part 2 of 4

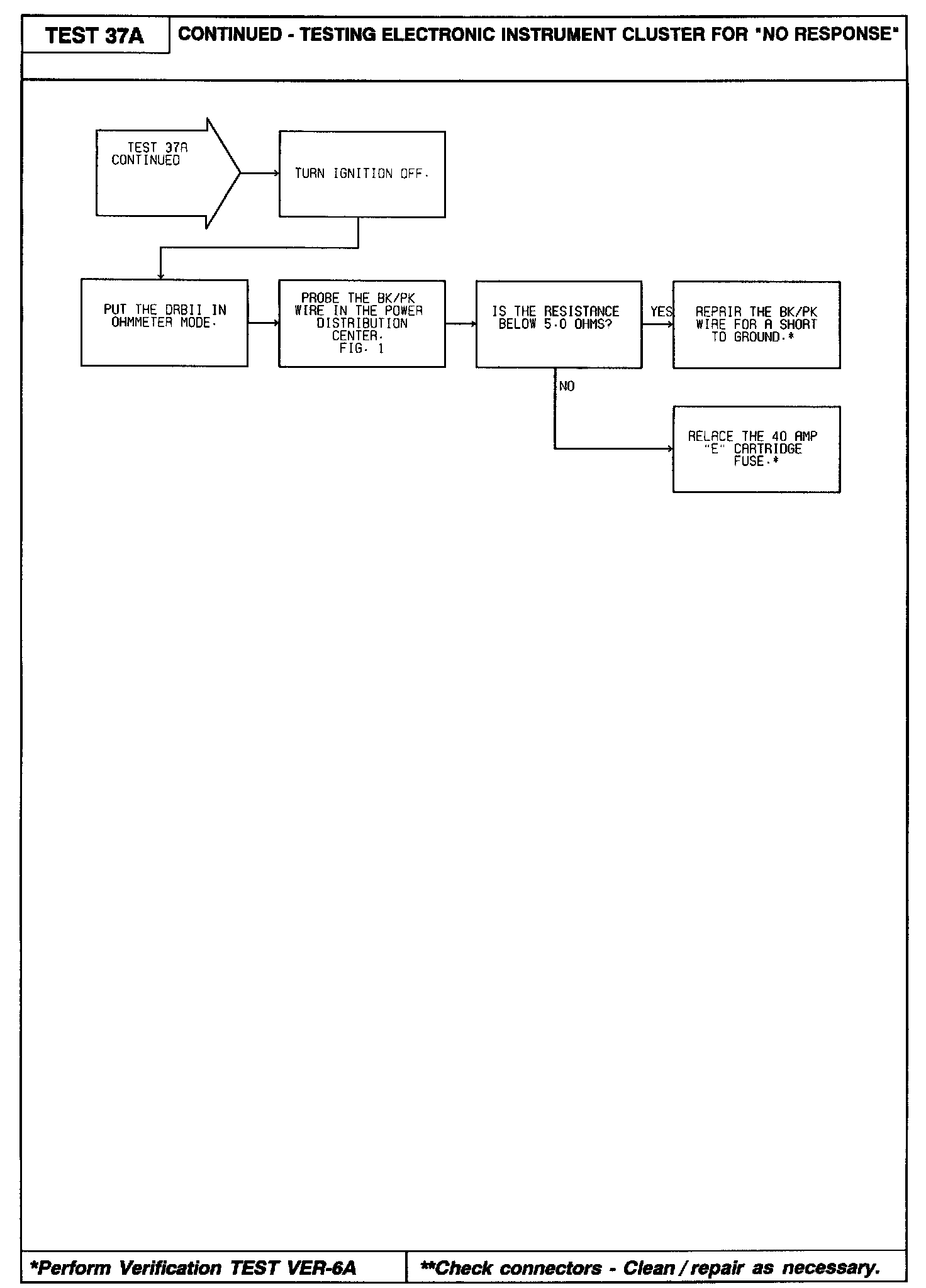

Part 3 of 4








Part 4 of 4
