Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 34A Testing For Bus(+) & Bus(-) Open on the Bus

34A Testing For Bus(+) & Bus(-) Open on the Bus

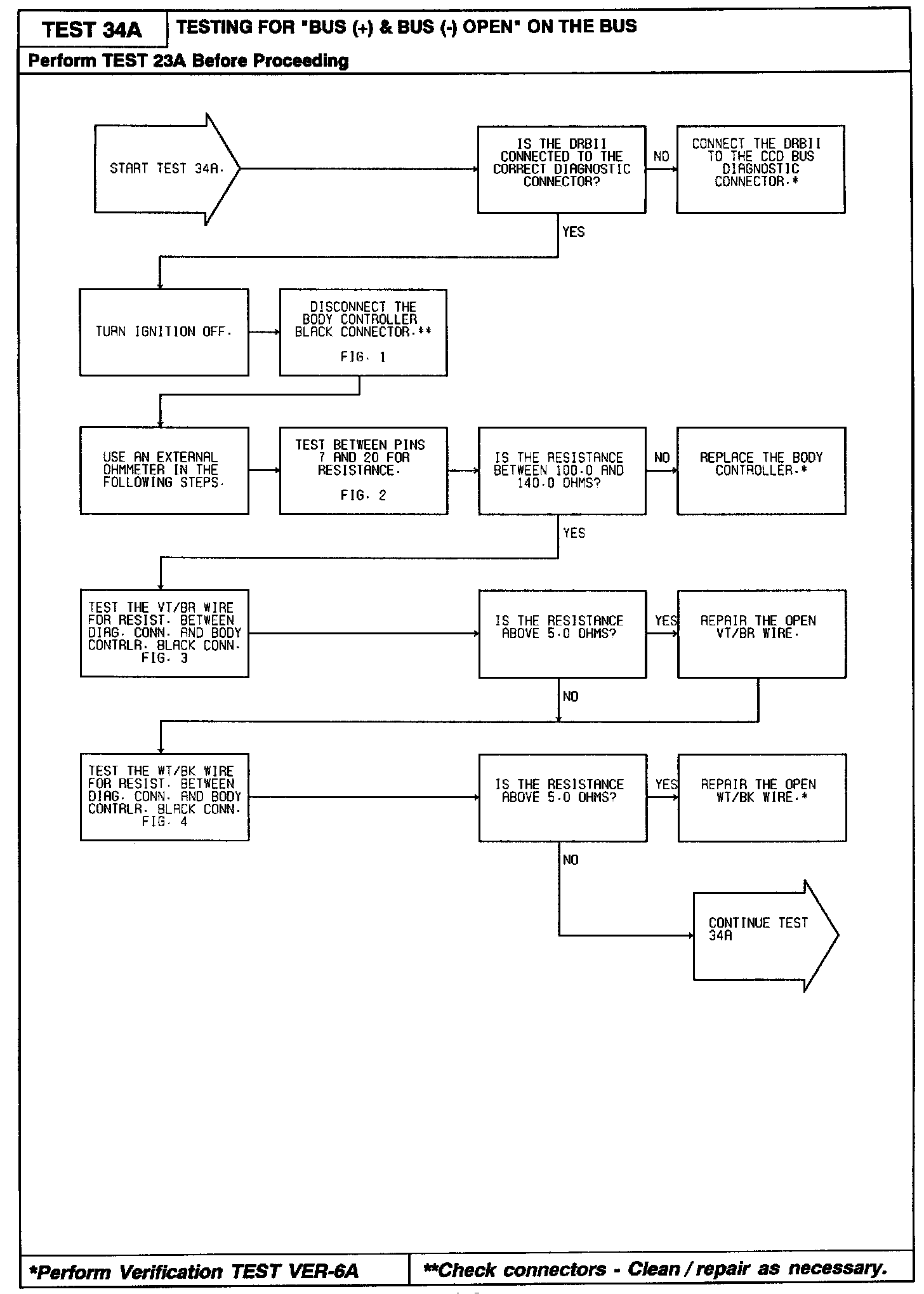

Part 1 of 2

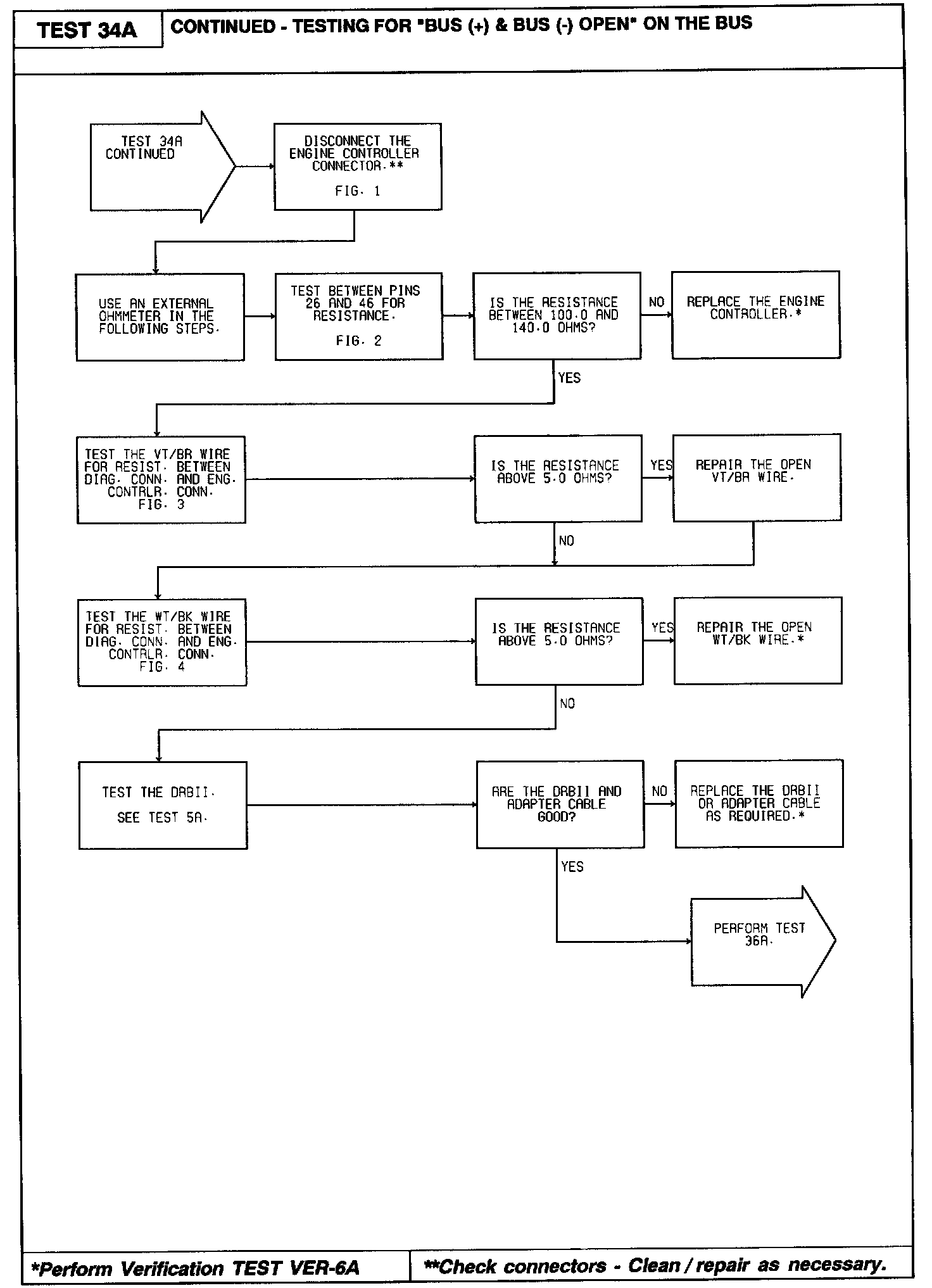

Part 2 of 2
