Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 29A Testing For Bus Bias Level Too Low on the Bus

29A Testing For Bus Bias Level Too Low on the Bus

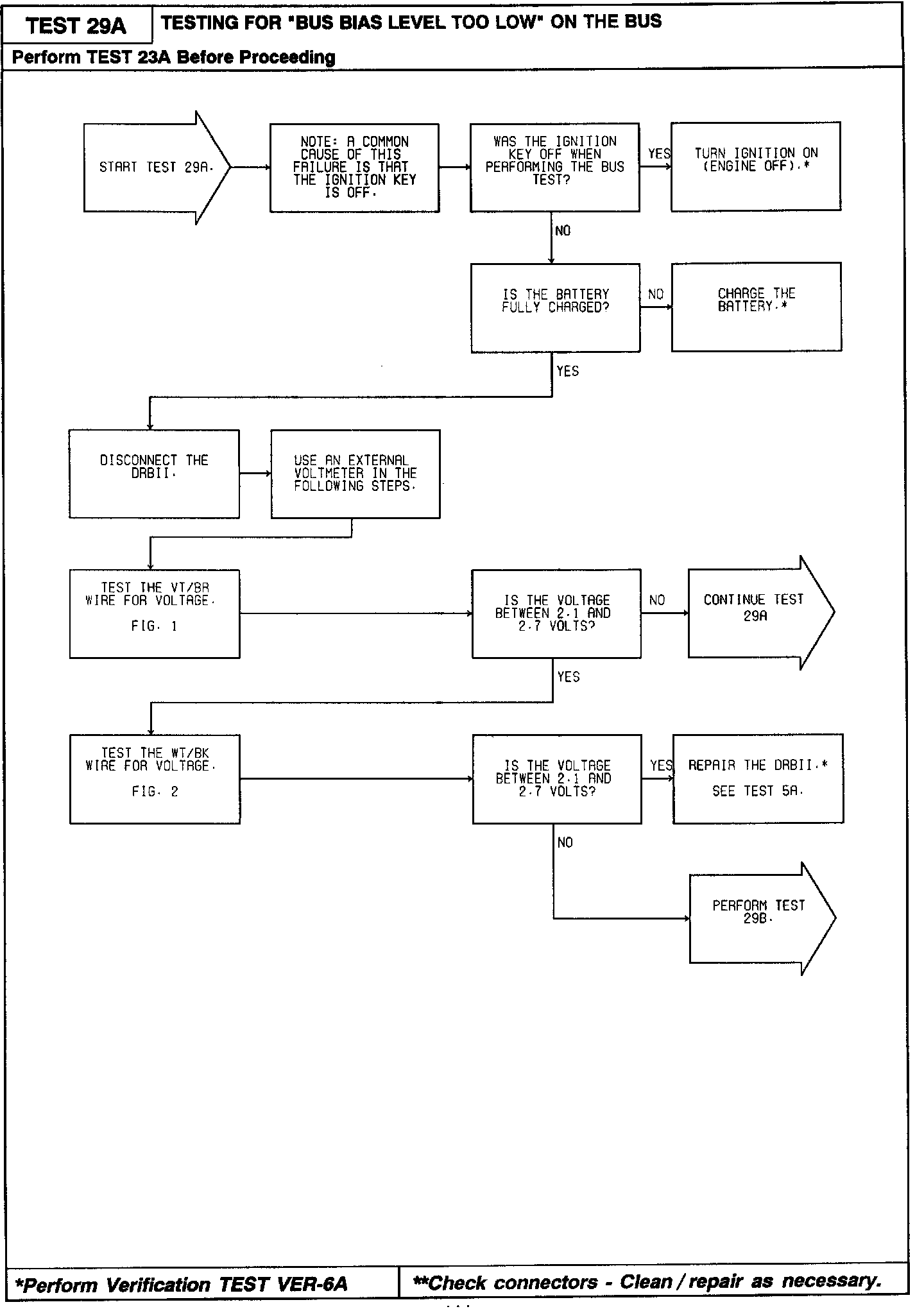

Part 1 of 3

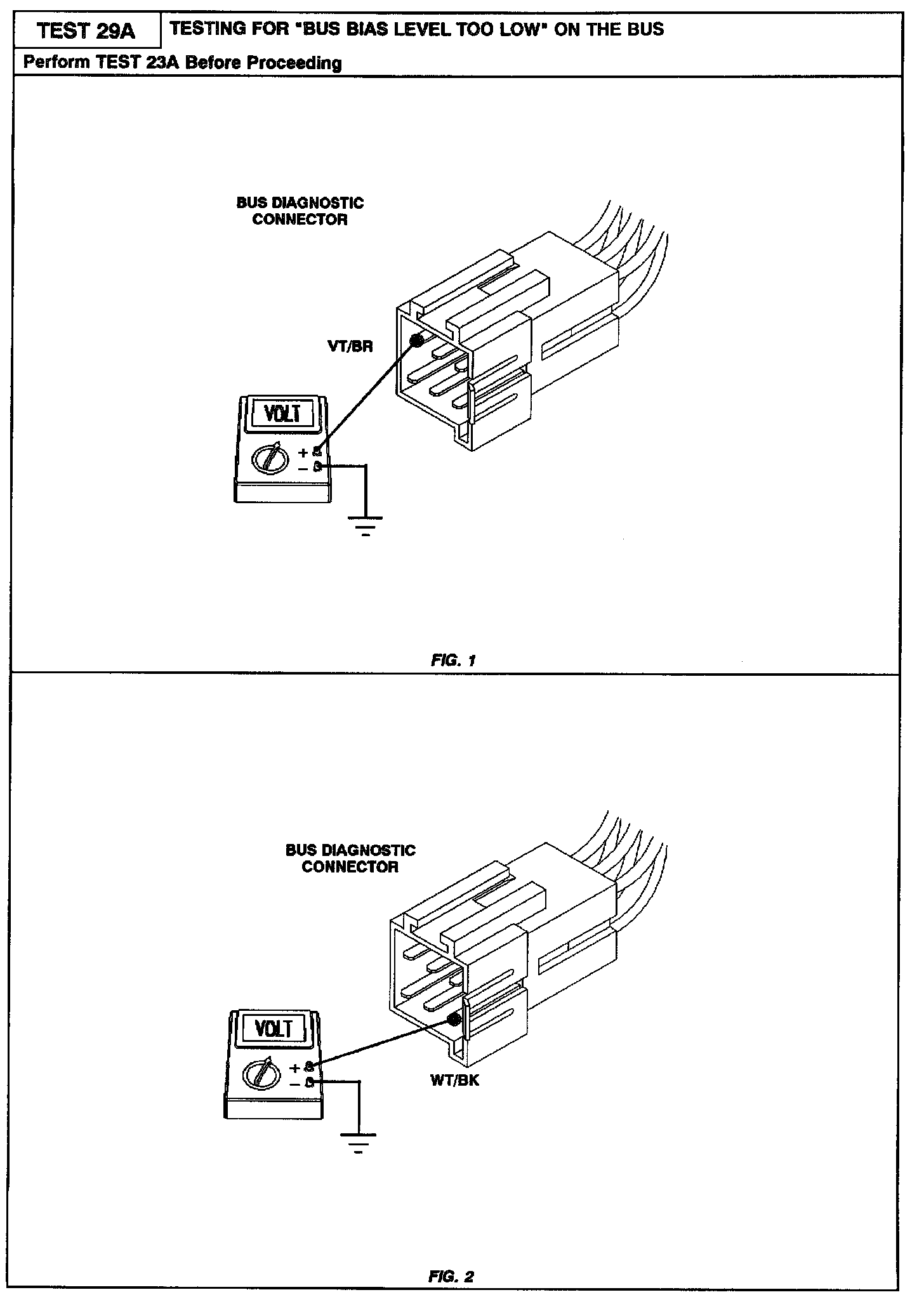

Part 2 of 3

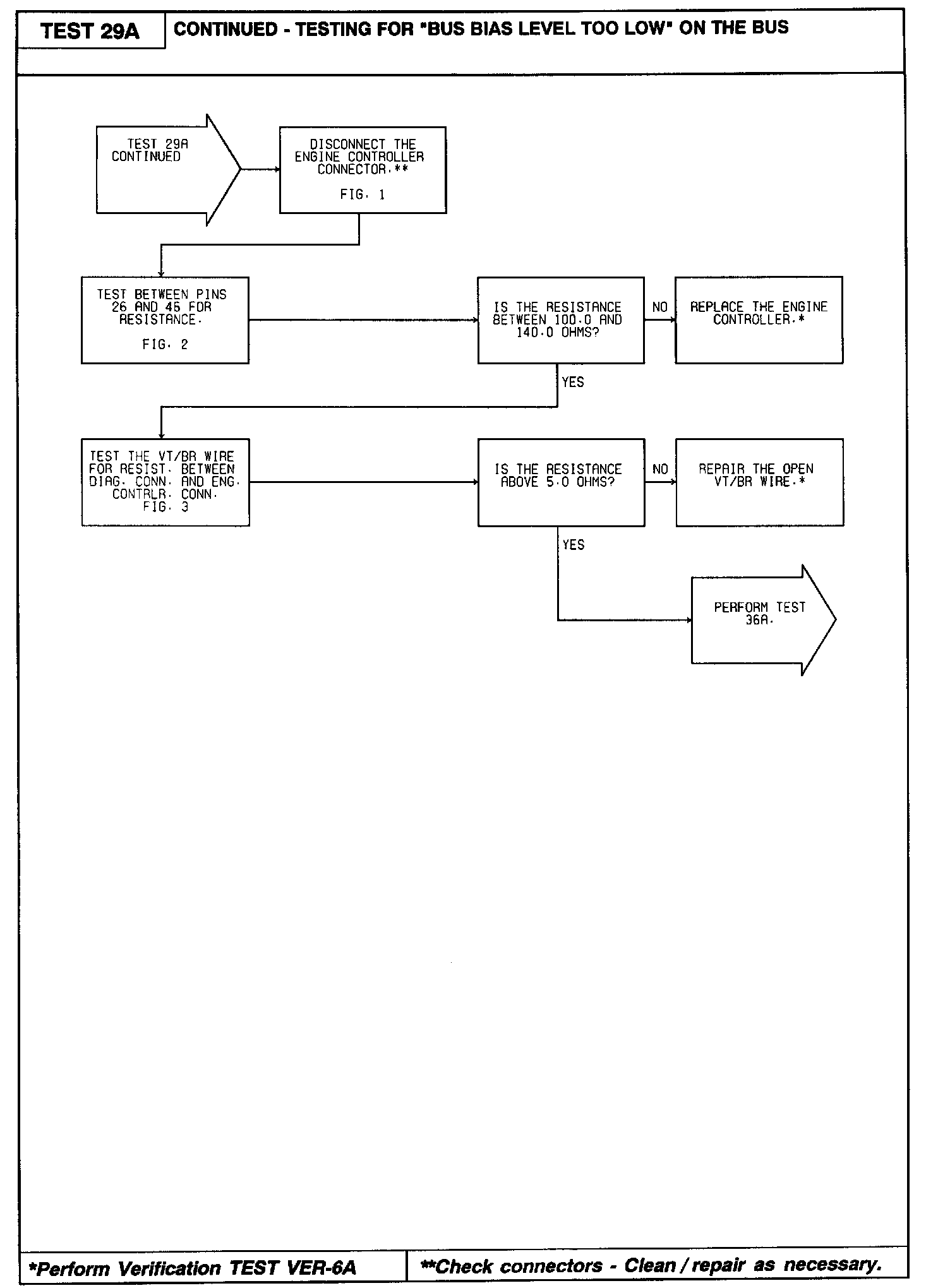

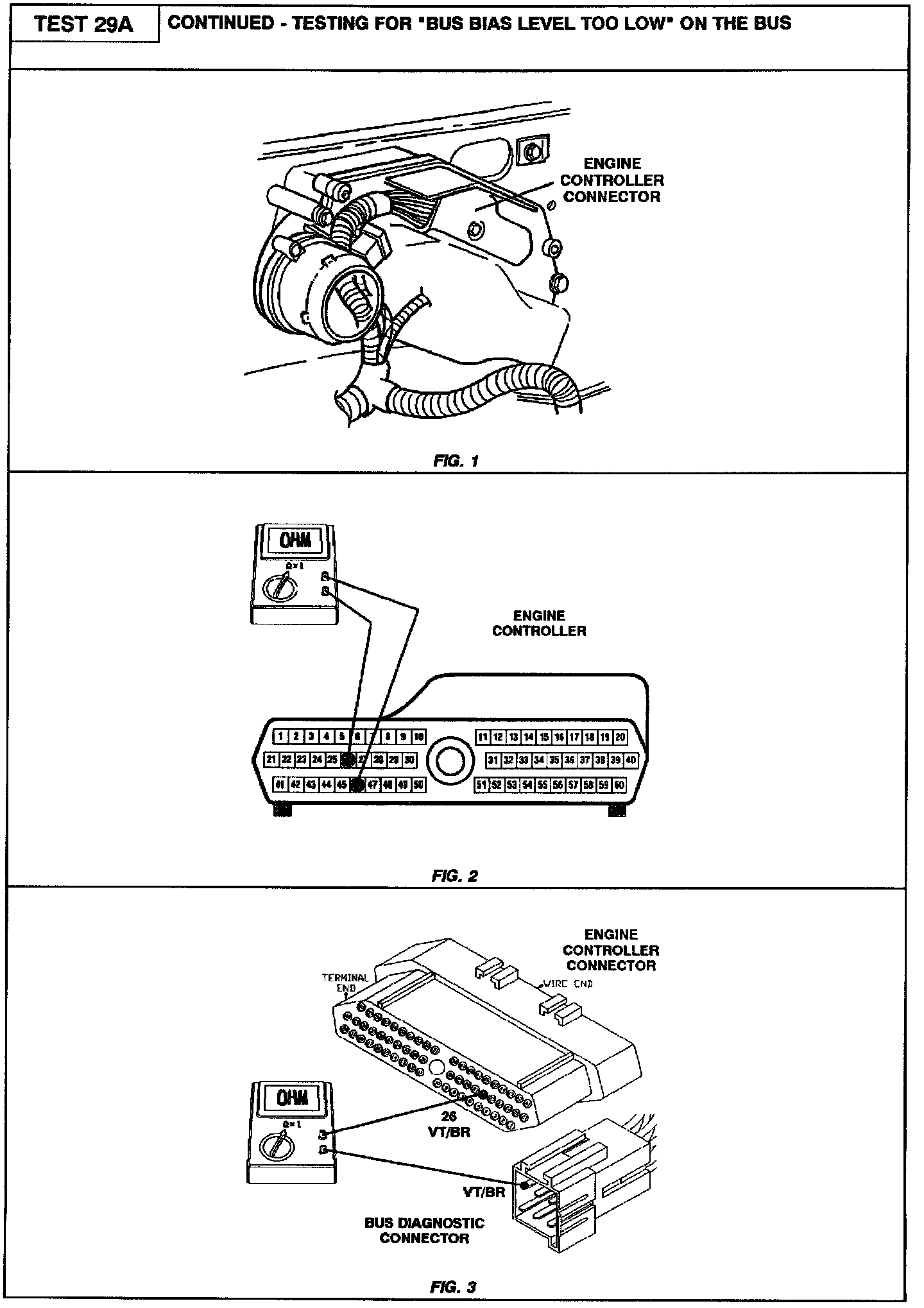

Part 3 of 3
