Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 25A Testing For Short to 5-Volts on the Bus

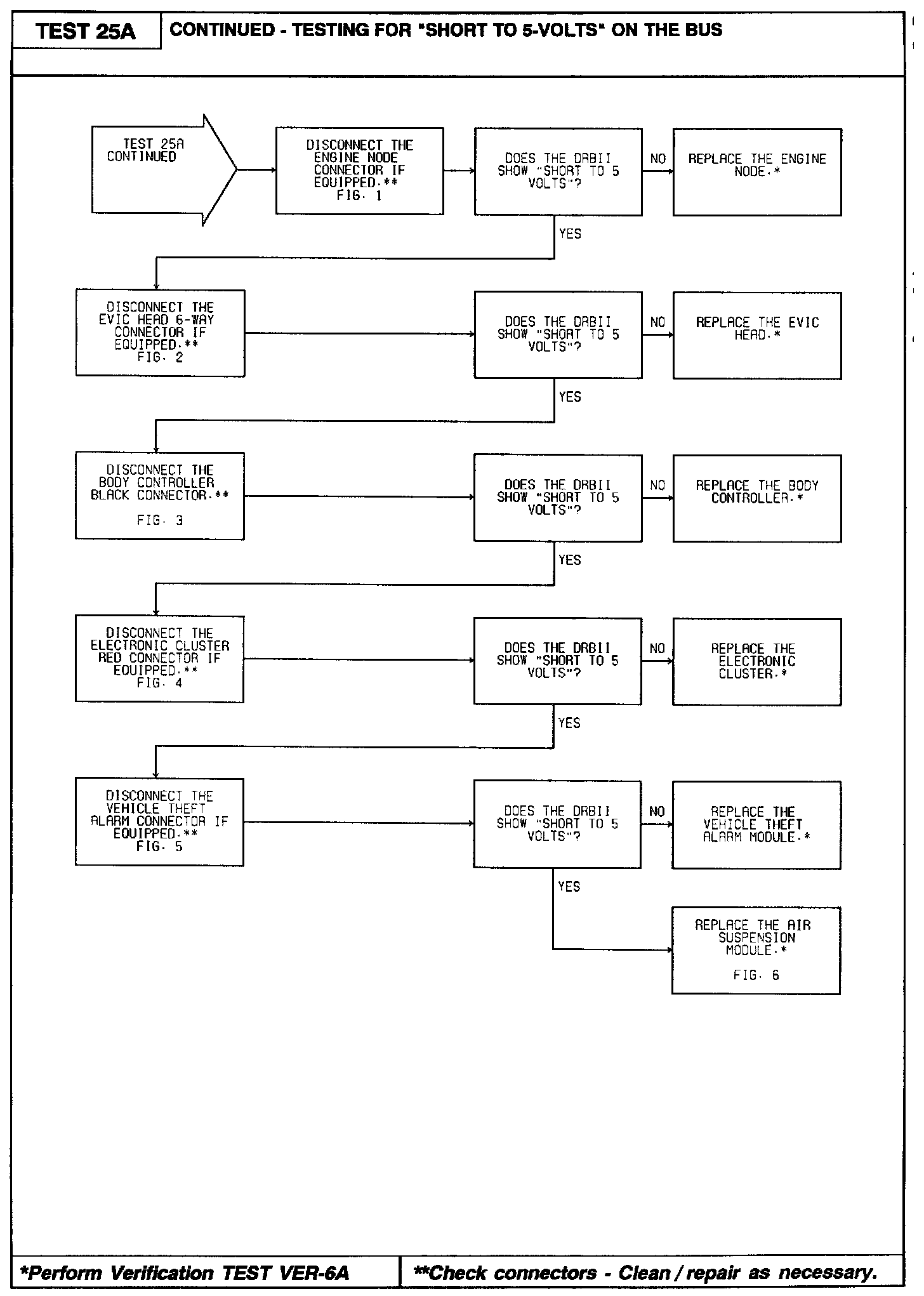

25A Testing For Short to 5-Volts on the Bus







Part 1 of 2







Part 2 of 2
