Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> 1 Inspect Load Level Connector In Trunk

1 Inspect Load Level Connector In Trunk

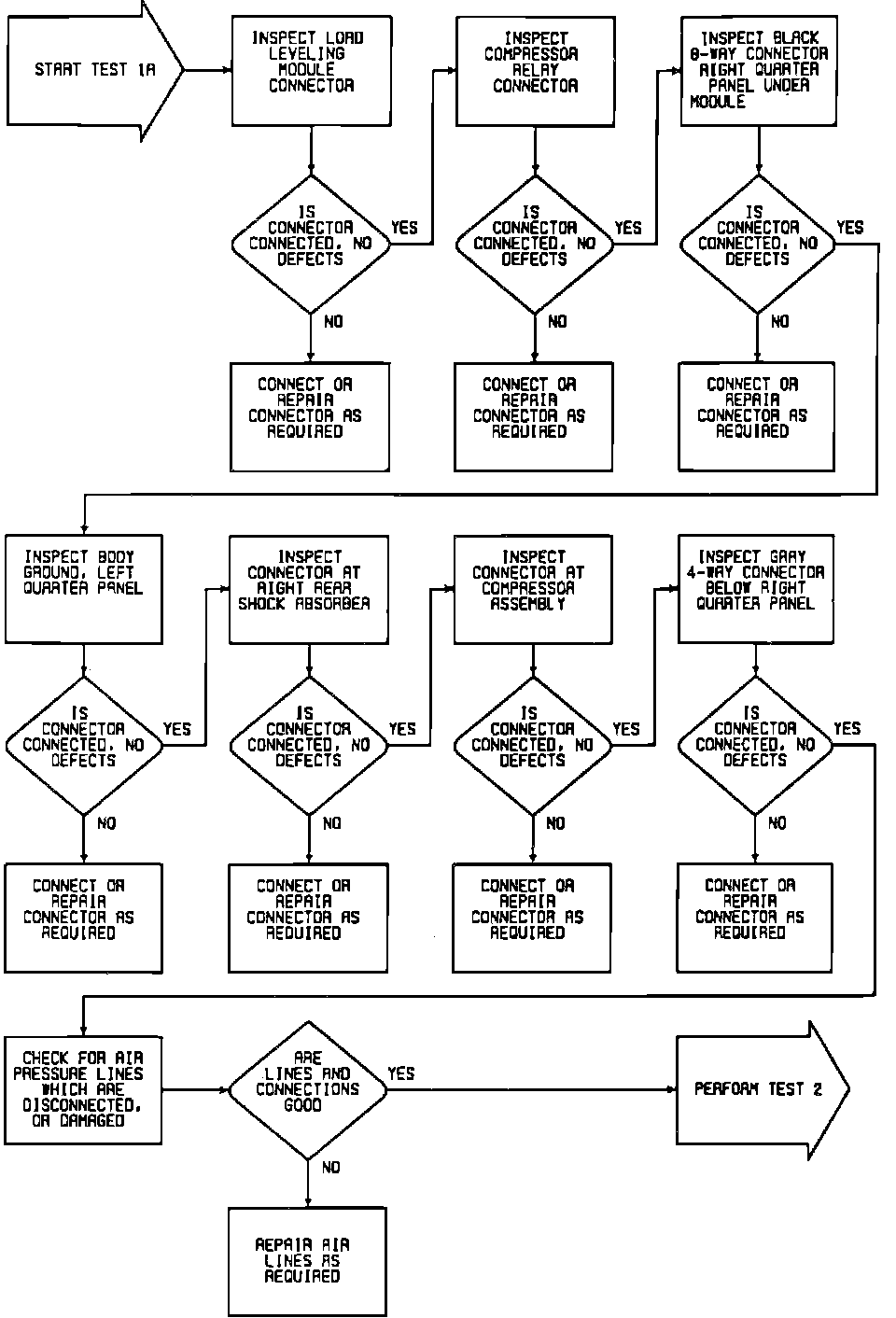

Fig. 8 Test 1, Visual Inspection Load Leveling Connections In Trunk:
