Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-2B Speed Control Vacuum Solenoid Control Test

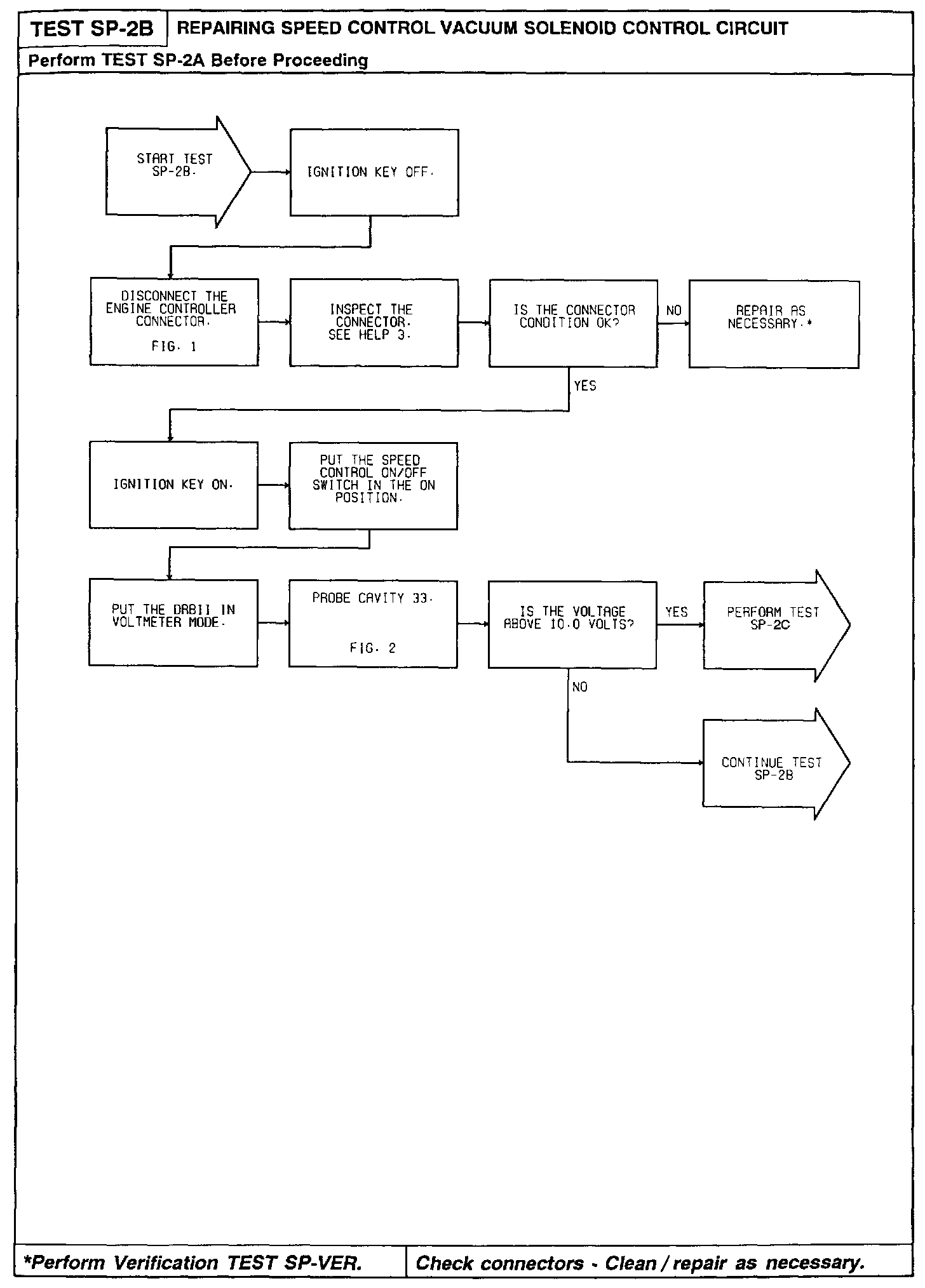

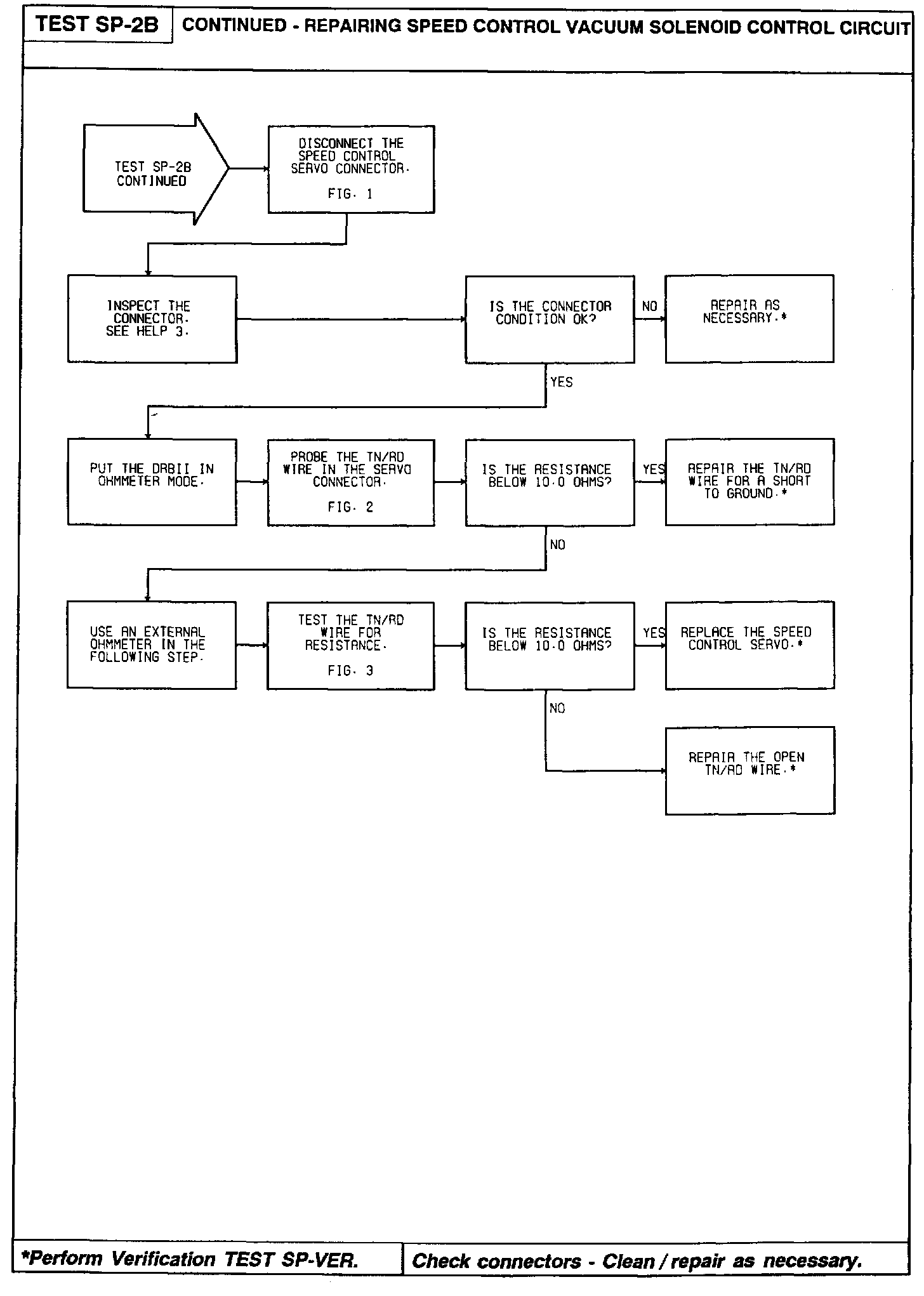

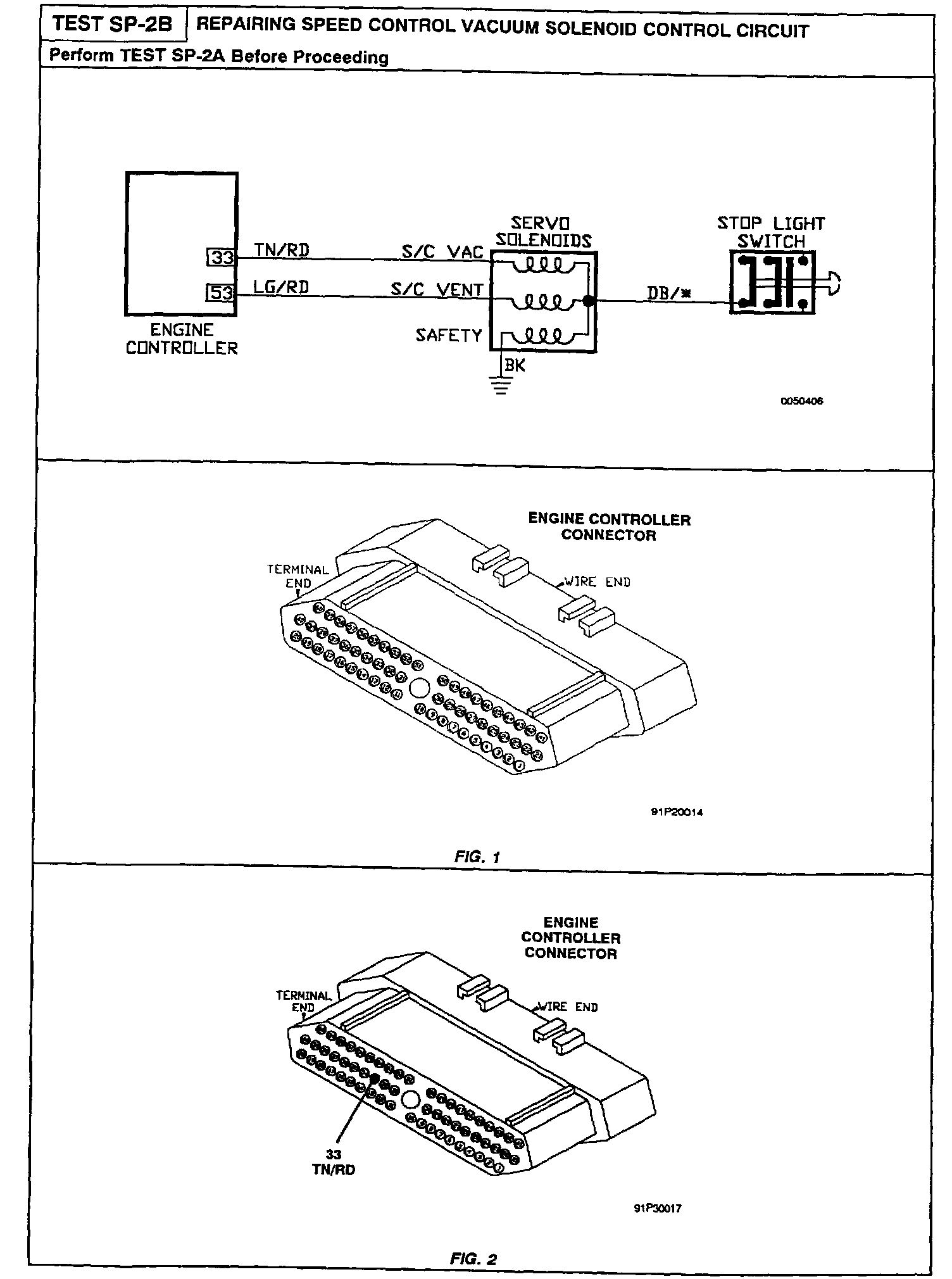

SP-2B Speed Control Vacuum Solenoid Control Test
