Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> EVIC Panel Monitor >> 58A Faulty 'Turn Signal on' Circuit

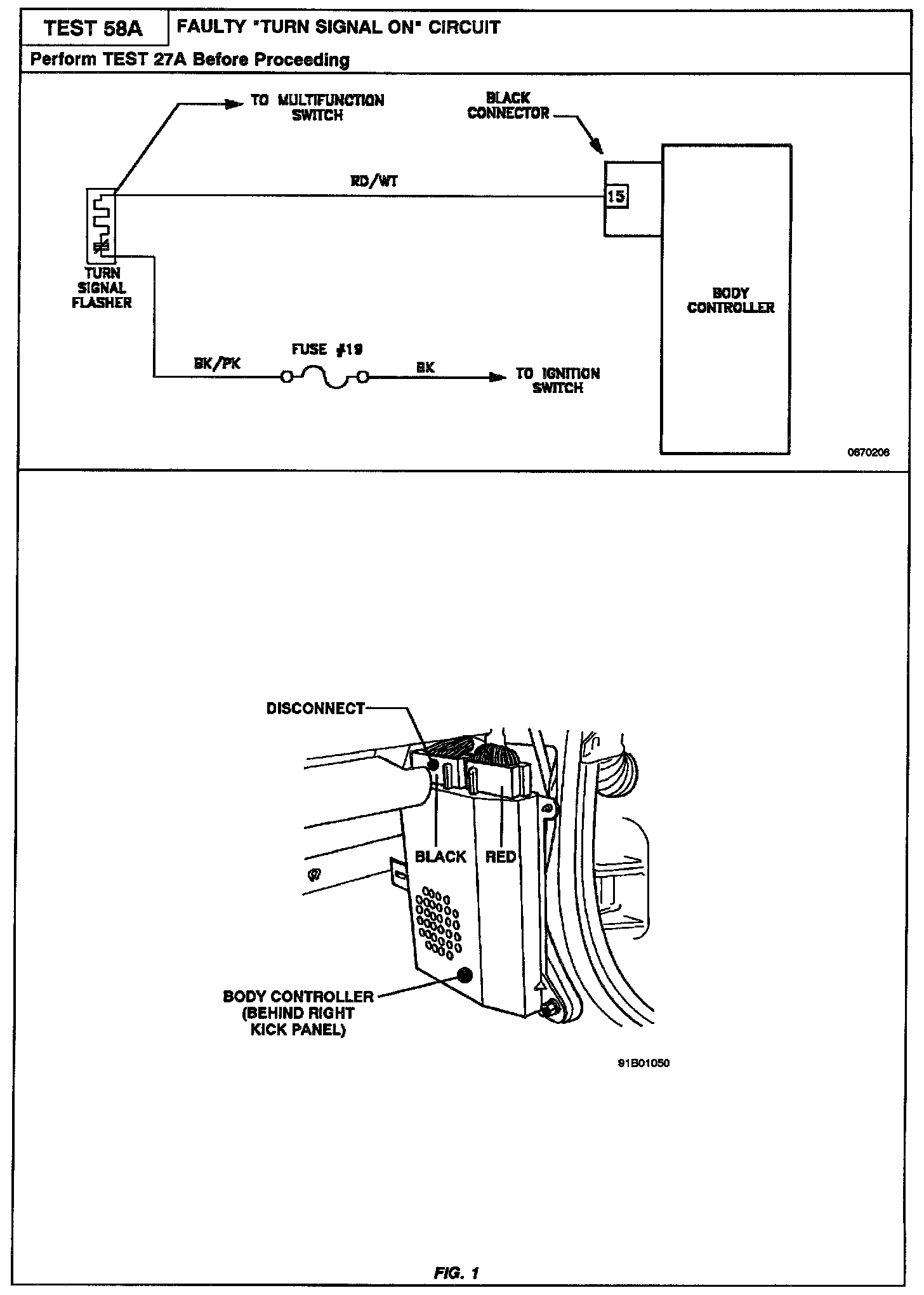

58A Faulty 'Turn Signal on' Circuit

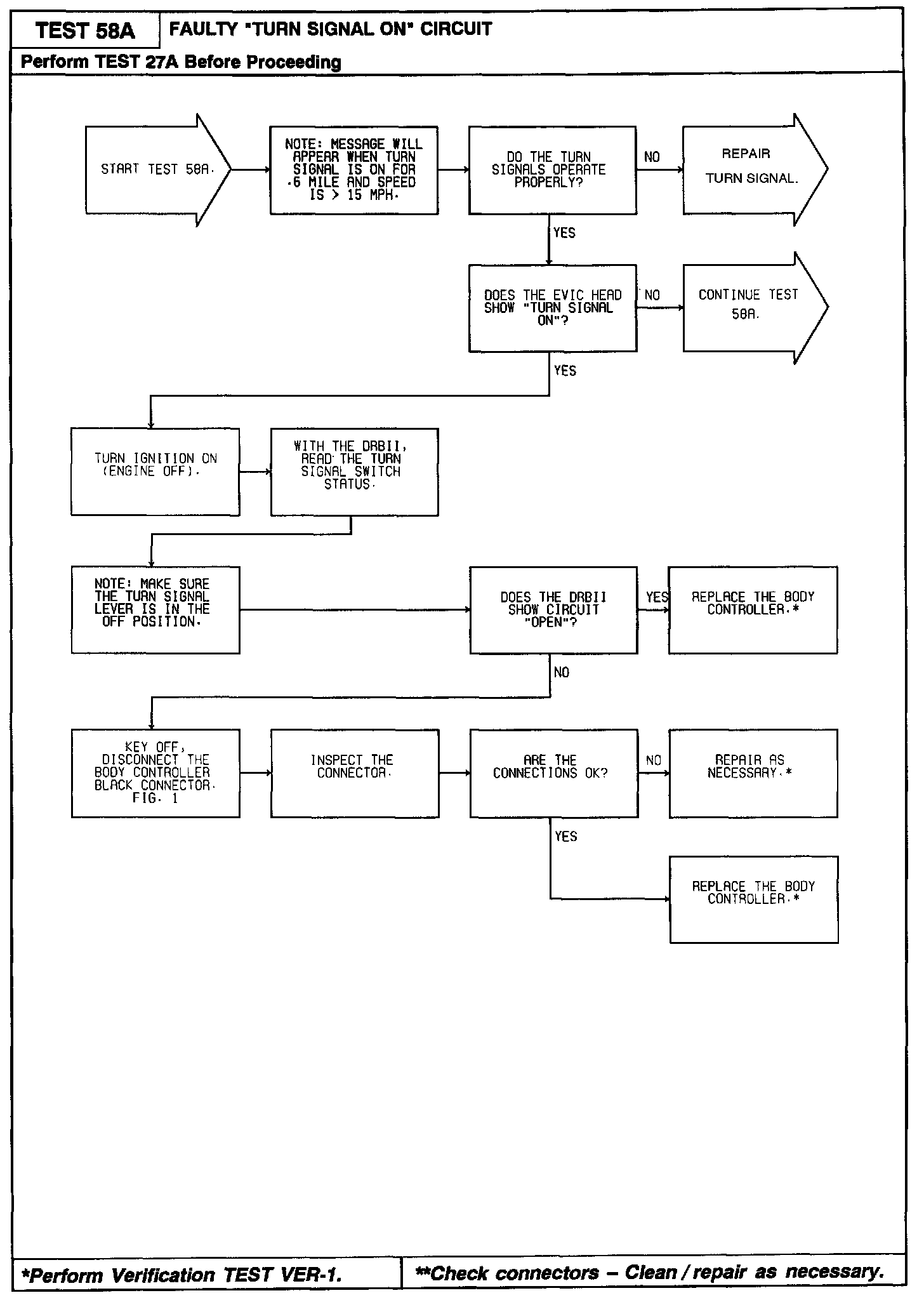

Part 1 of 2

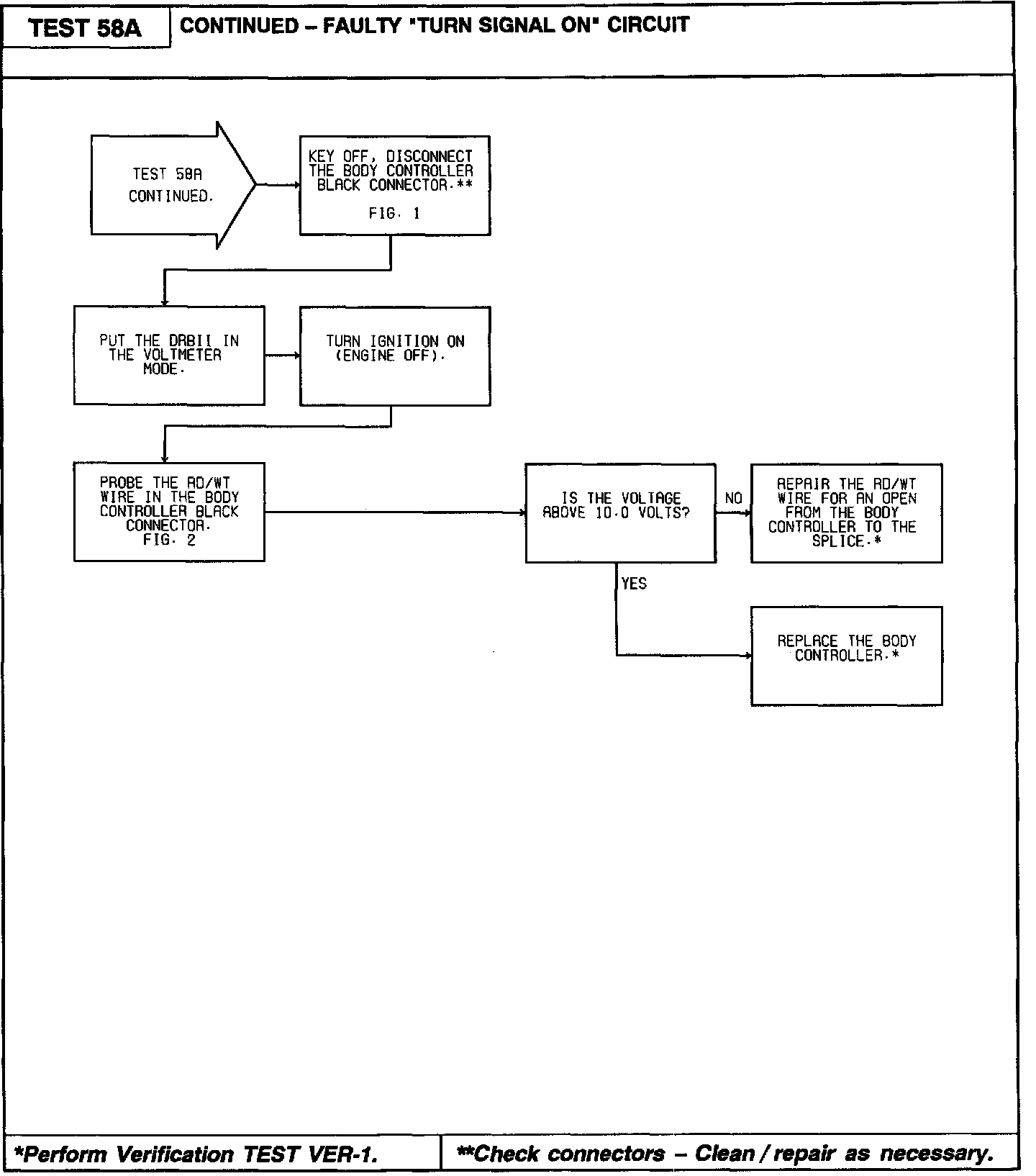

Part 2 of 2
