Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> EVIC Panel Monitor >> 25B Blank EVIC Head Monitor

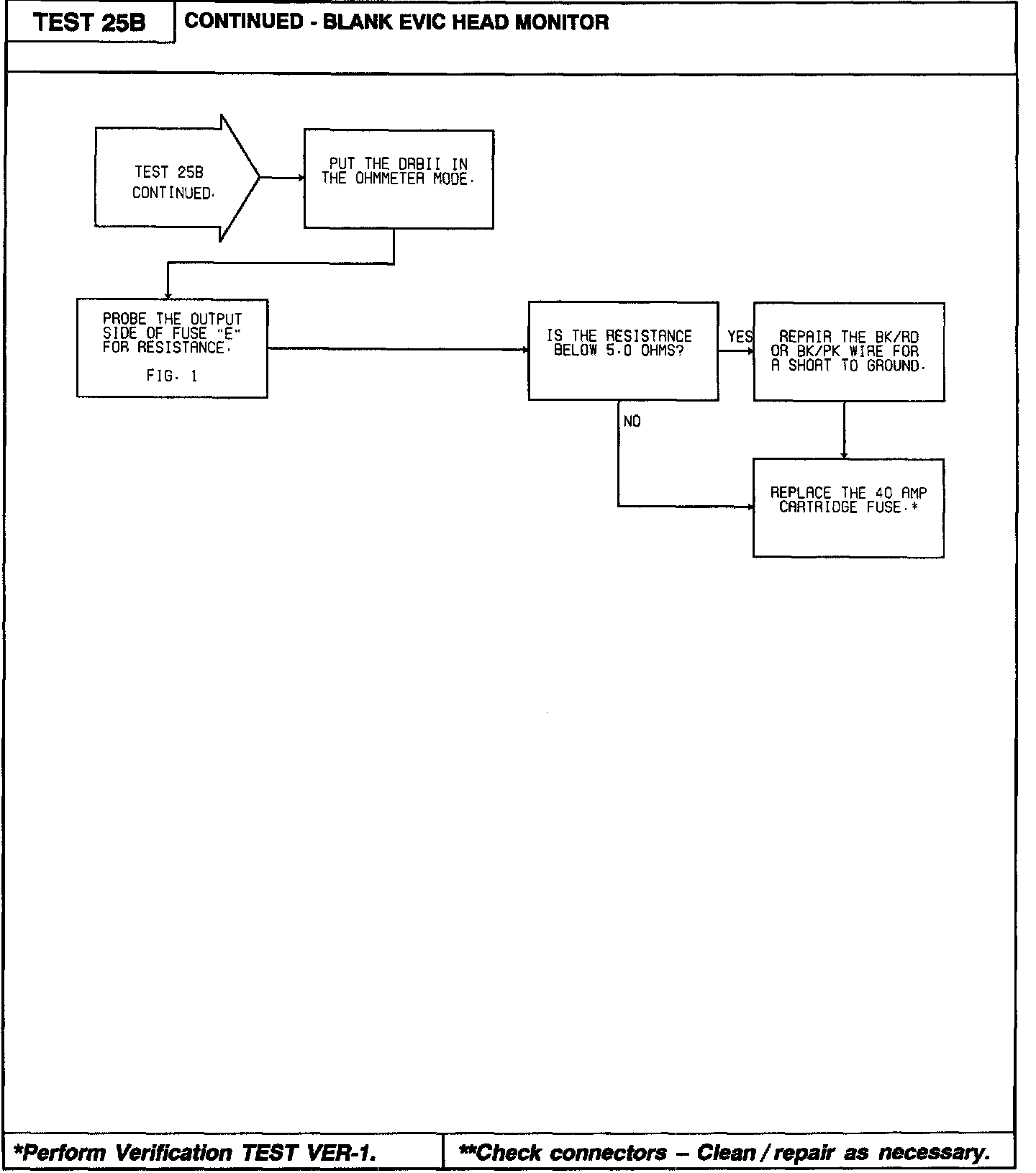

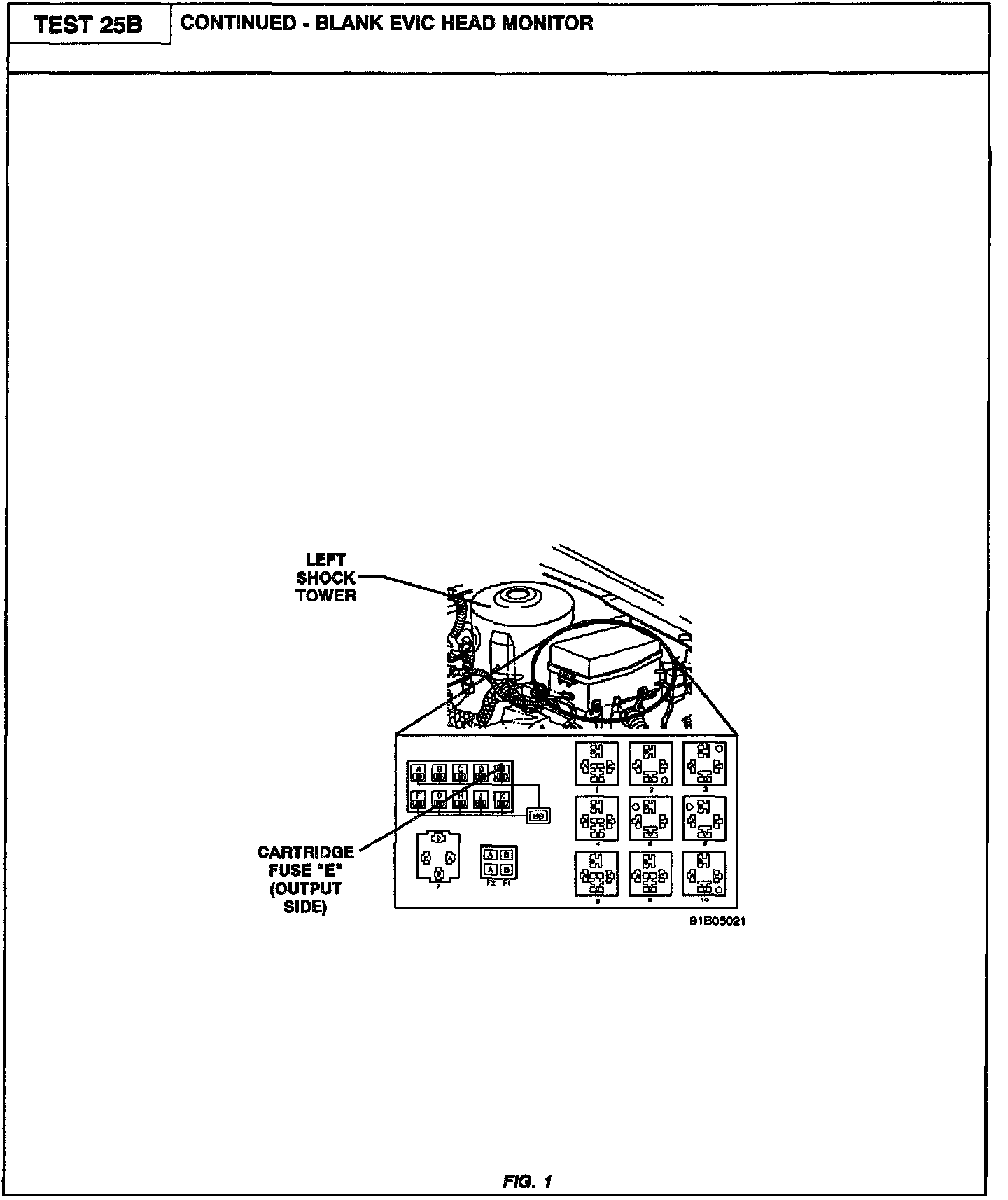

25B Blank EVIC Head Monitor








Part 1 of 3










Part 2 of 3










Part 3 of 3
