Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-5B "No Vehicle Speed Signal"

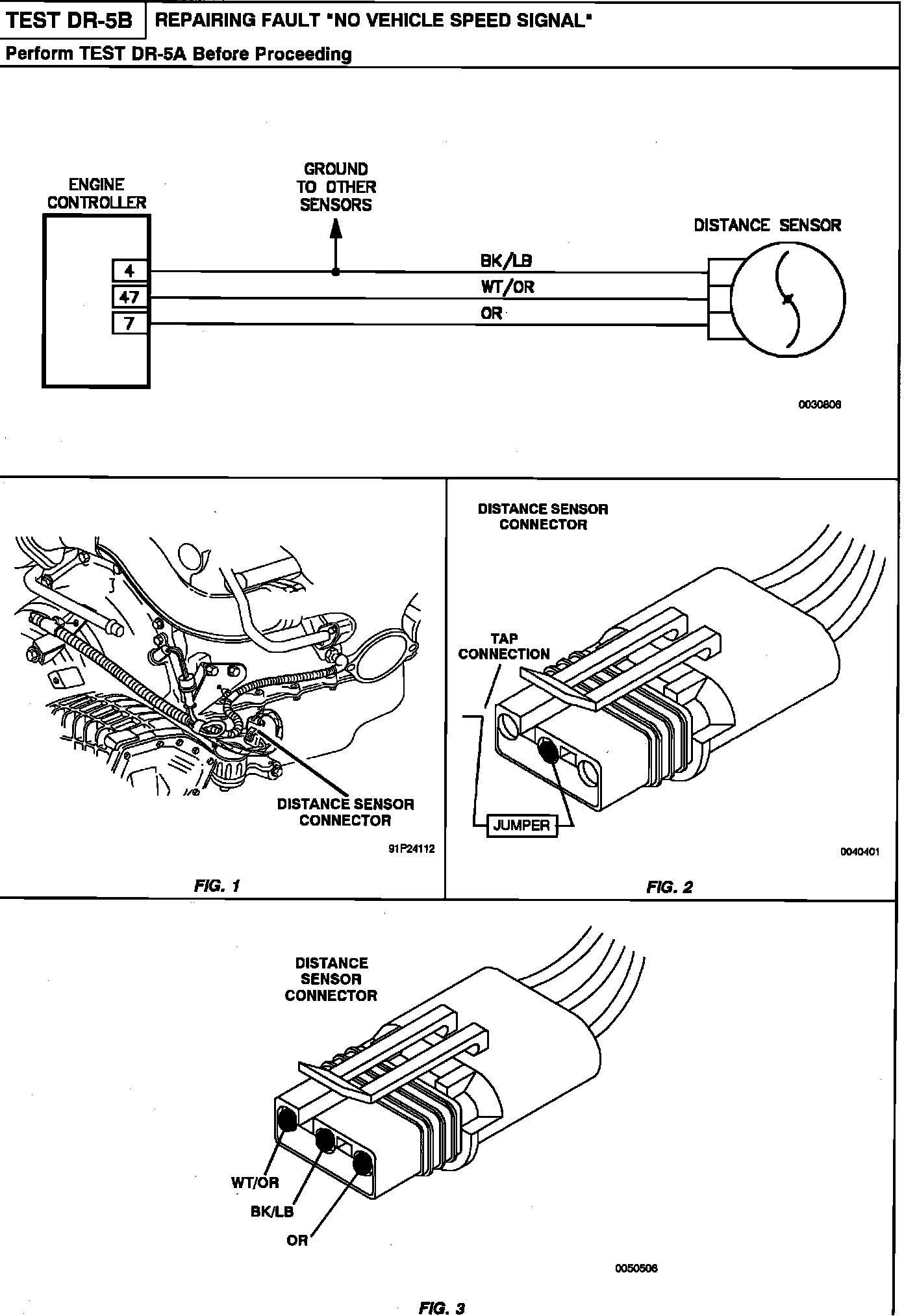

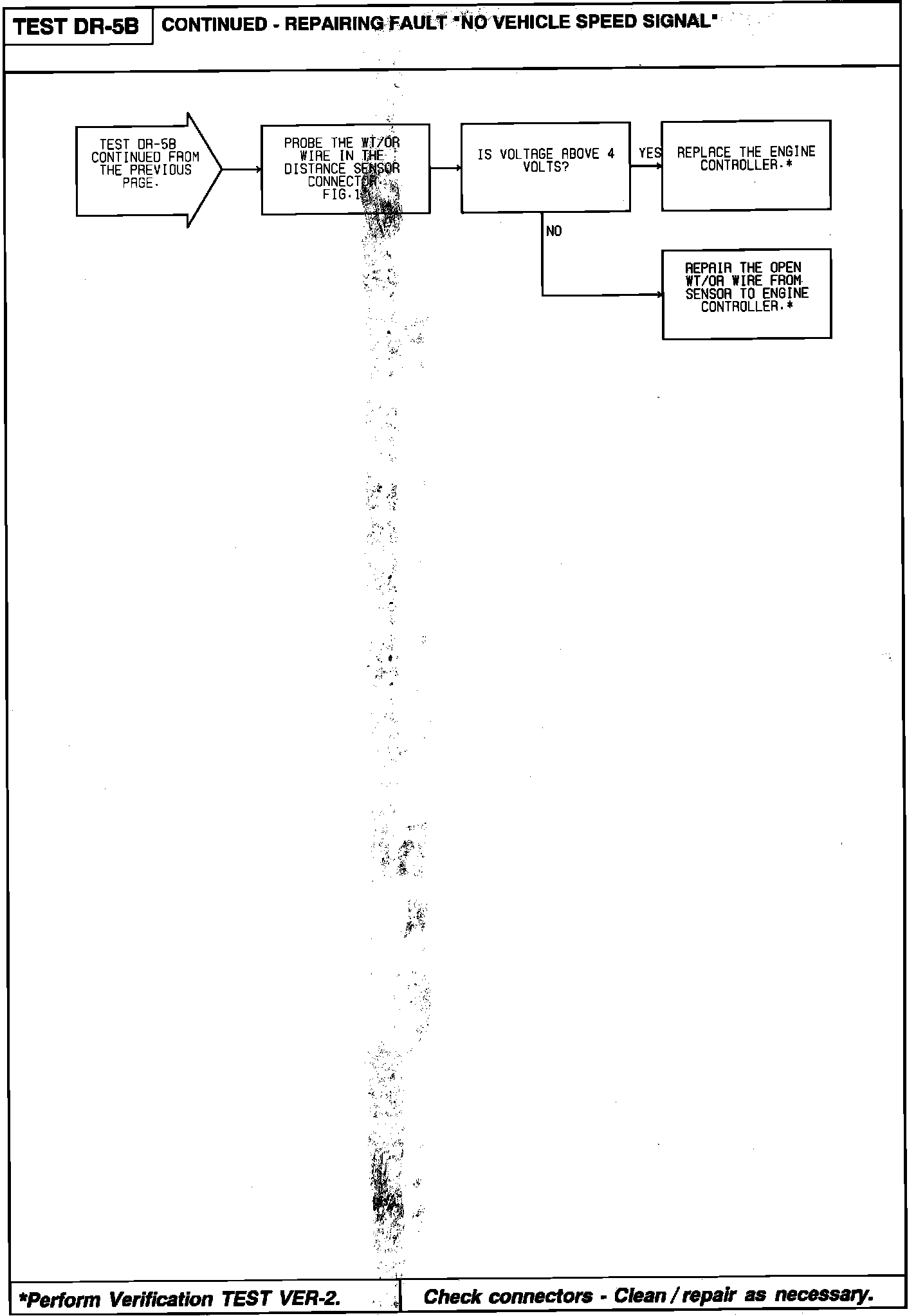

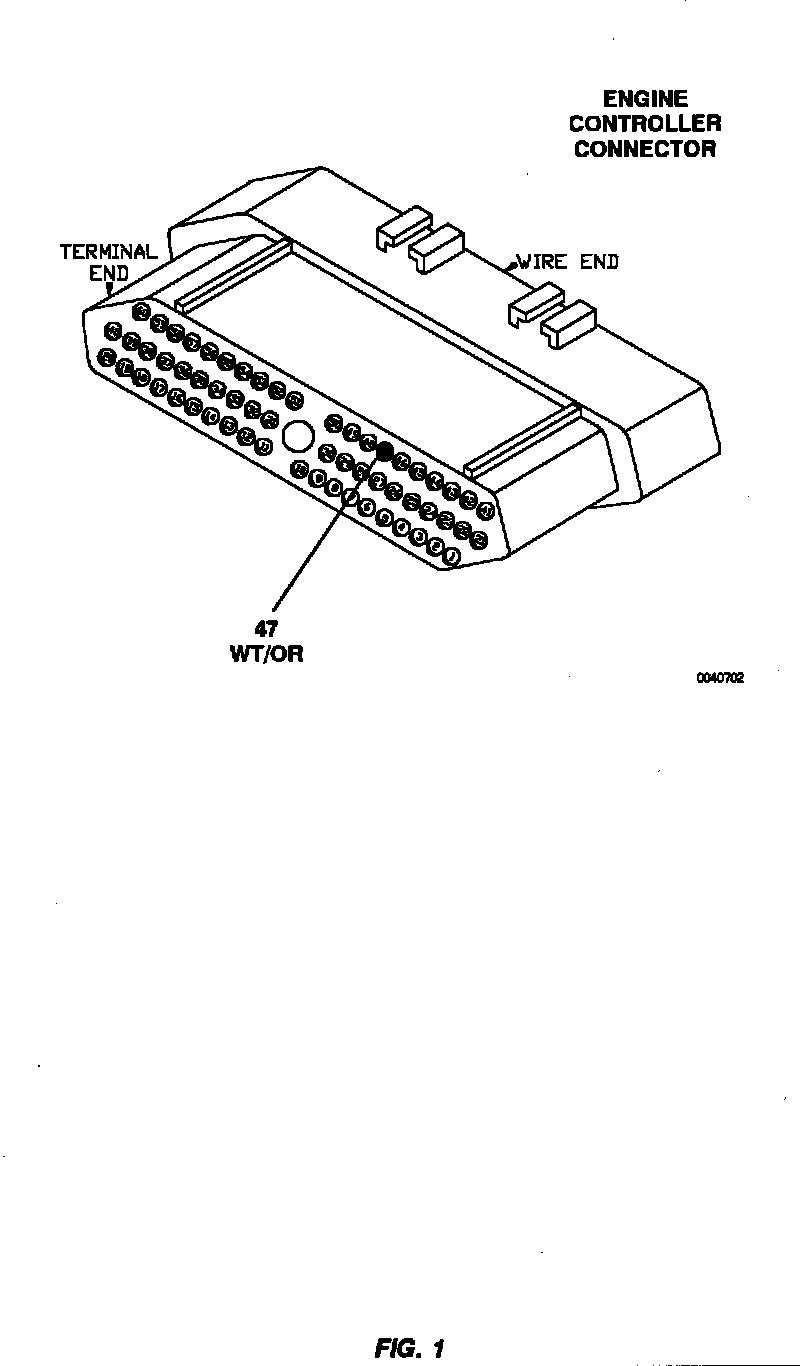

DR-5B "No Vehicle Speed Signal"

Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:
