DR-5A "No Vehicle Speed Signal"

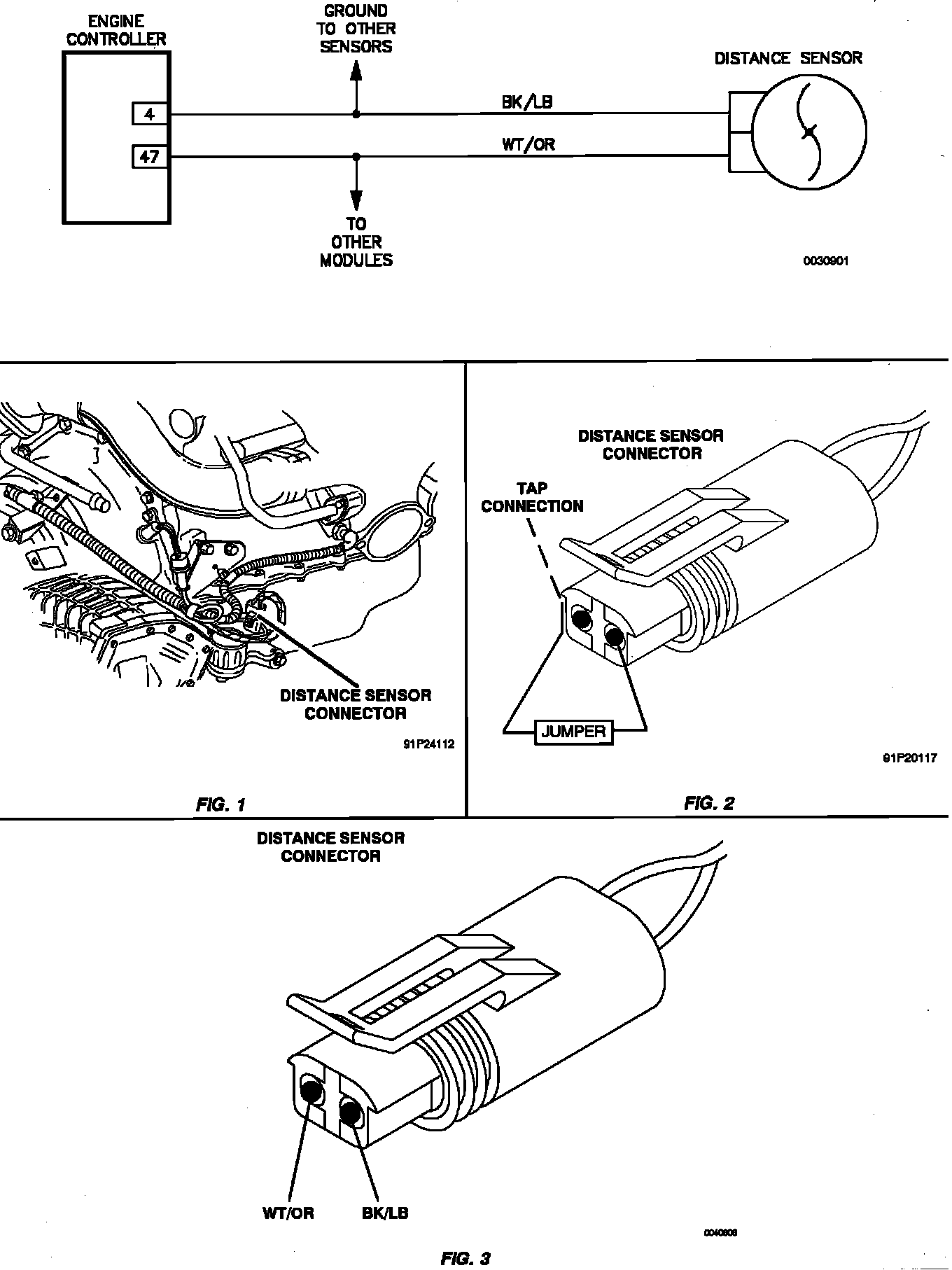

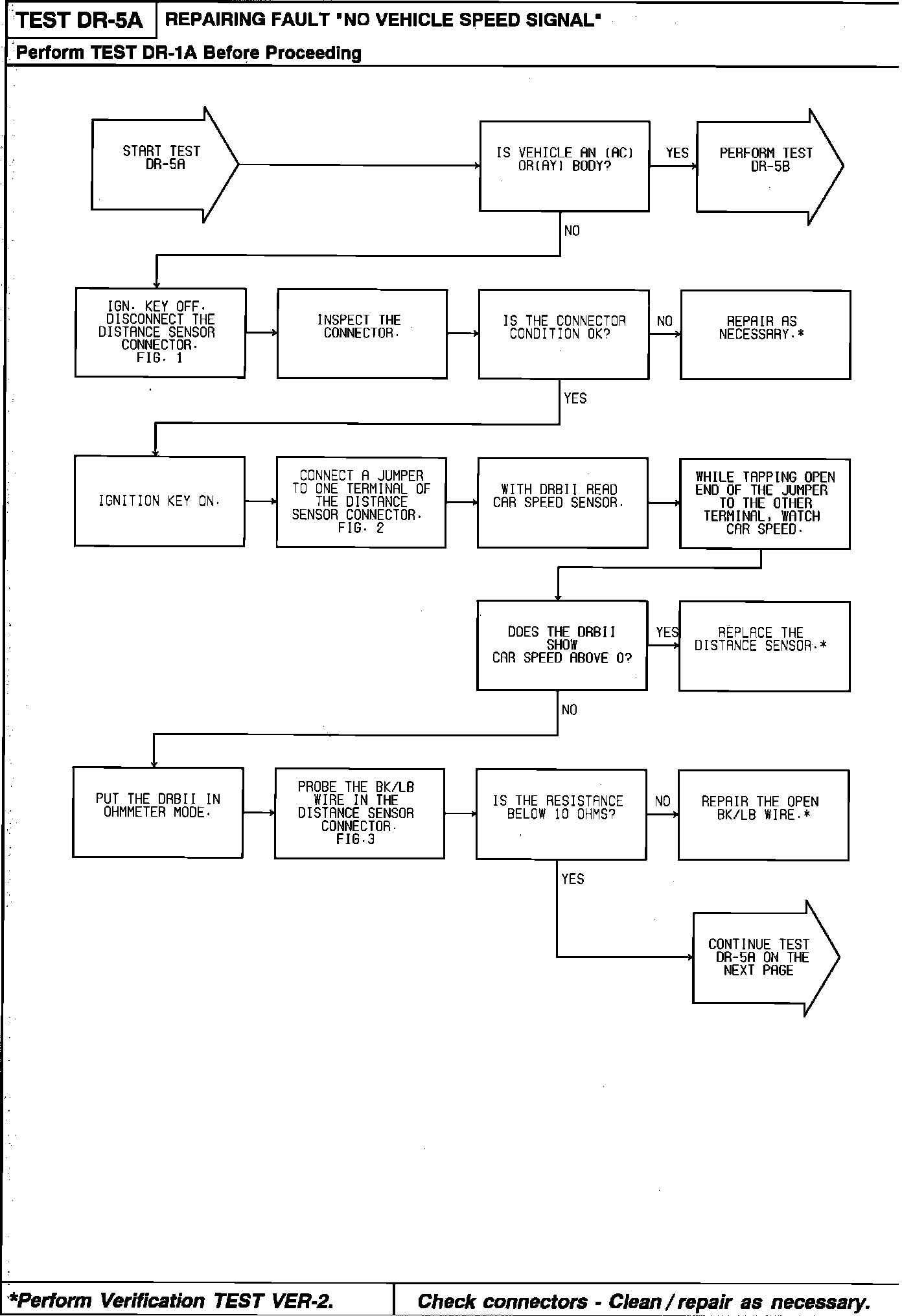

Test DR-5A - "No Vehicle Speed Signal":

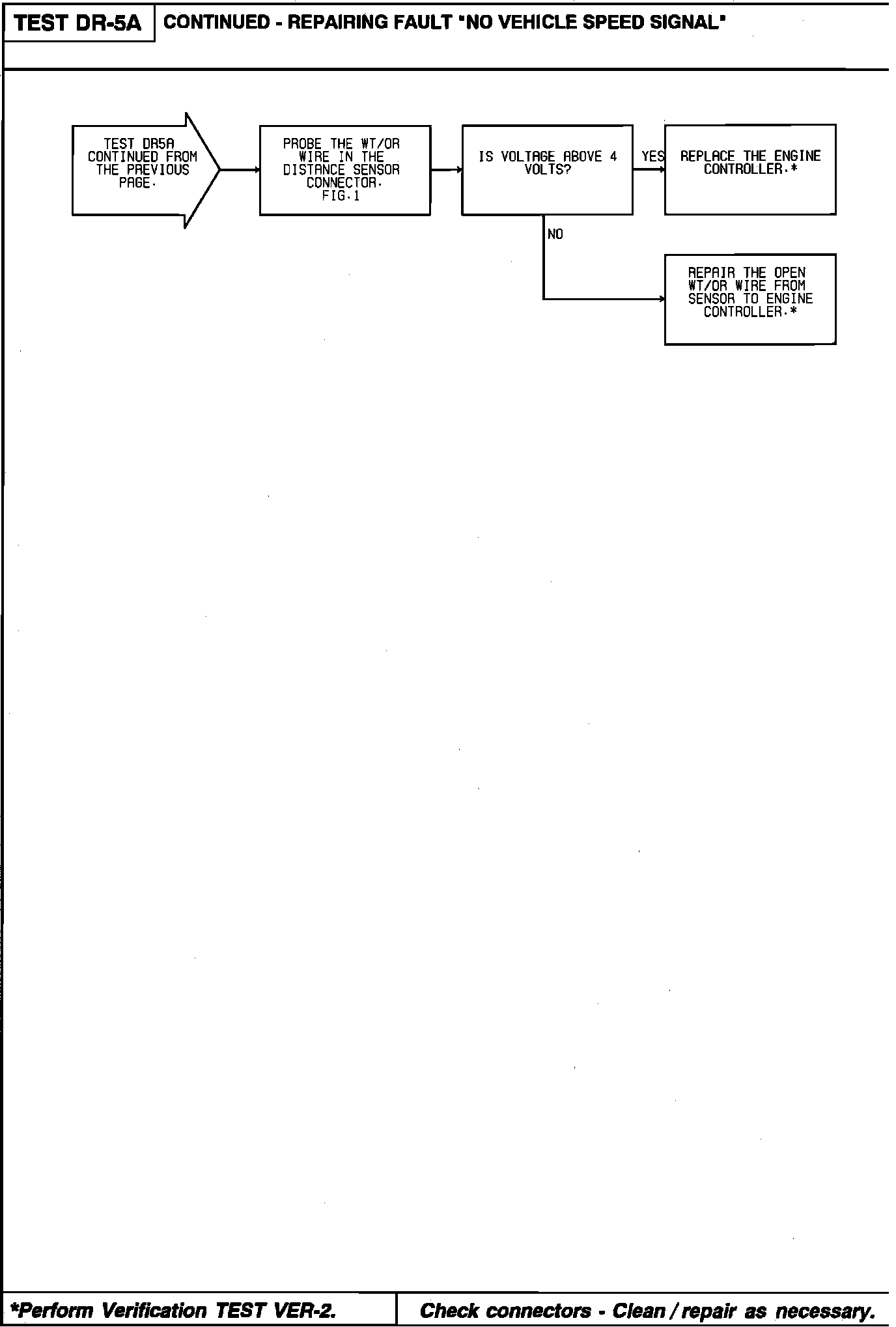

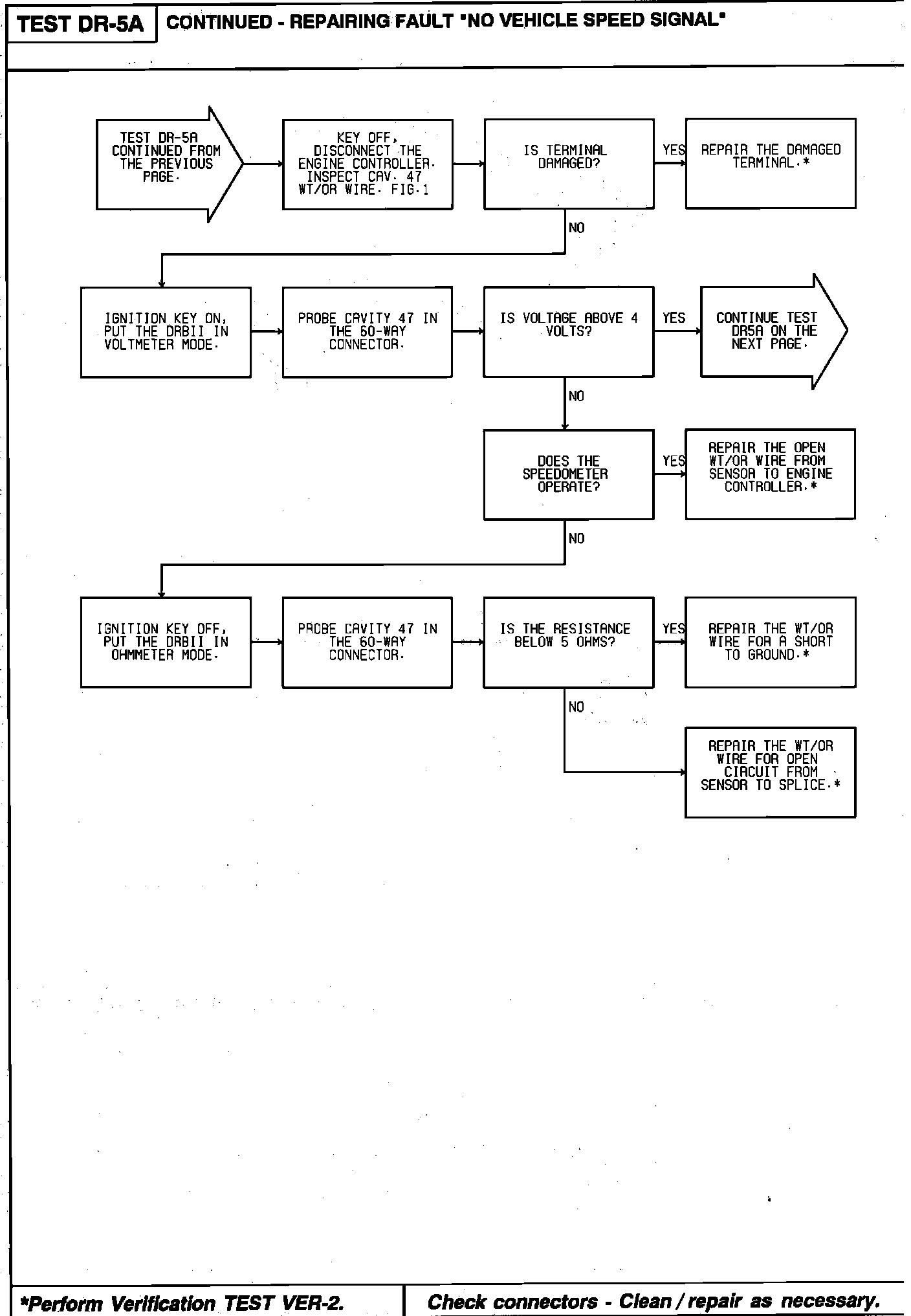

Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:



Repairing "No Vehicle Speed Signal" Fault:
