DR-34A Intermittent Test For Relays & Solenoids
DR-34A Intermittent Test For Relays & Solenoids

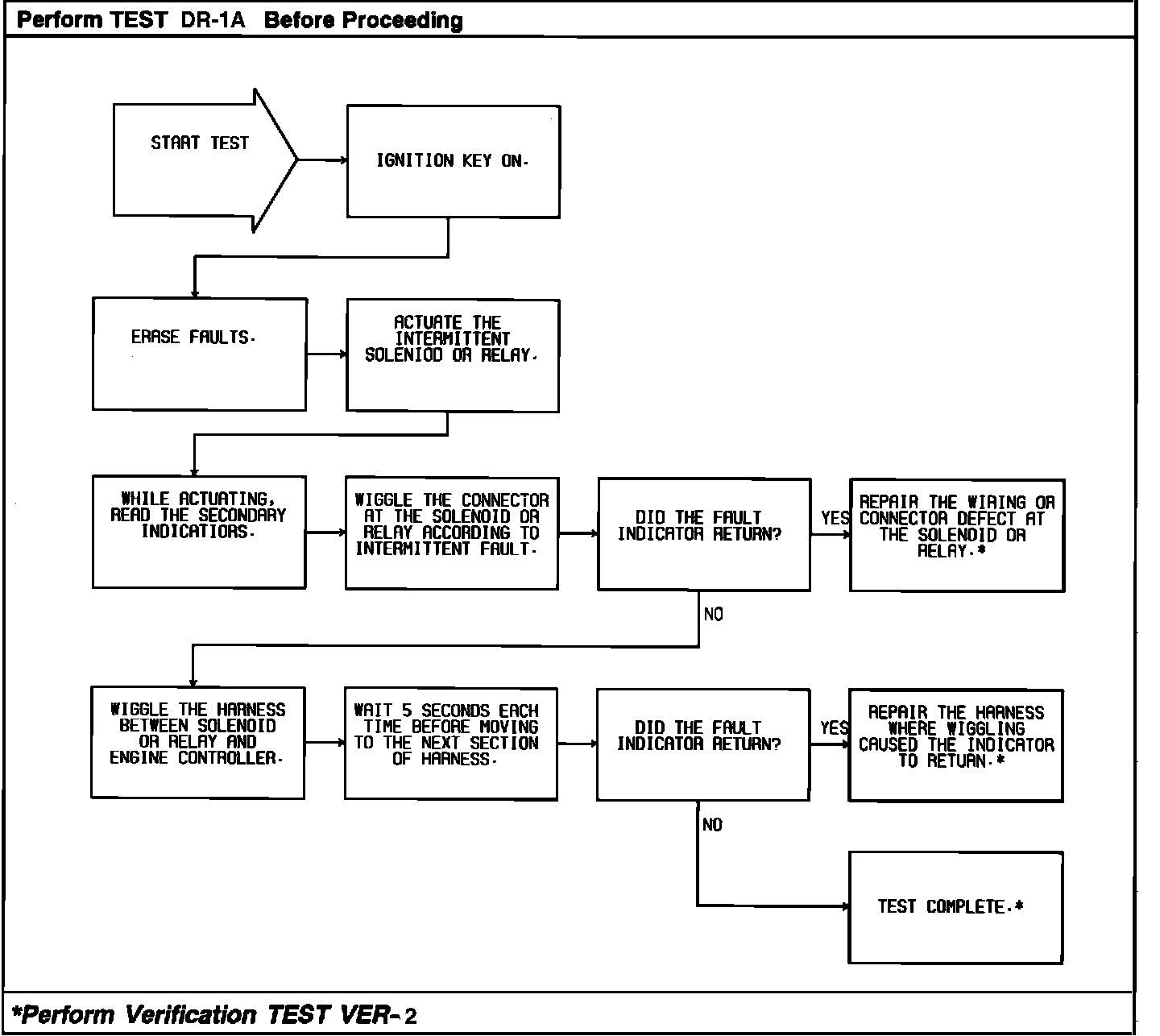

Intermittent Test For Solenoids And Relays:
