Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-32A Intermittent Test For IAC Motor Circuits

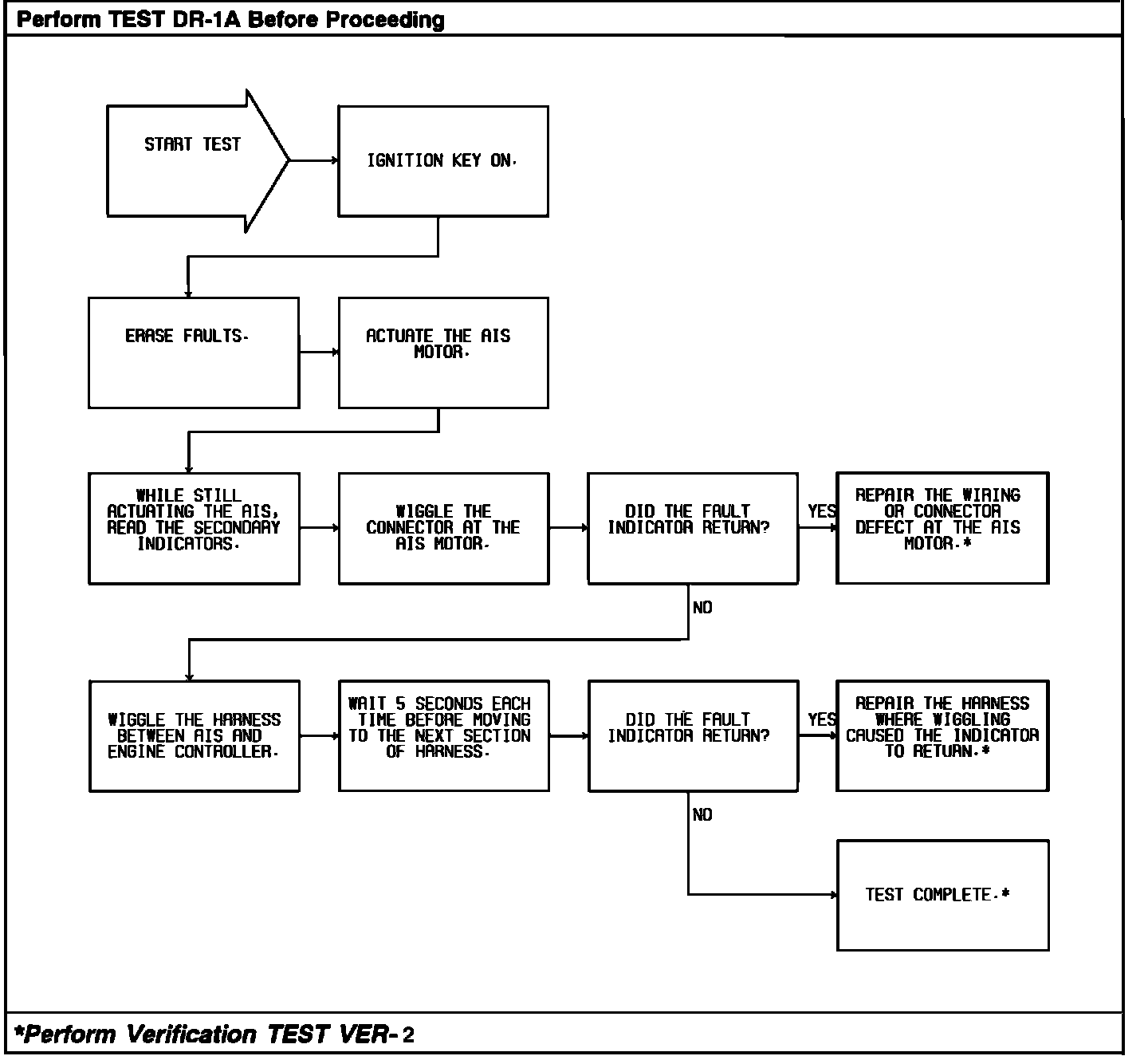

DR-32A Intermittent Test For IAC Motor Circuits

Intermittent Test For AIS Motor Circuits:
