Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Mechanical Cluster Warning Lamps >> 69A Faulty 'Check Gauges' Lamp on CONV Cluster

69A Faulty 'Check Gauges' Lamp on CONV Cluster

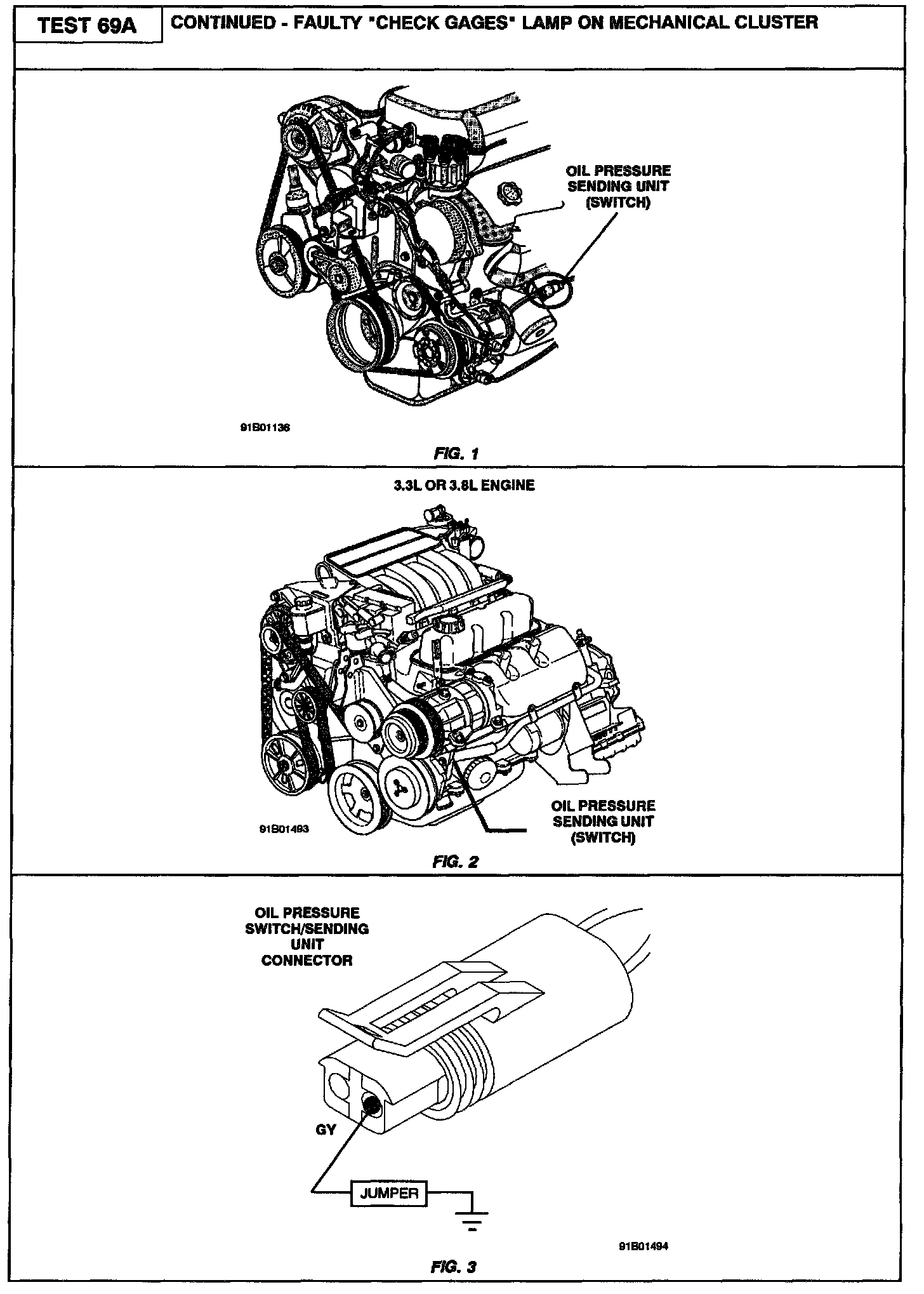

Part 1 of 3

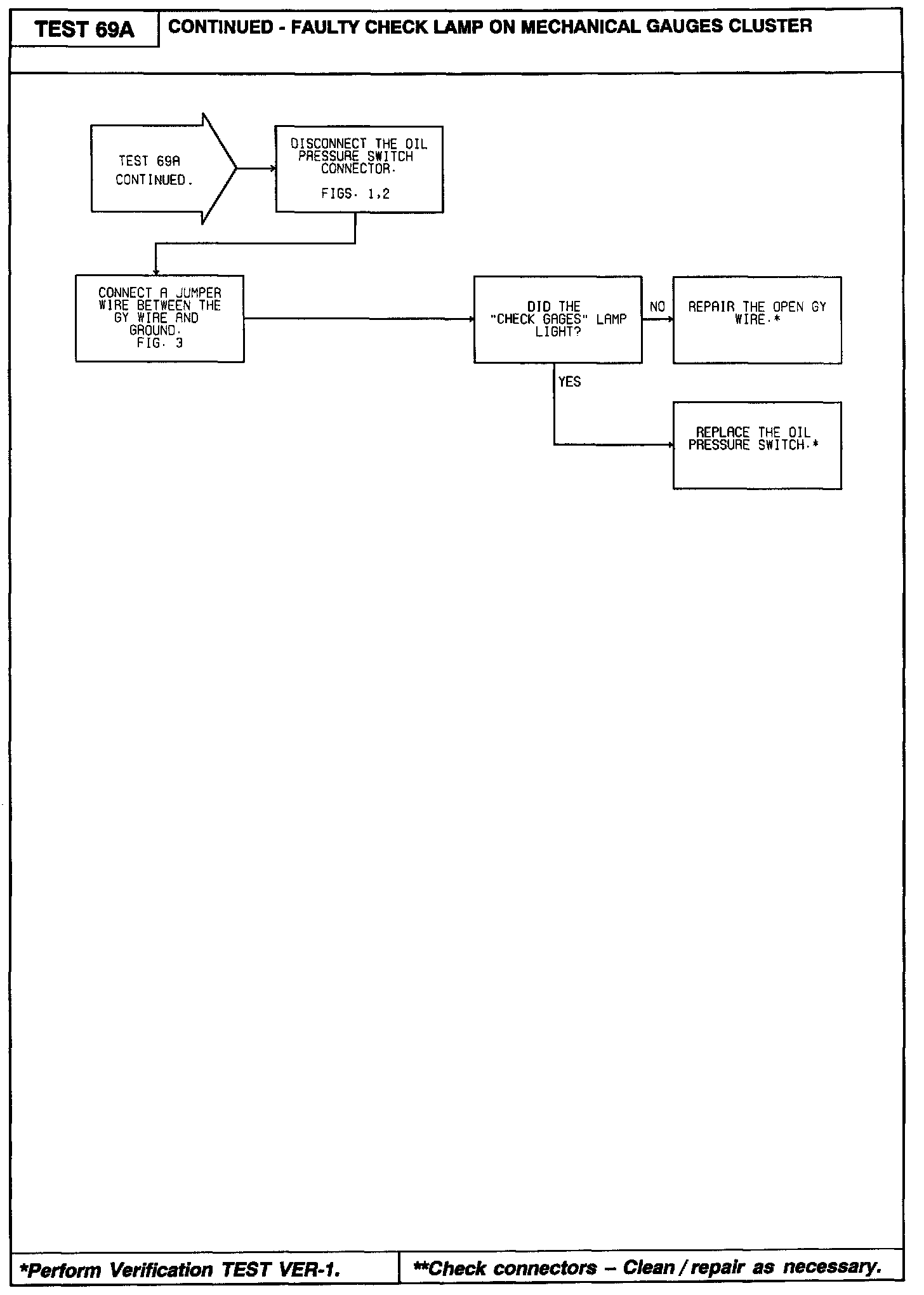

Part 2 of 3











Part 3 of 3
