Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Mechanical Cluster Warning Lamps >> 68A Faulty Low Fuel Lamp on Mechanical Cluster

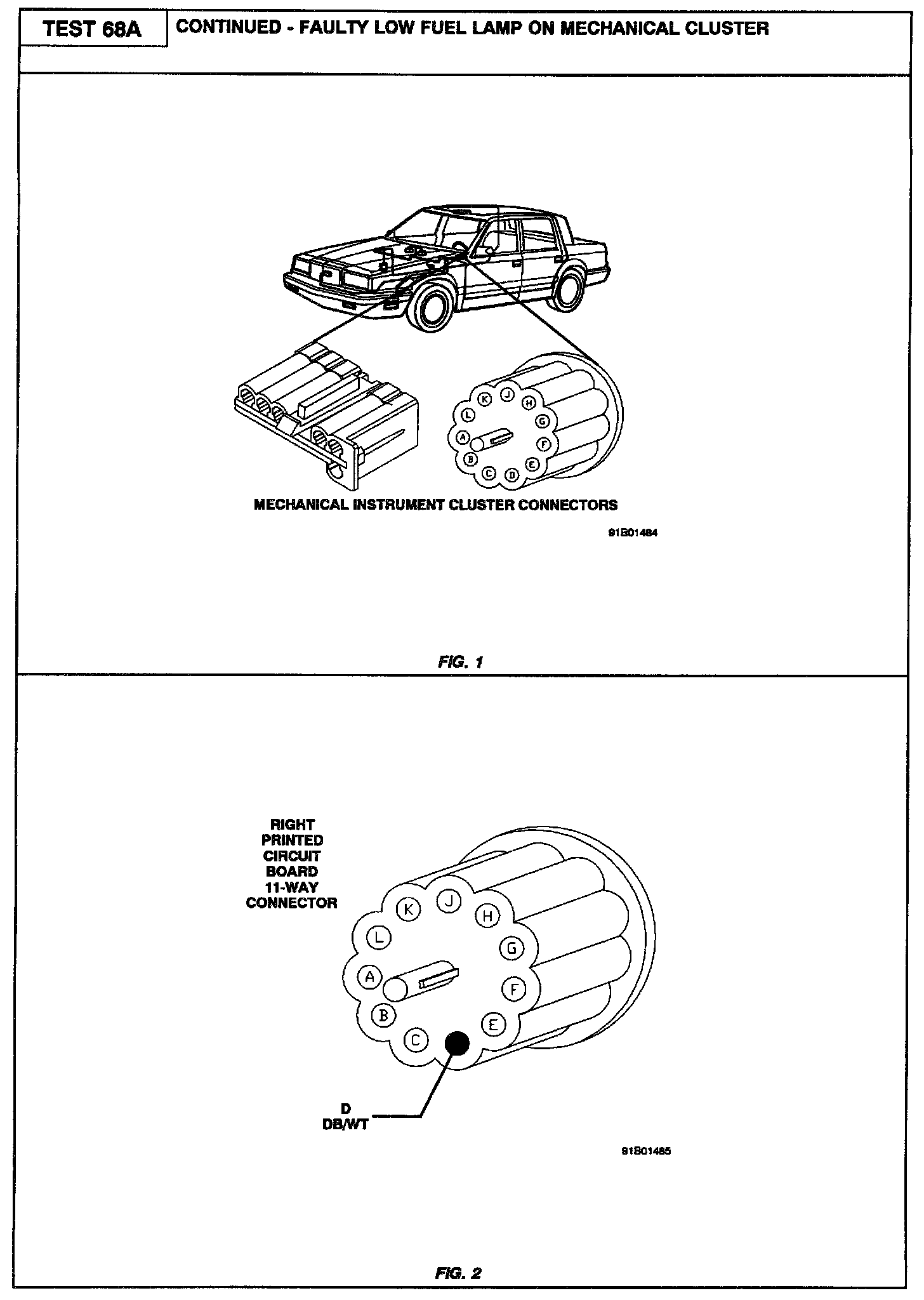

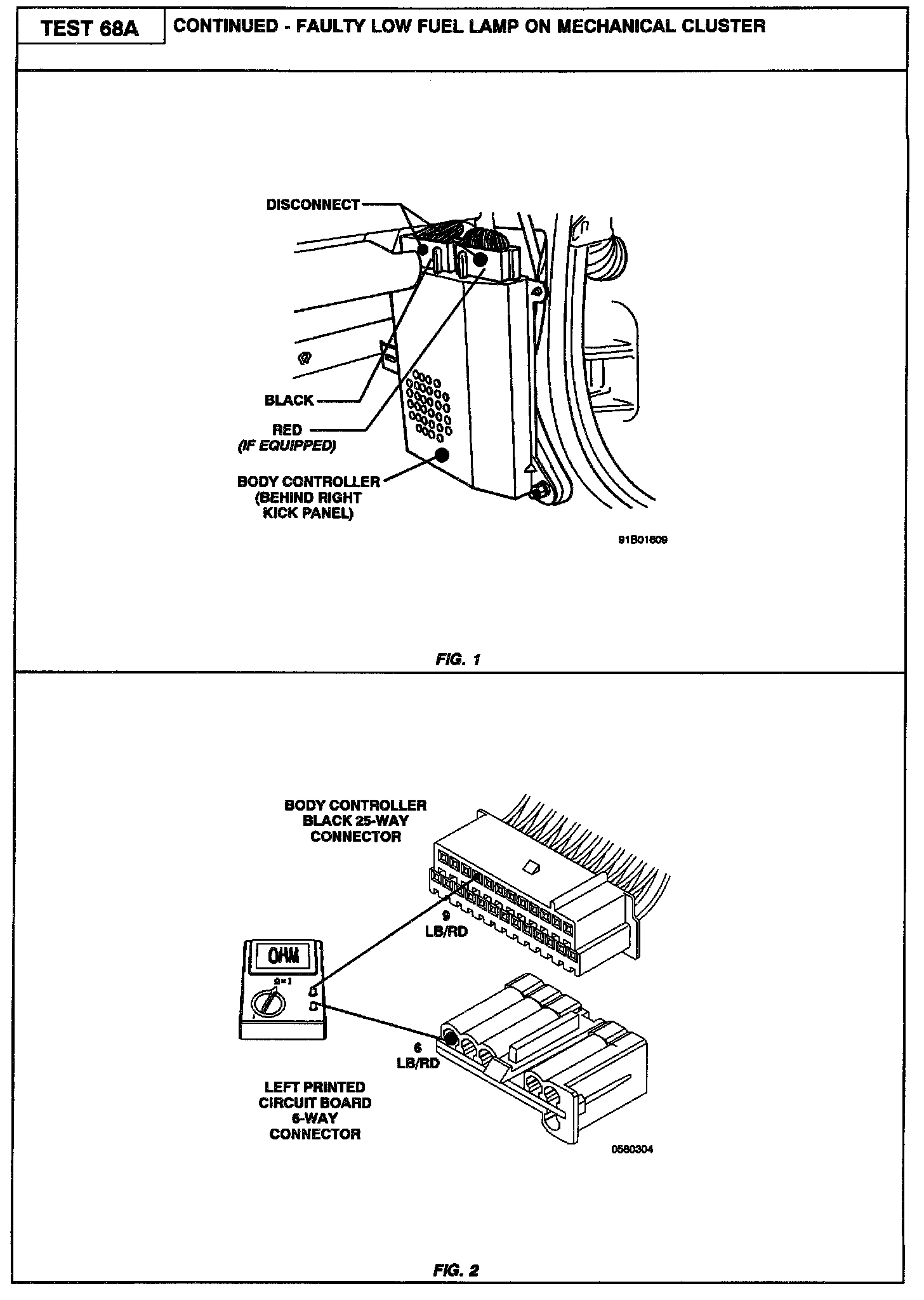

68A Faulty Low Fuel Lamp on Mechanical Cluster








Part 1 of 3











Part 2 of 3











Part 3 of 3
