Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Key-In Lamp System >> 14C Left Front Door Jamb Circuit

14C Left Front Door Jamb Circuit

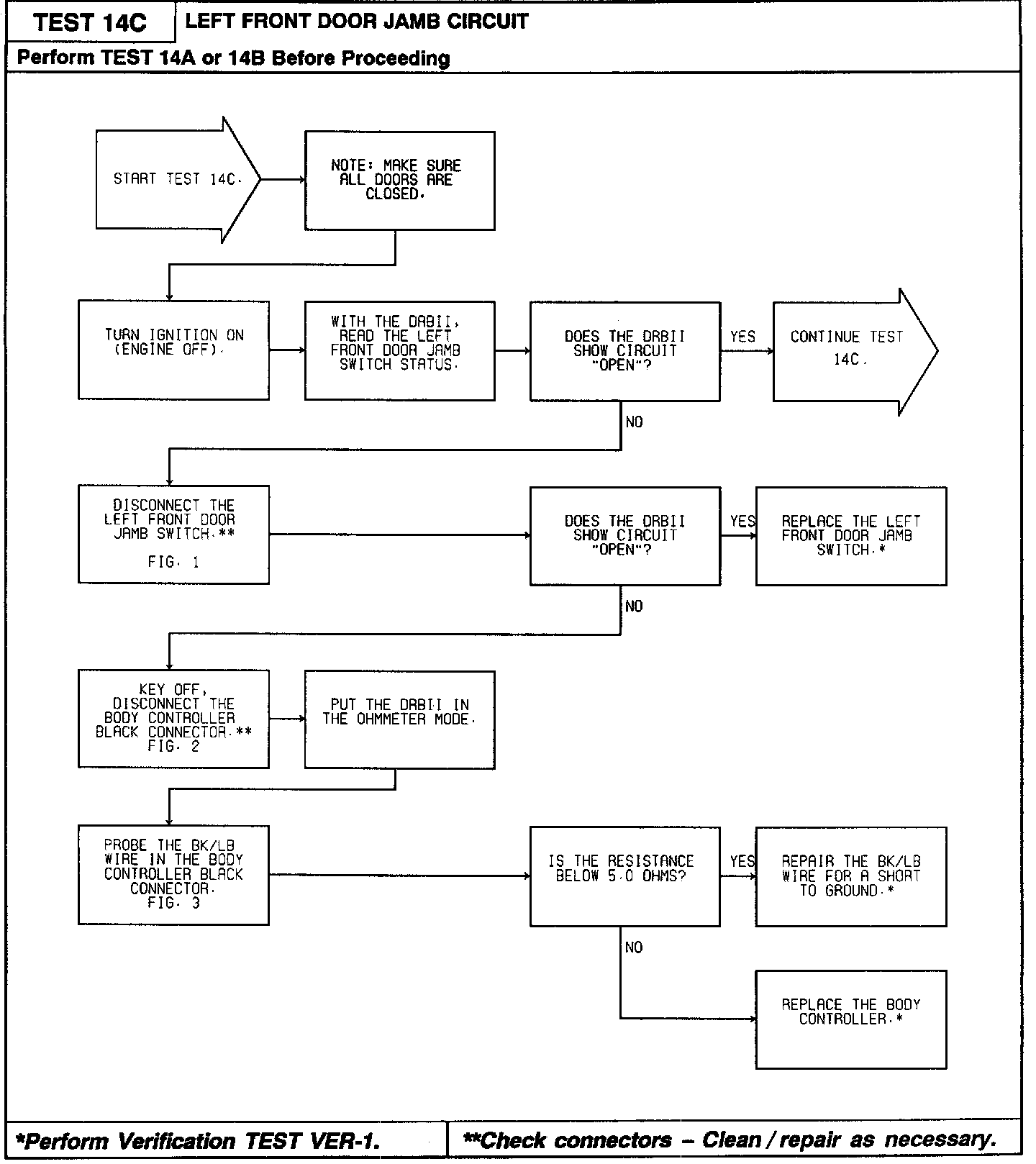

Part 1 of 2

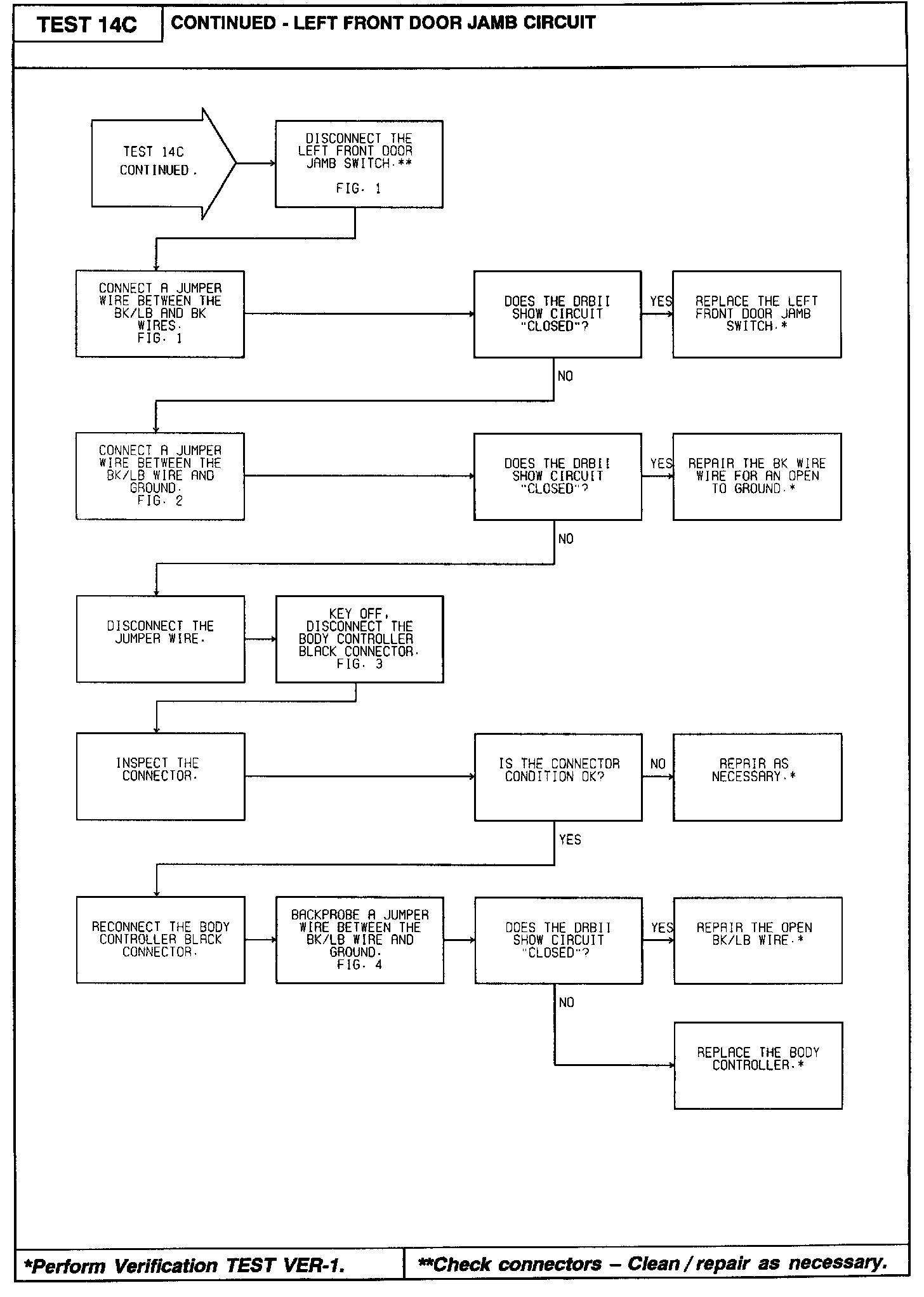

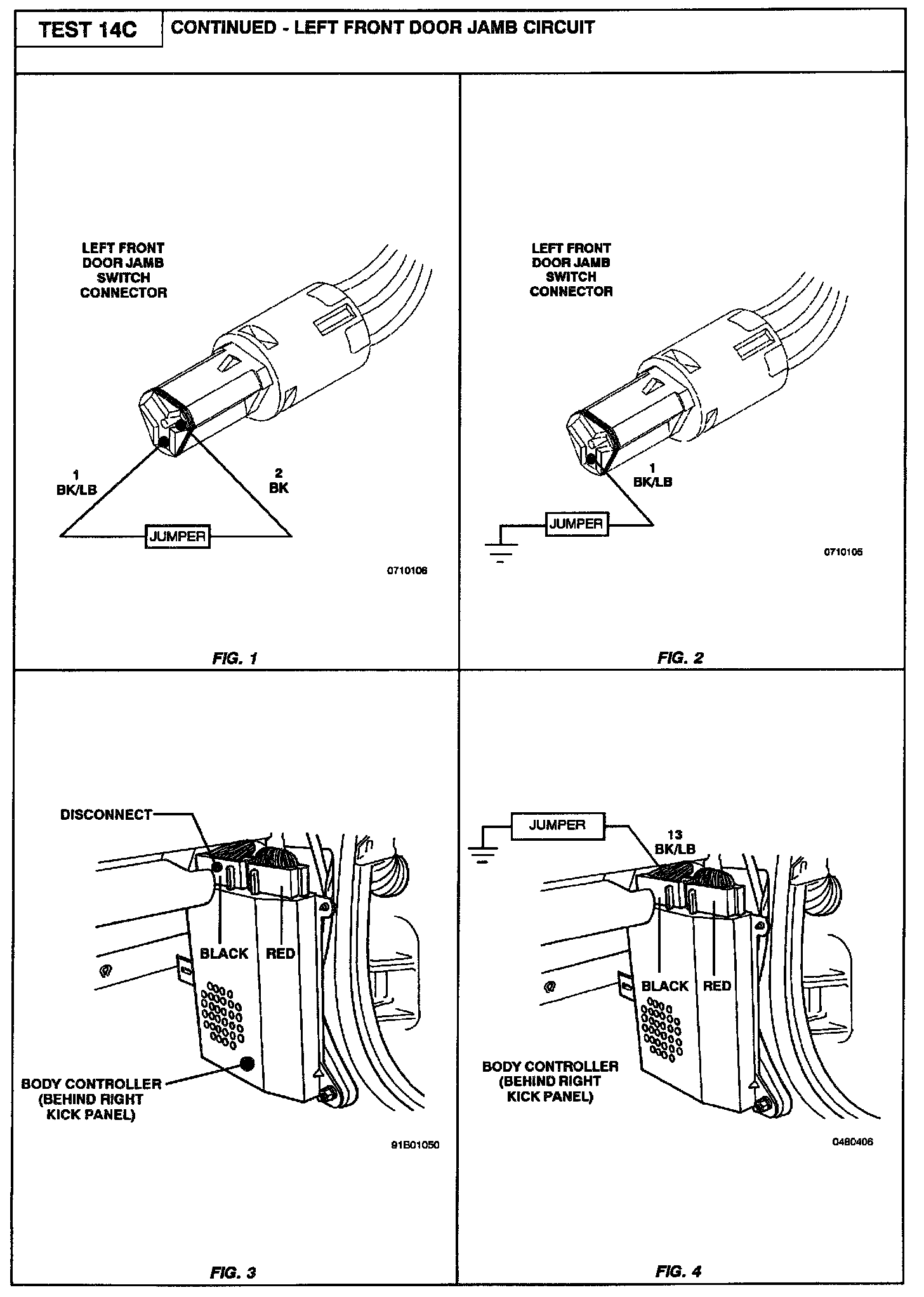

Part 2 of 2
