Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Headlamp Door System >> 65A Headlamp Doors Do Not Open For 'Flash to Pass'

65A Headlamp Doors Do Not Open For 'Flash to Pass'

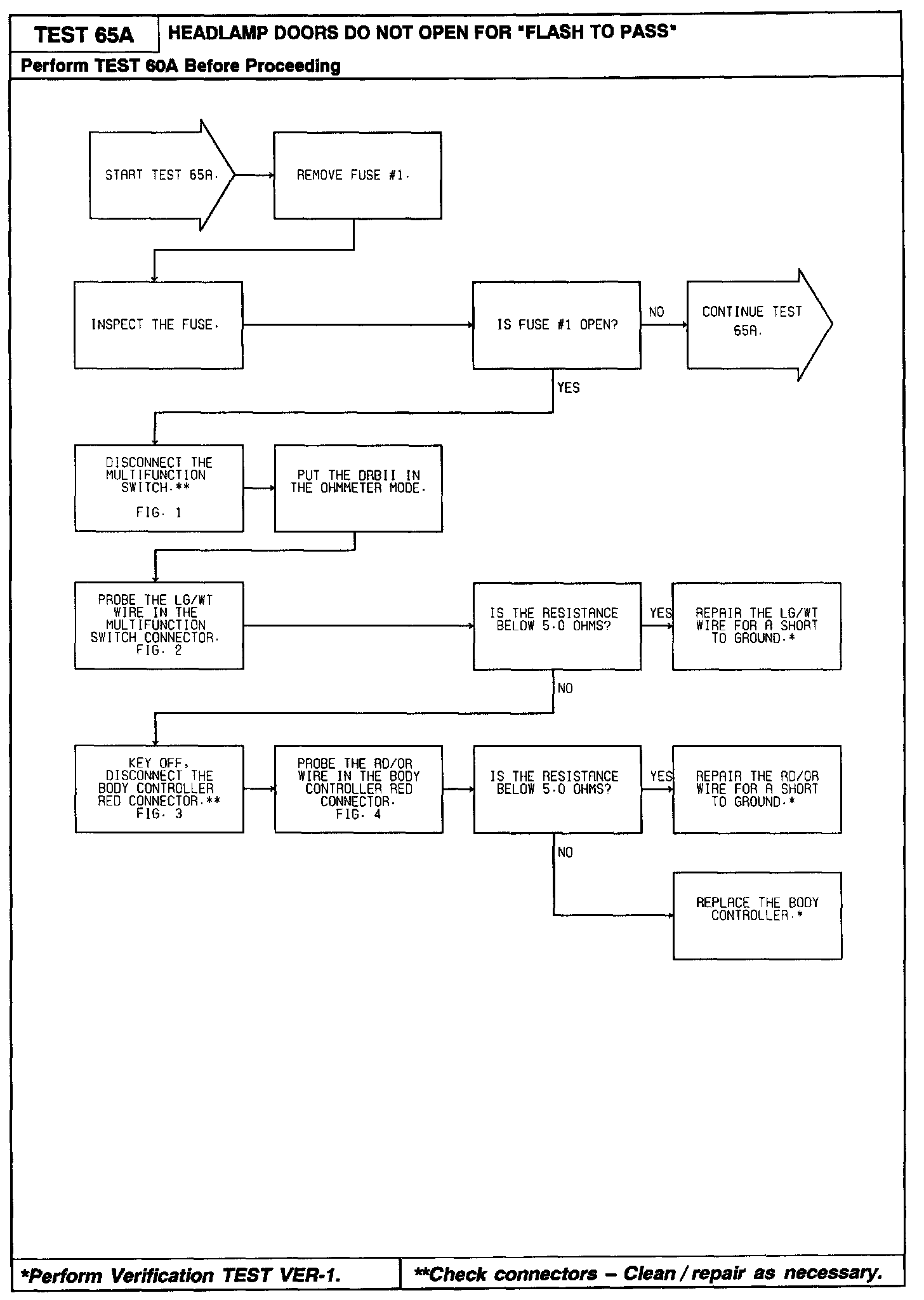

Part 1 of 3

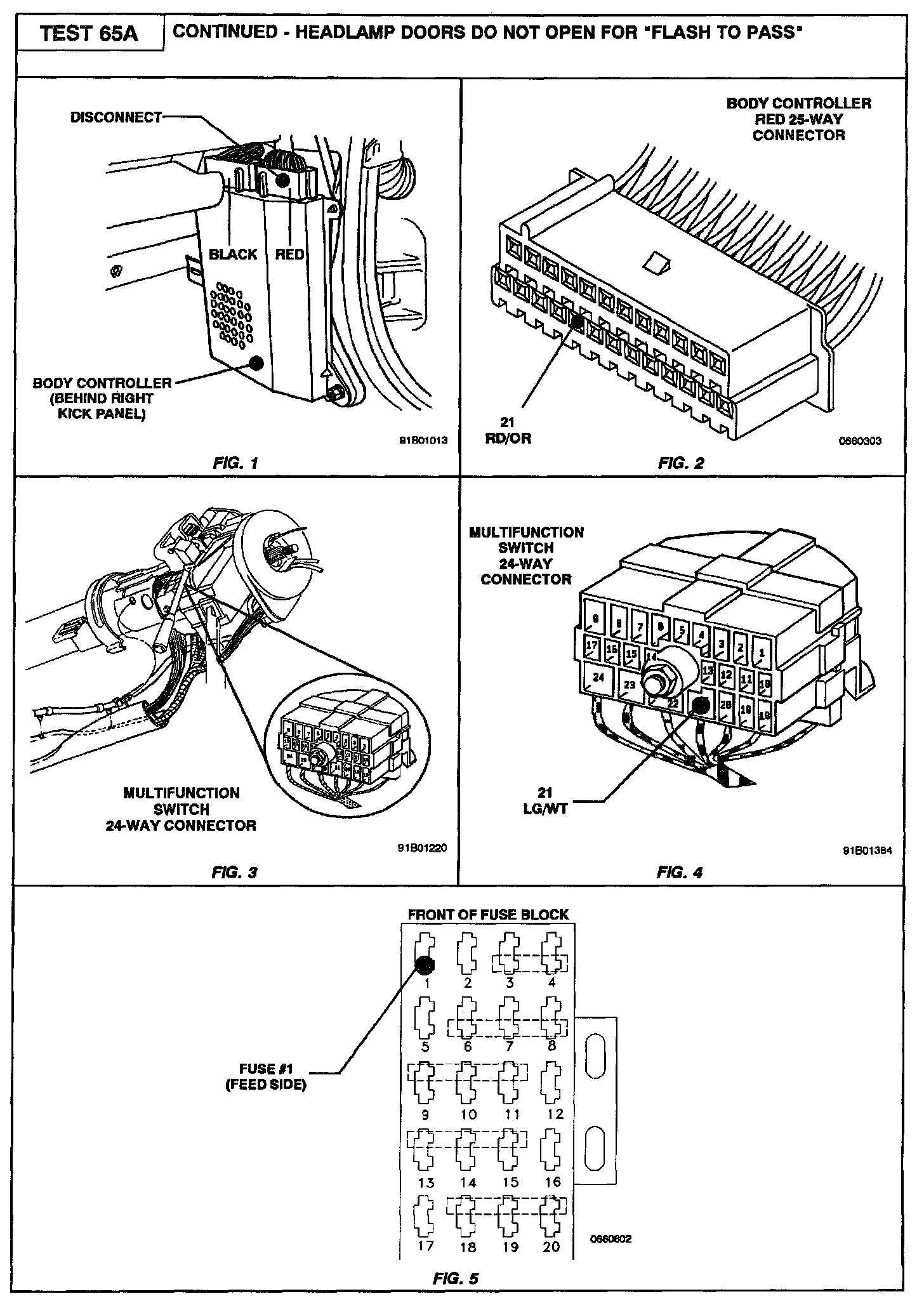

Part 2 of 3

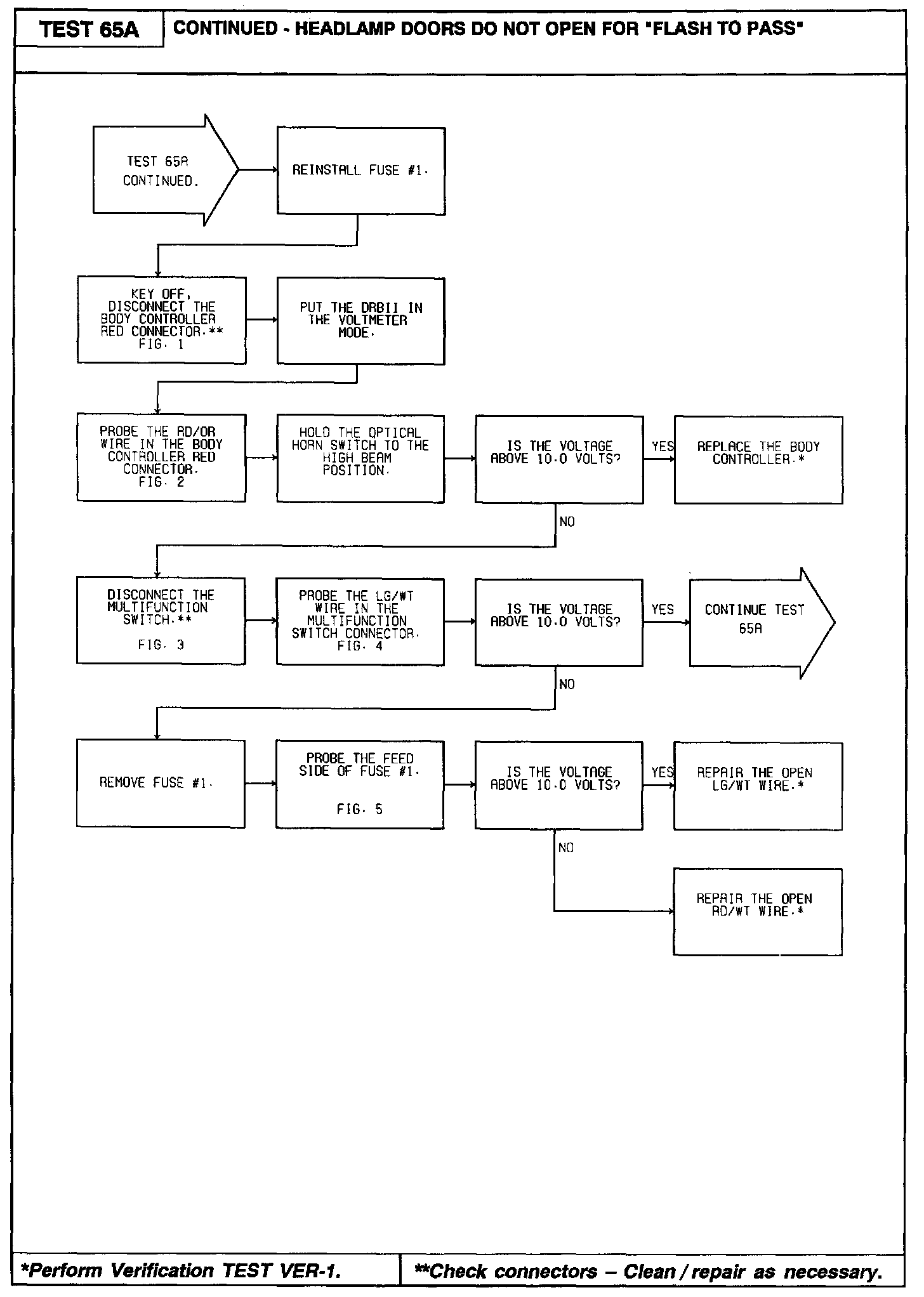

Part 3 of 3
