Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Headlamp Door System >> 63A Headlamp Doors Will Not Open

63A Headlamp Doors Will Not Open

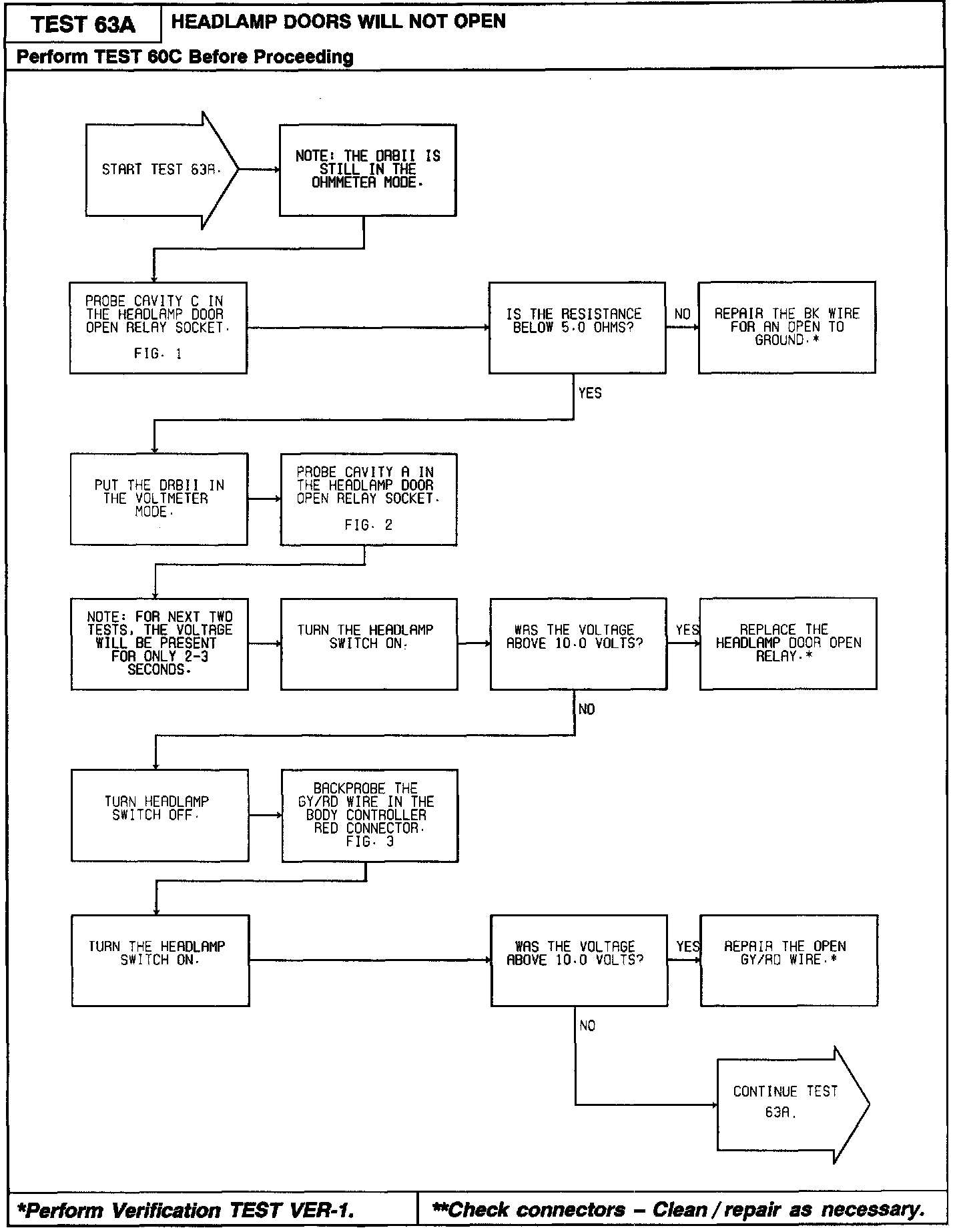

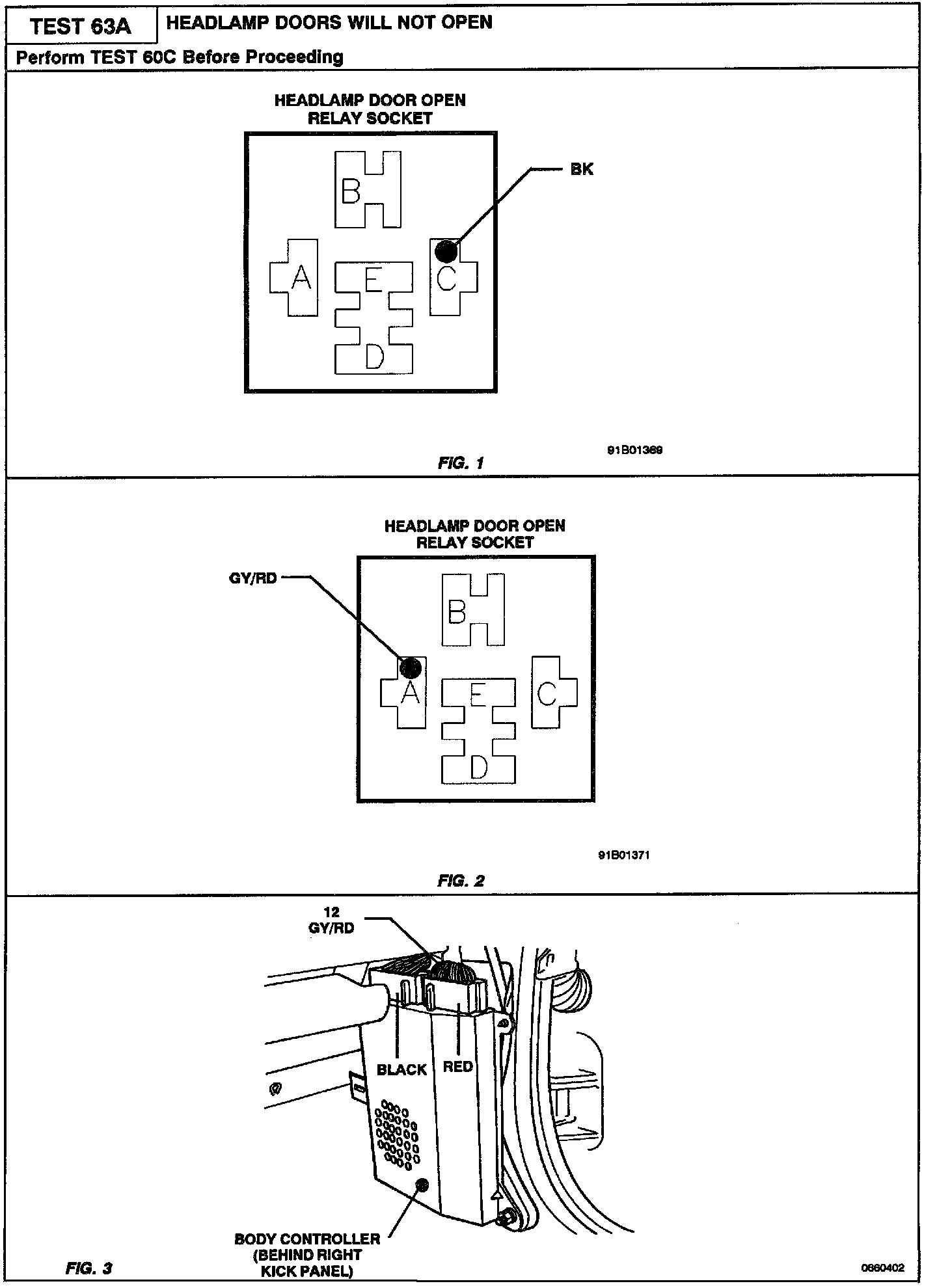

Part 1 of 2

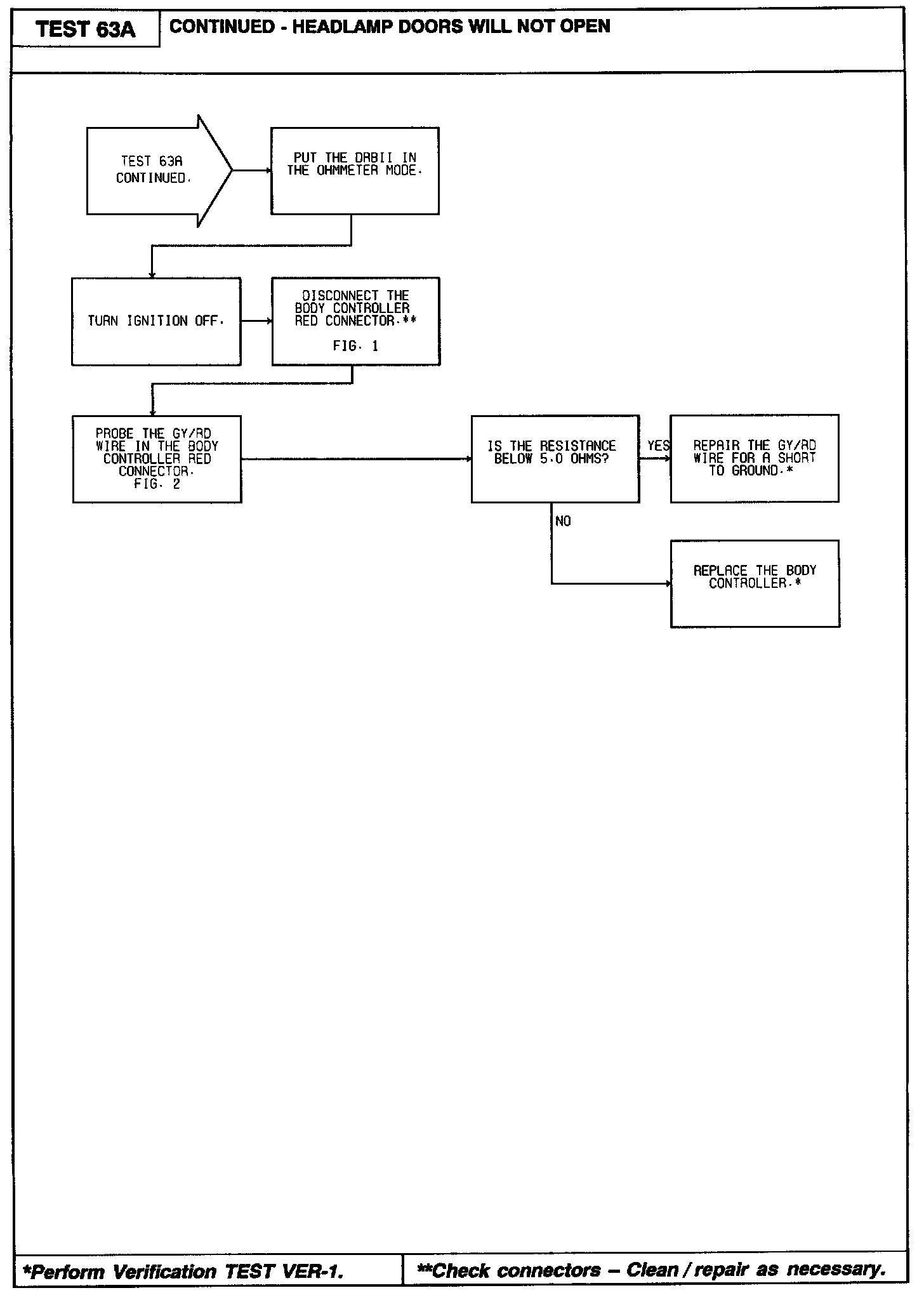

Part 2 of 2
