Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Electronic Instument Cluster >> 23B Electronic Instrument Cluster/Evic Illumination Test

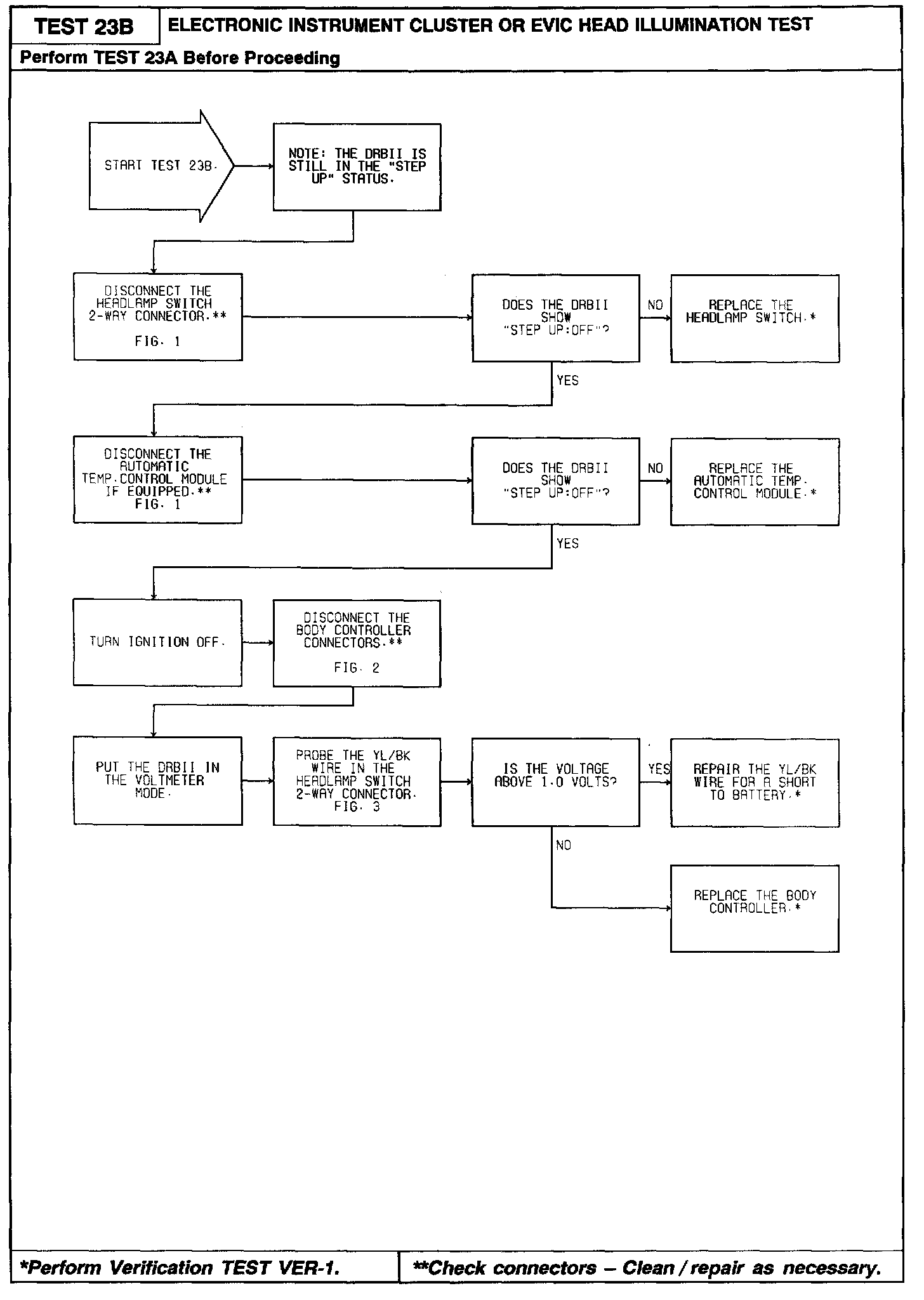

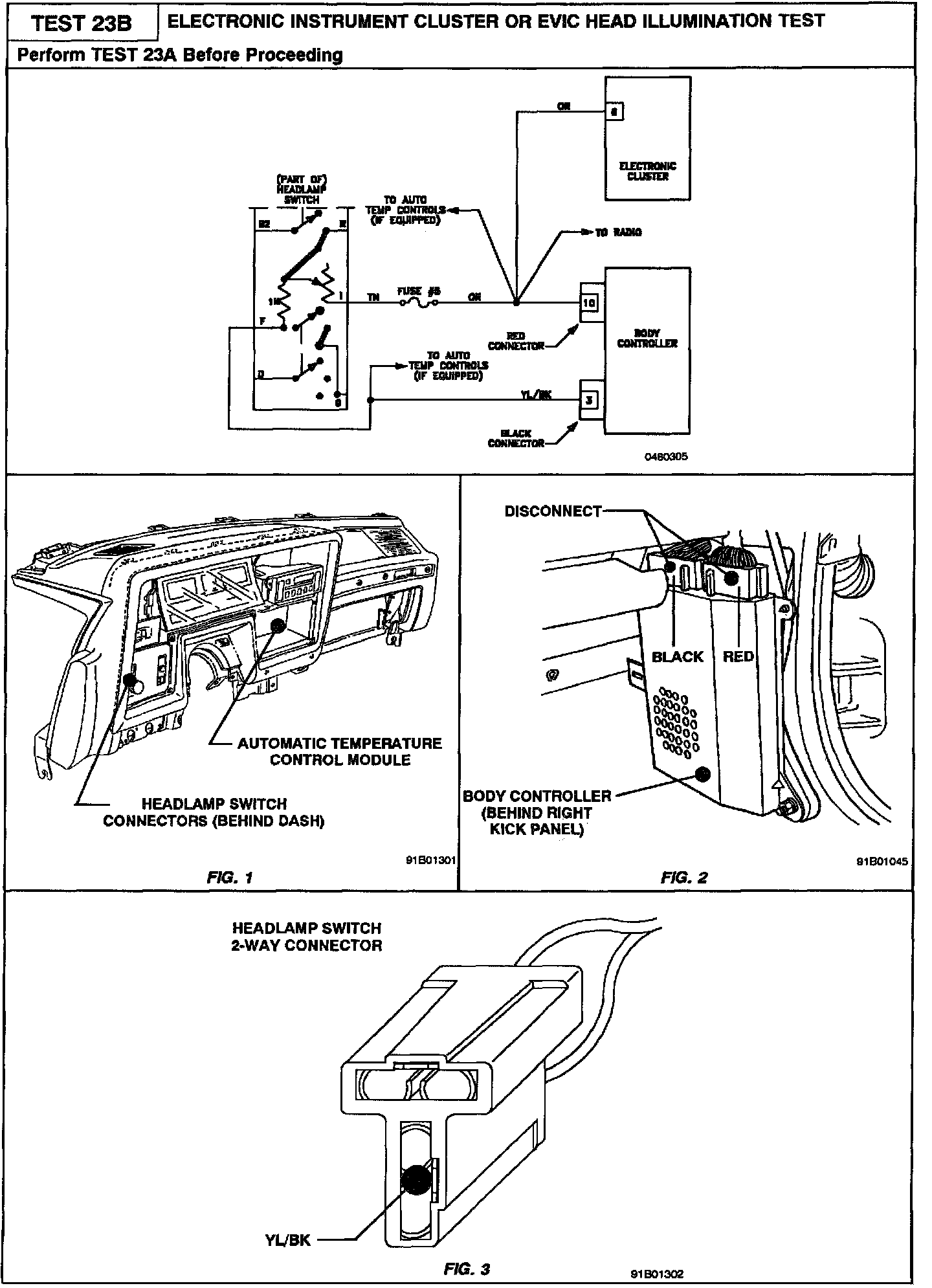

23B Electronic Instrument Cluster/Evic Illumination Test
