Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Electronic Instument Cluster >> 15A Electronic Instrument Cluster Diagnostics

15A Electronic Instrument Cluster Diagnostics

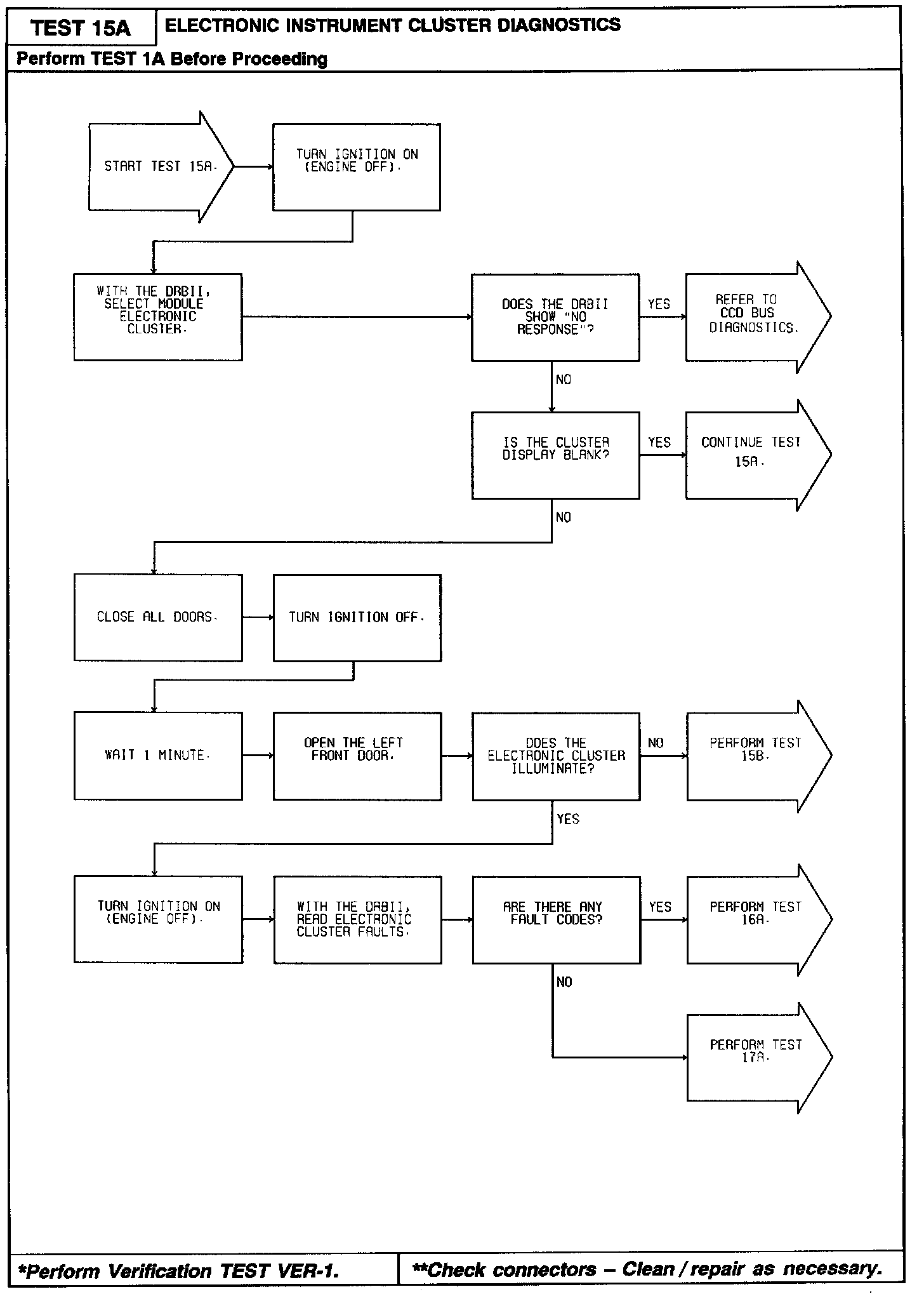

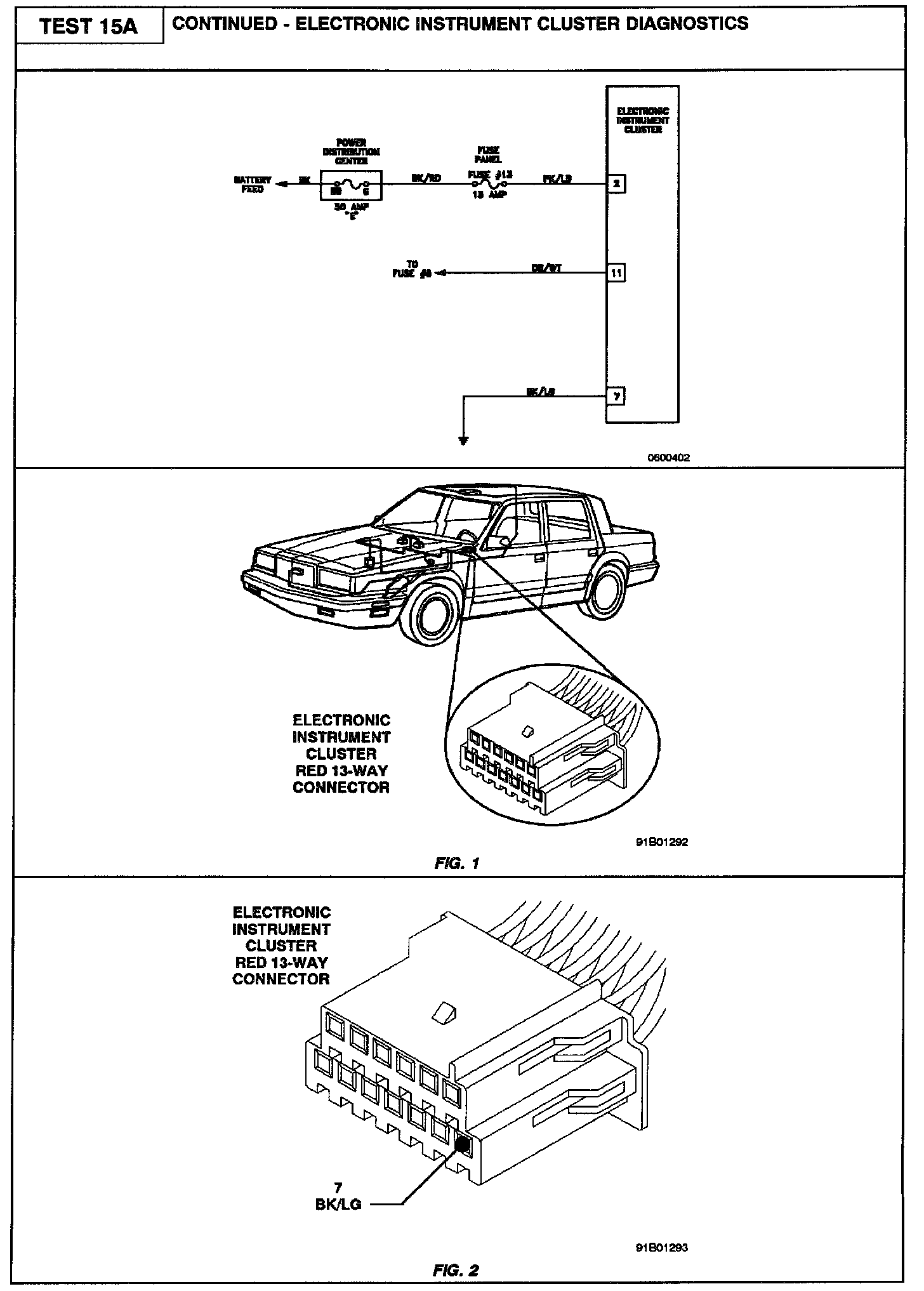

Part 1 of 2

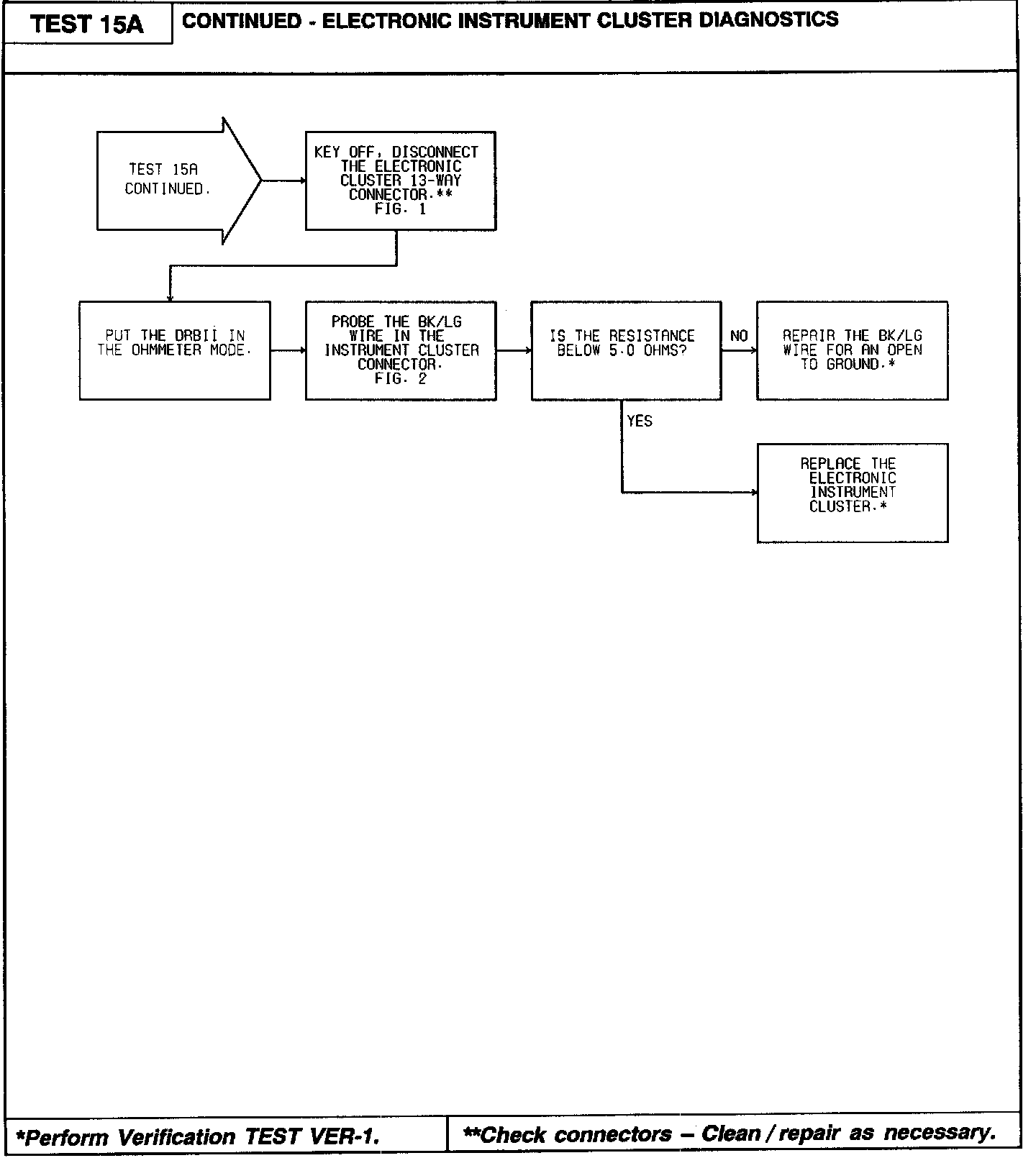

Part 2 of 2
