Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Door Ajar With Visual Message Center >> 70A Identifying Bad Door Ajar Circuit/Visual Mess Center

70A Identifying Bad Door Ajar Circuit/Visual Mess Center

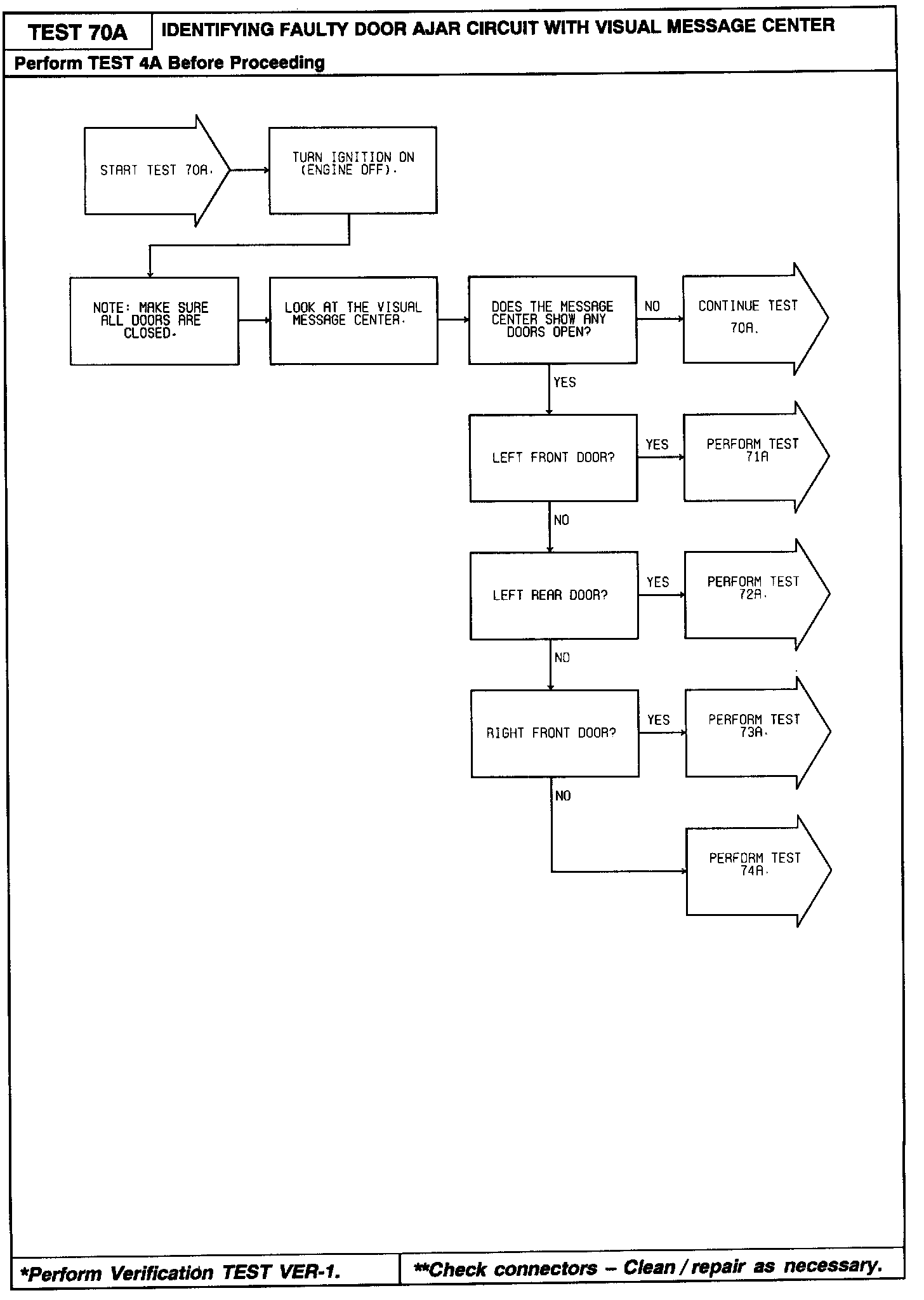

Part 1 of 3

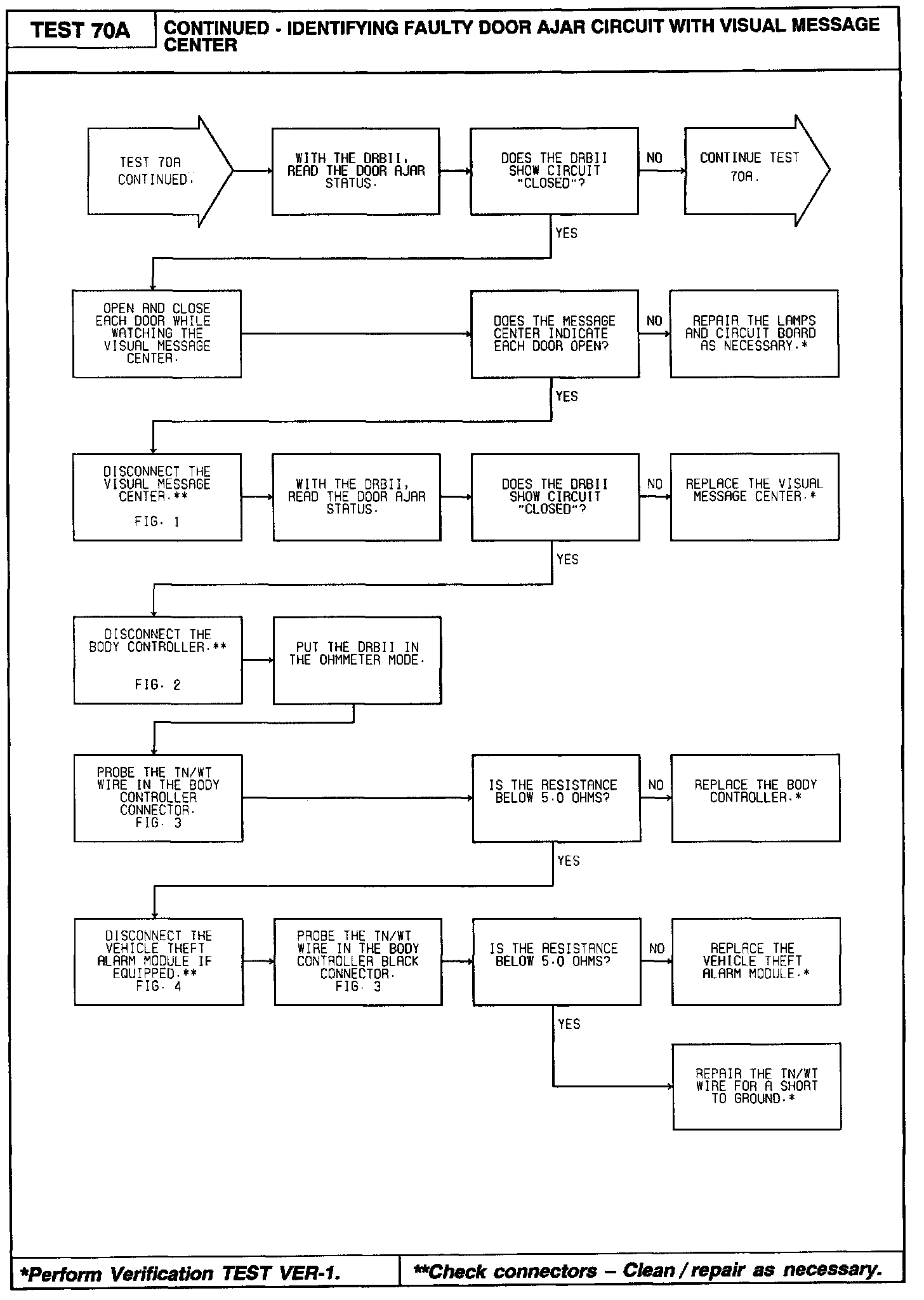

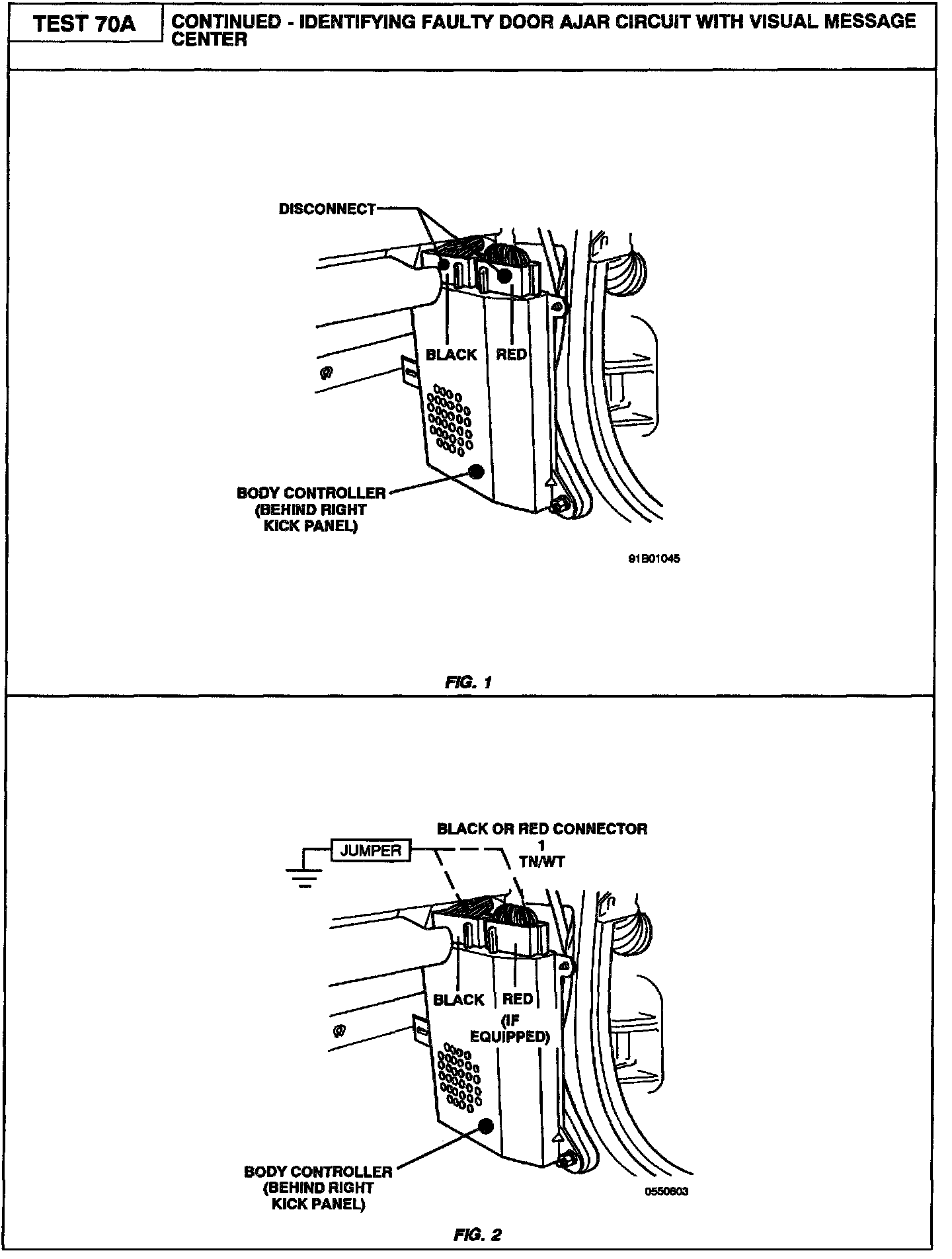

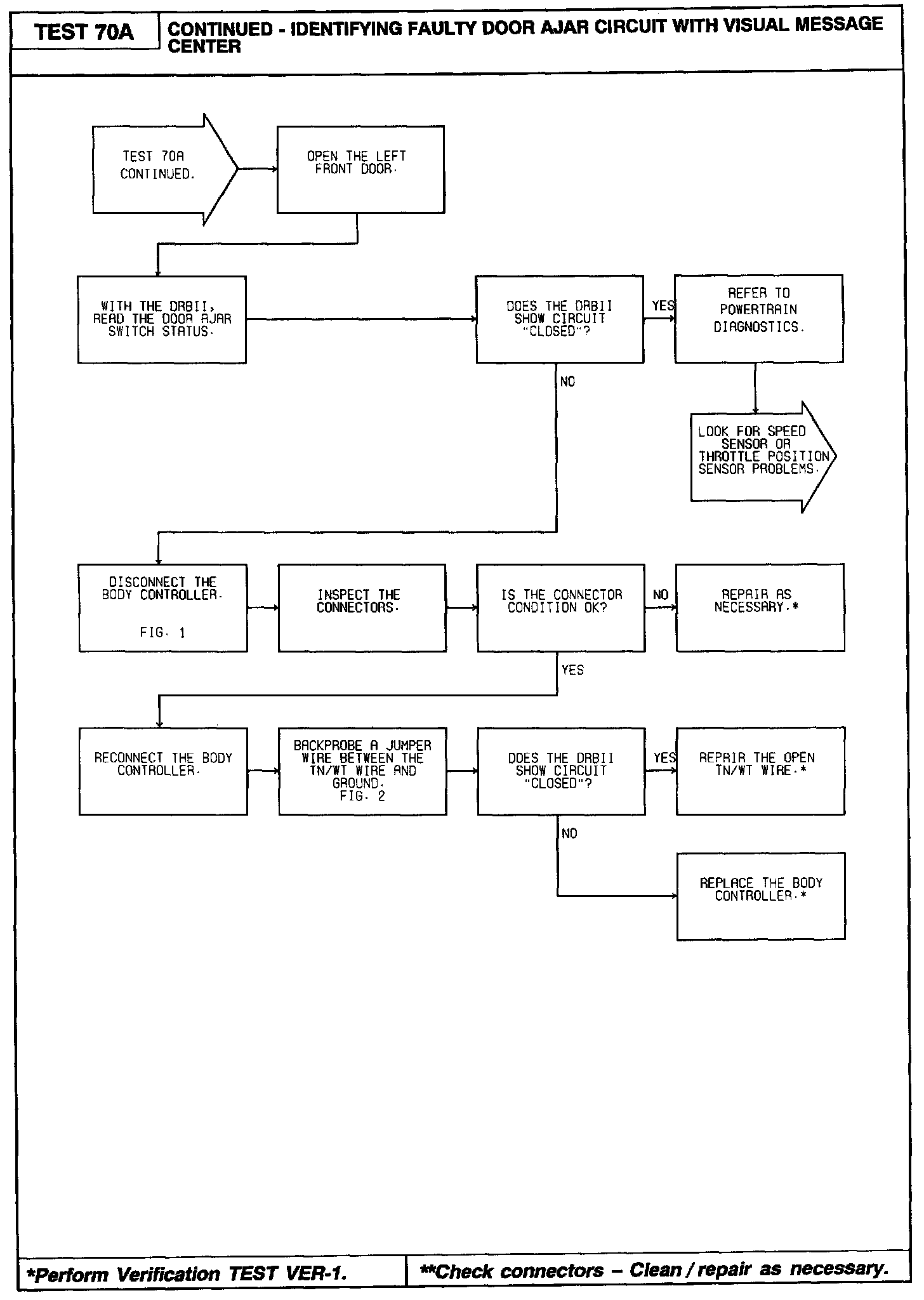

Part 2 of 2










Part 3 of 3
