New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Courtesy Lamp System
>>

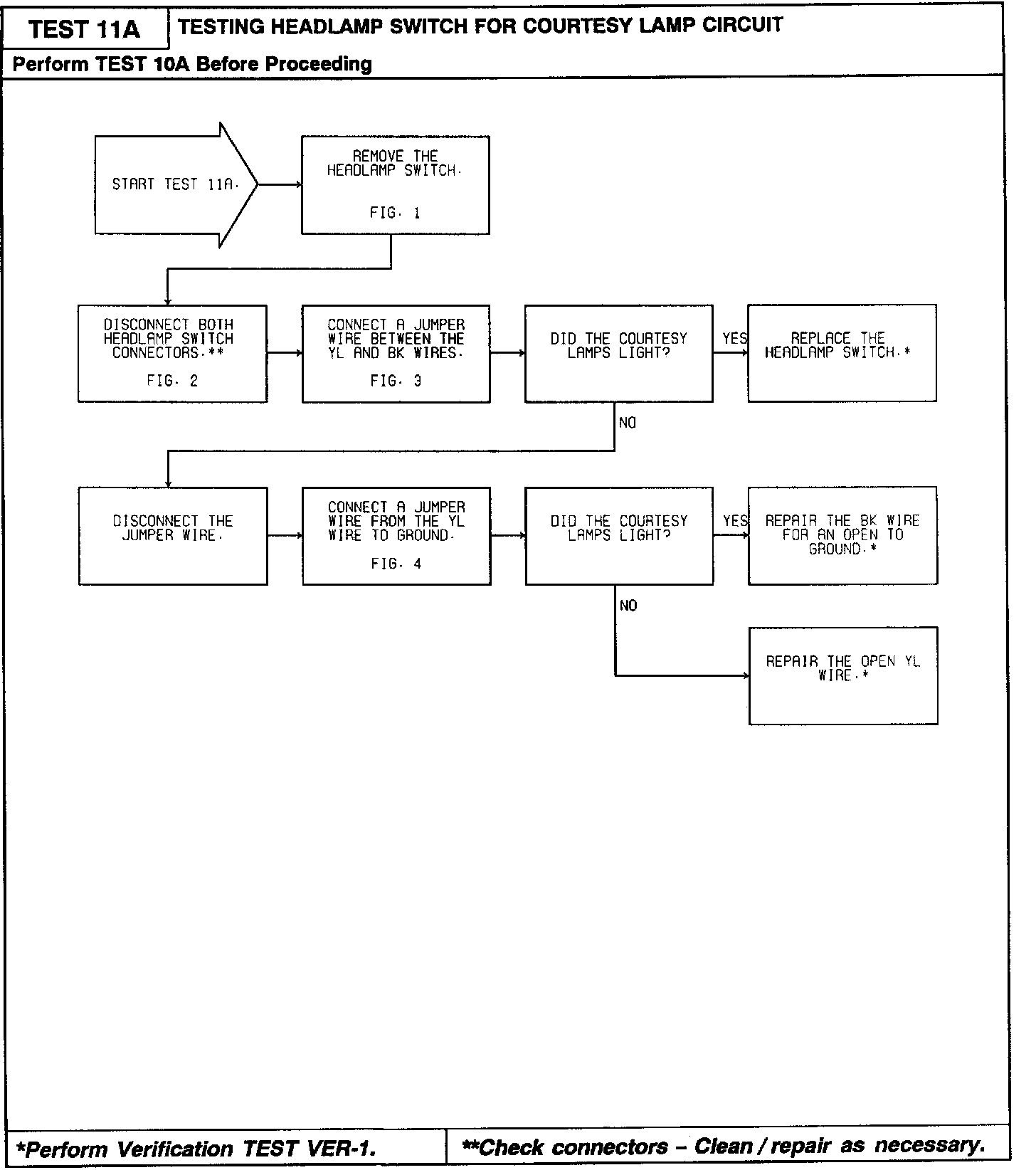

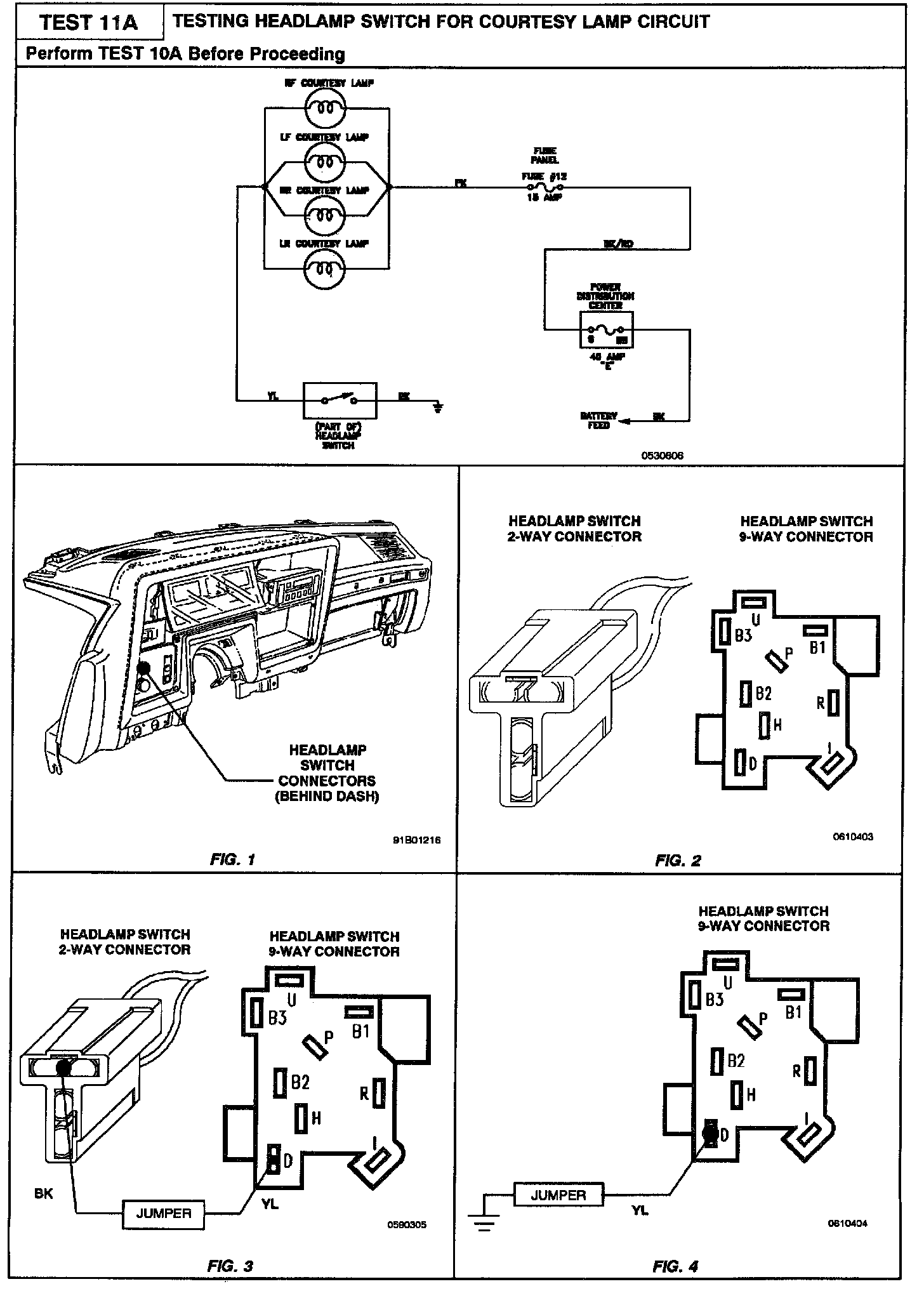

11A Testing Headlamp Switch For Courtesy Lamp Circuit
11A Testing Headlamp Switch For Courtesy Lamp Circuit
