Part 3 of 3

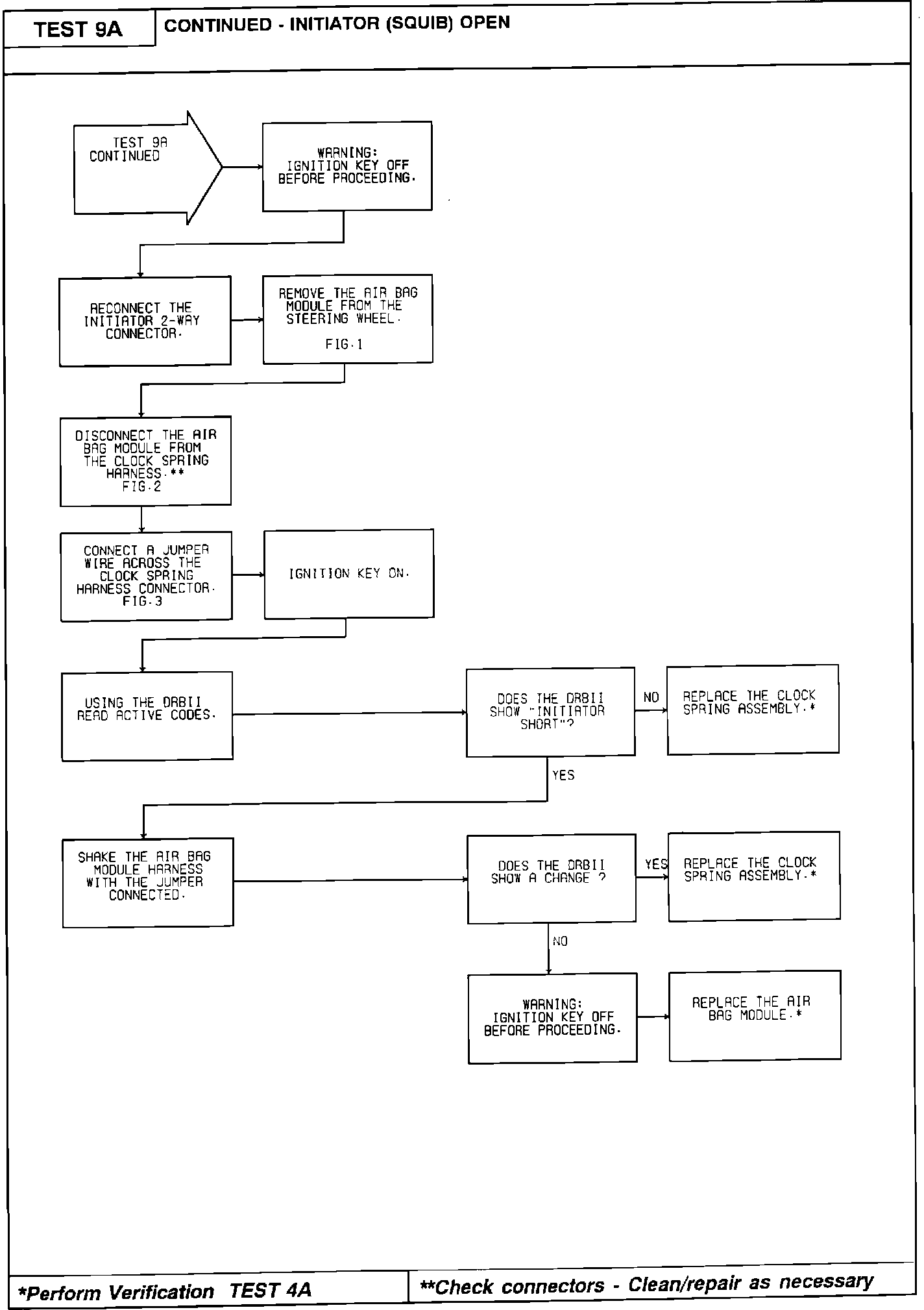

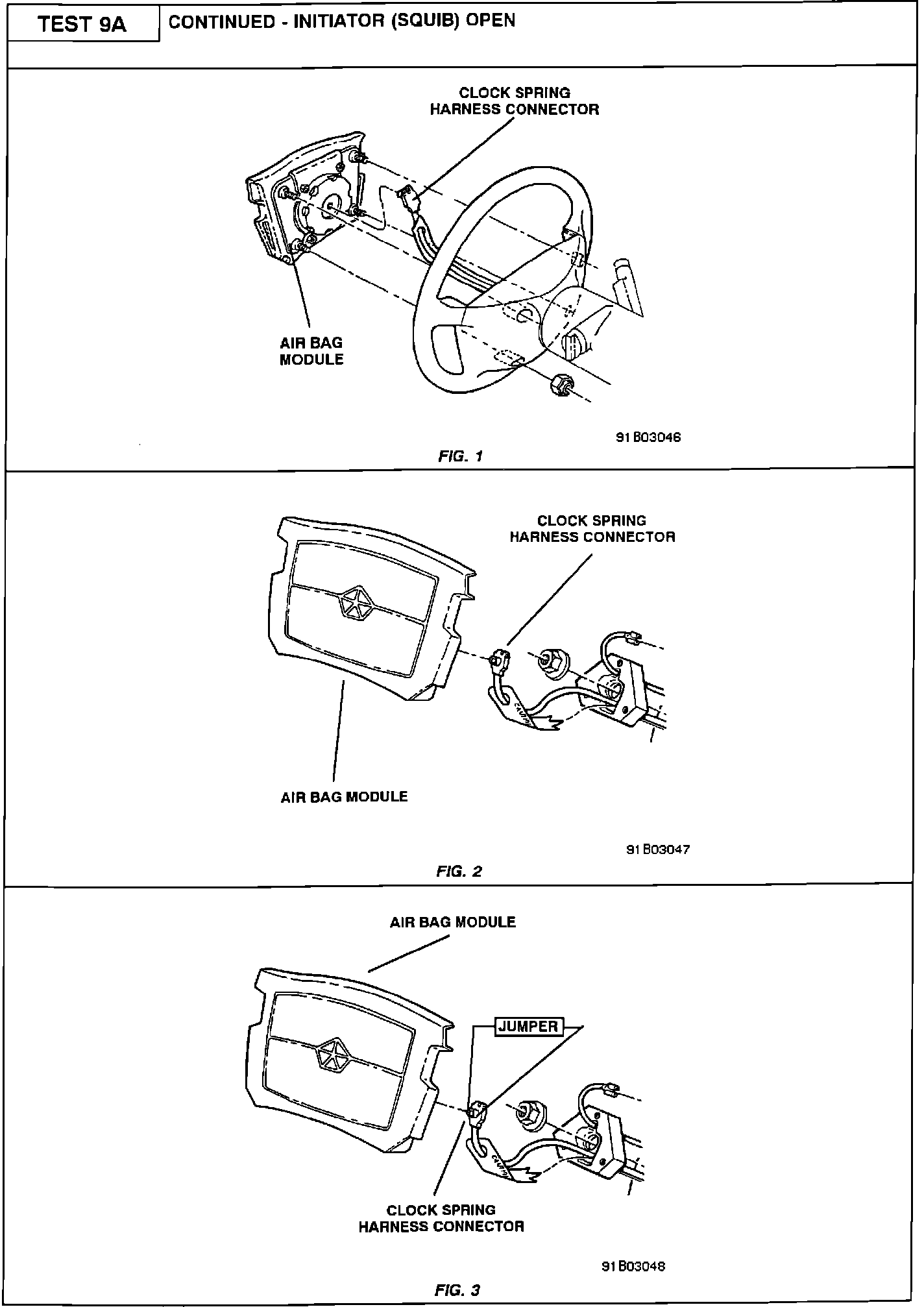

Test 9A - Initiator (Squib) Open (Part 3 Of 3):



Test 9A - Initiator (Squib) Open (Part 3 Of 3):
