Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 9A Repairing Code Initiator (Squib) Open >> Part 1 of 3

Part 1 of 3

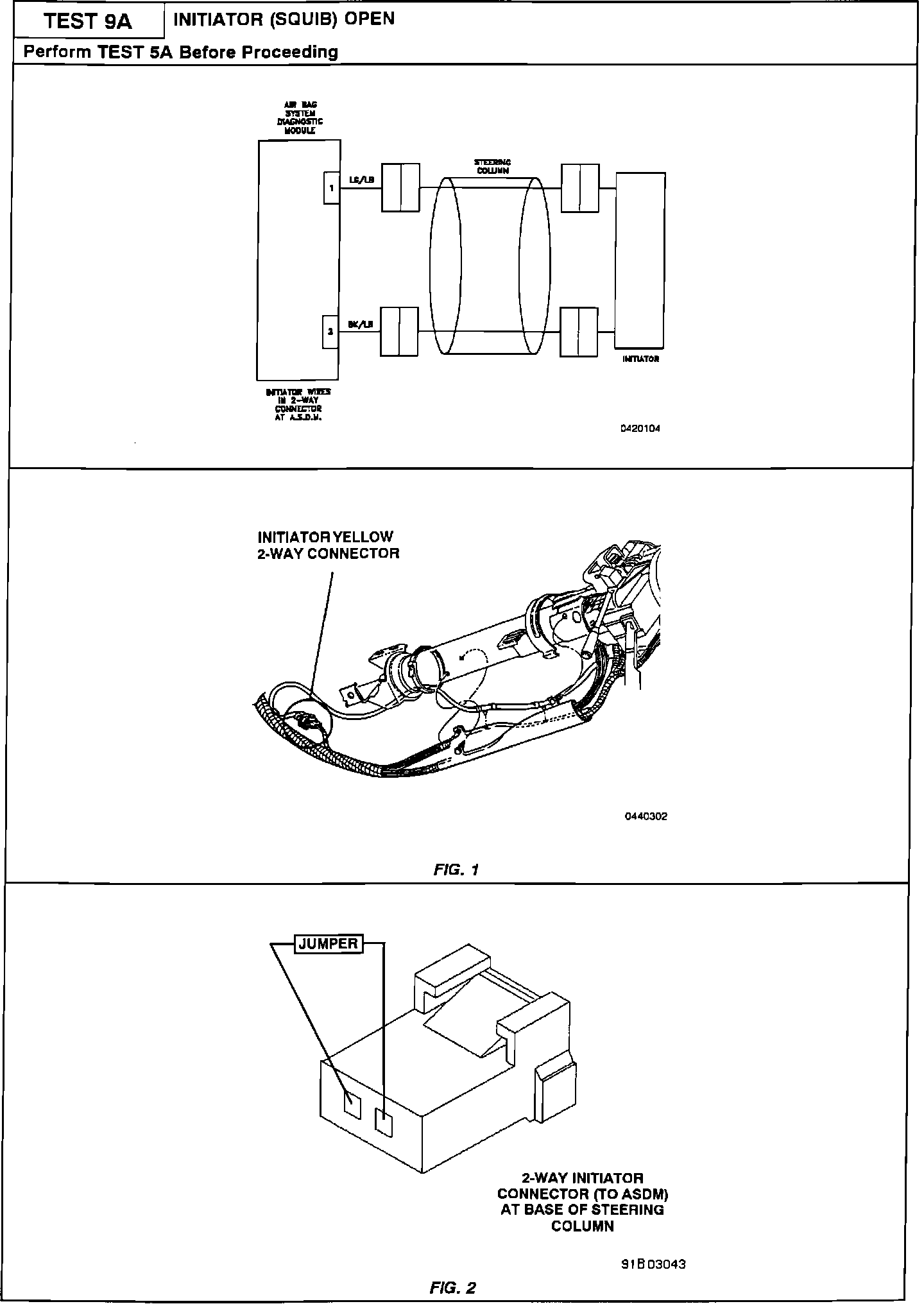

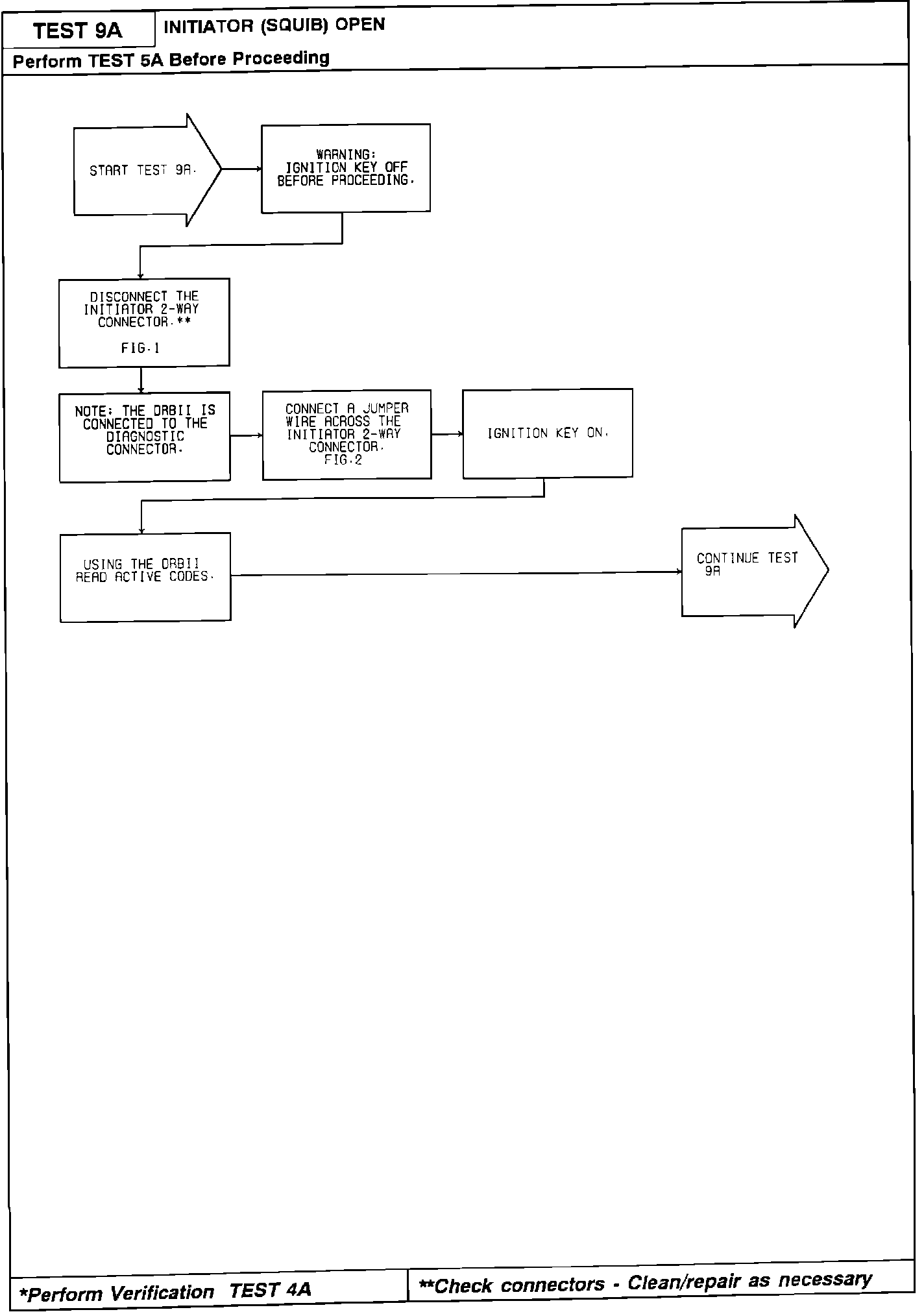

Test 9A - Initiator (Squib) Open (Part 1 Of 3):



Test 9A - Initiator (Squib) Open (Part 1 Of 3):
