Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 8B Repairing Code Ignition 2 (Run Only) Low >> Part 2 of 2

Part 2 of 2

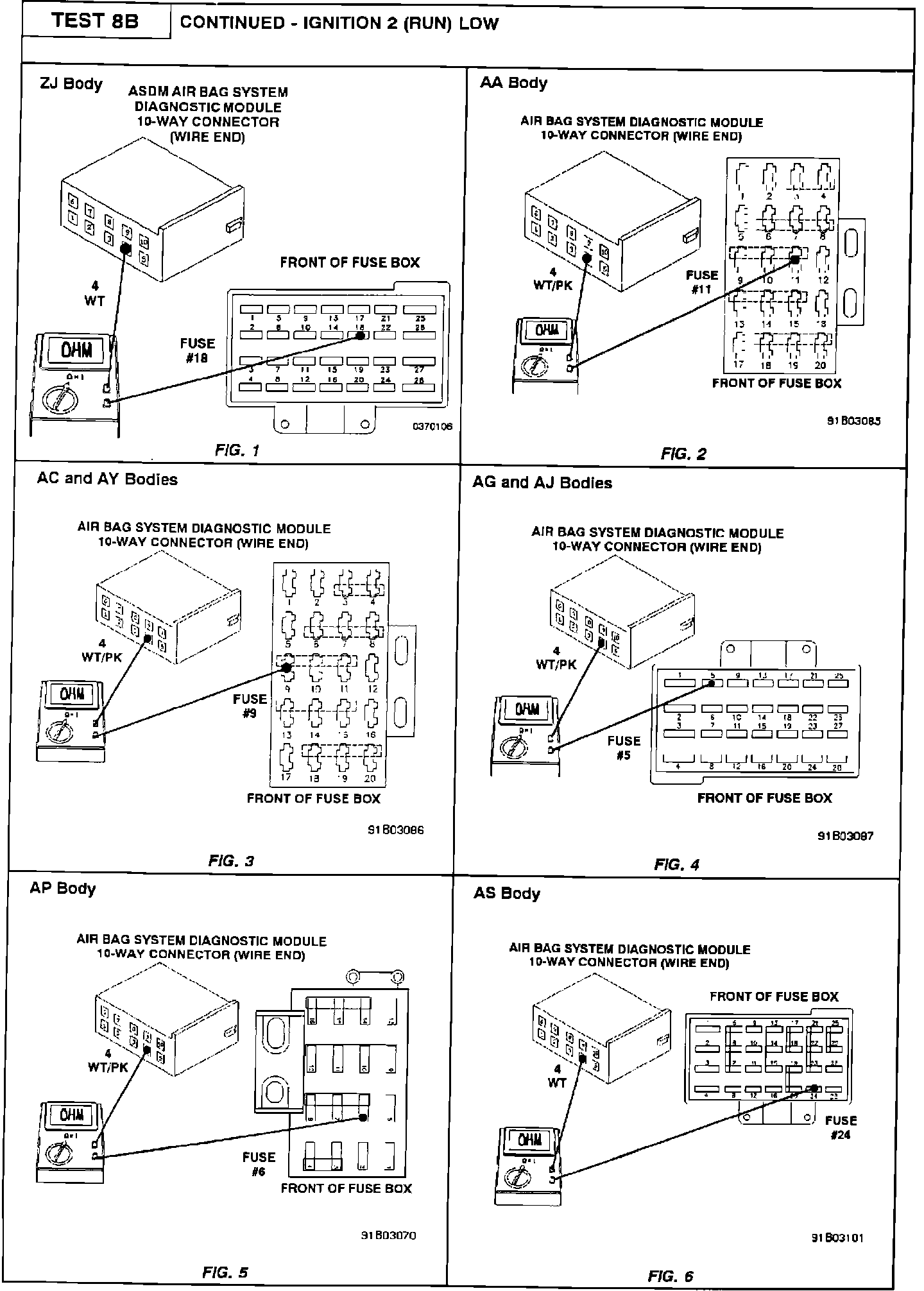

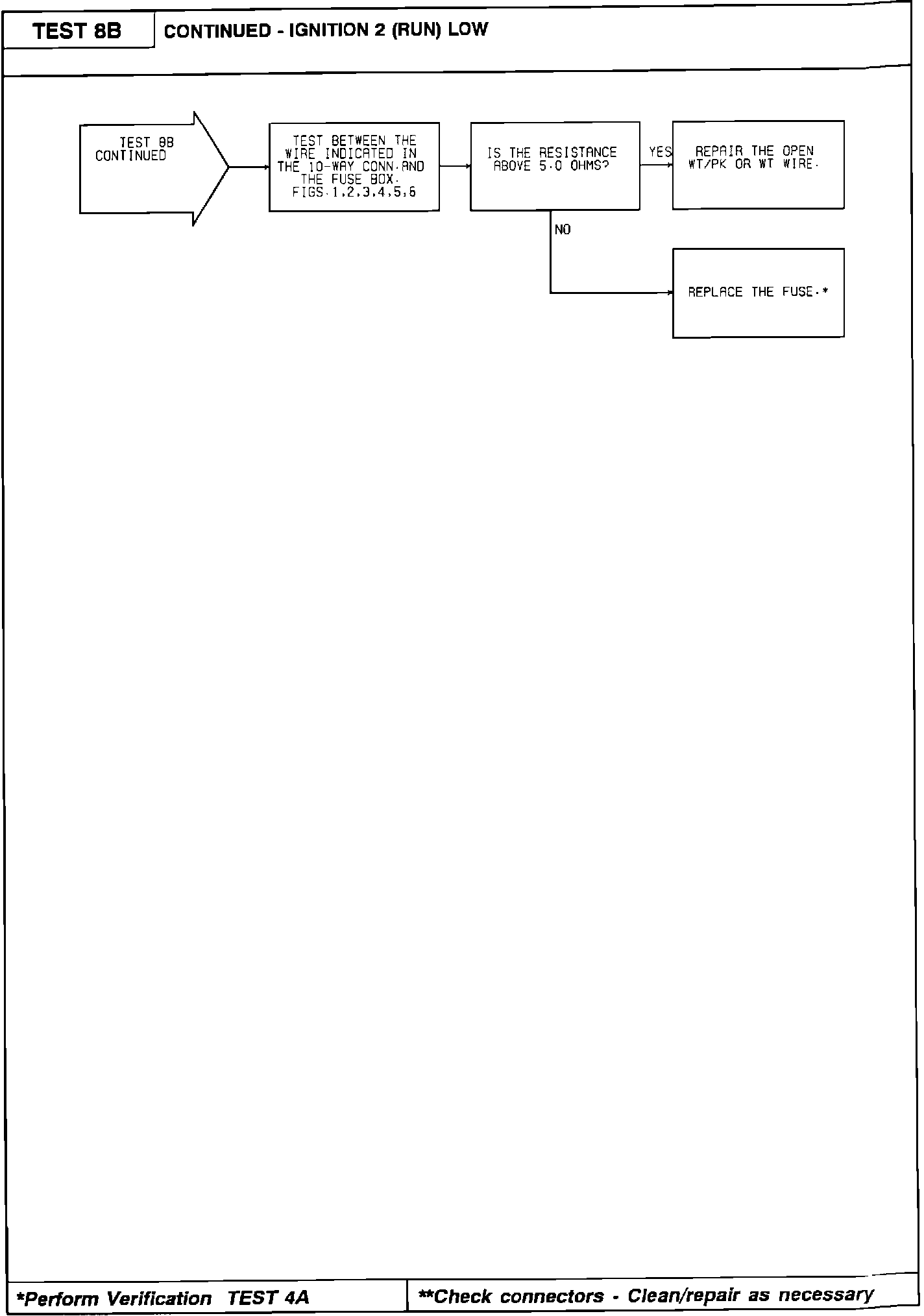

Test 8B - Ignition 2 (Run) Low (Part 2 Of 2):



Test 8B - Ignition 2 (Run) Low (Part 2 Of 2):
