Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 8A Repairing Code Ignition 2 (Run Only) Low >> Part 4 of 4

Part 4 of 4

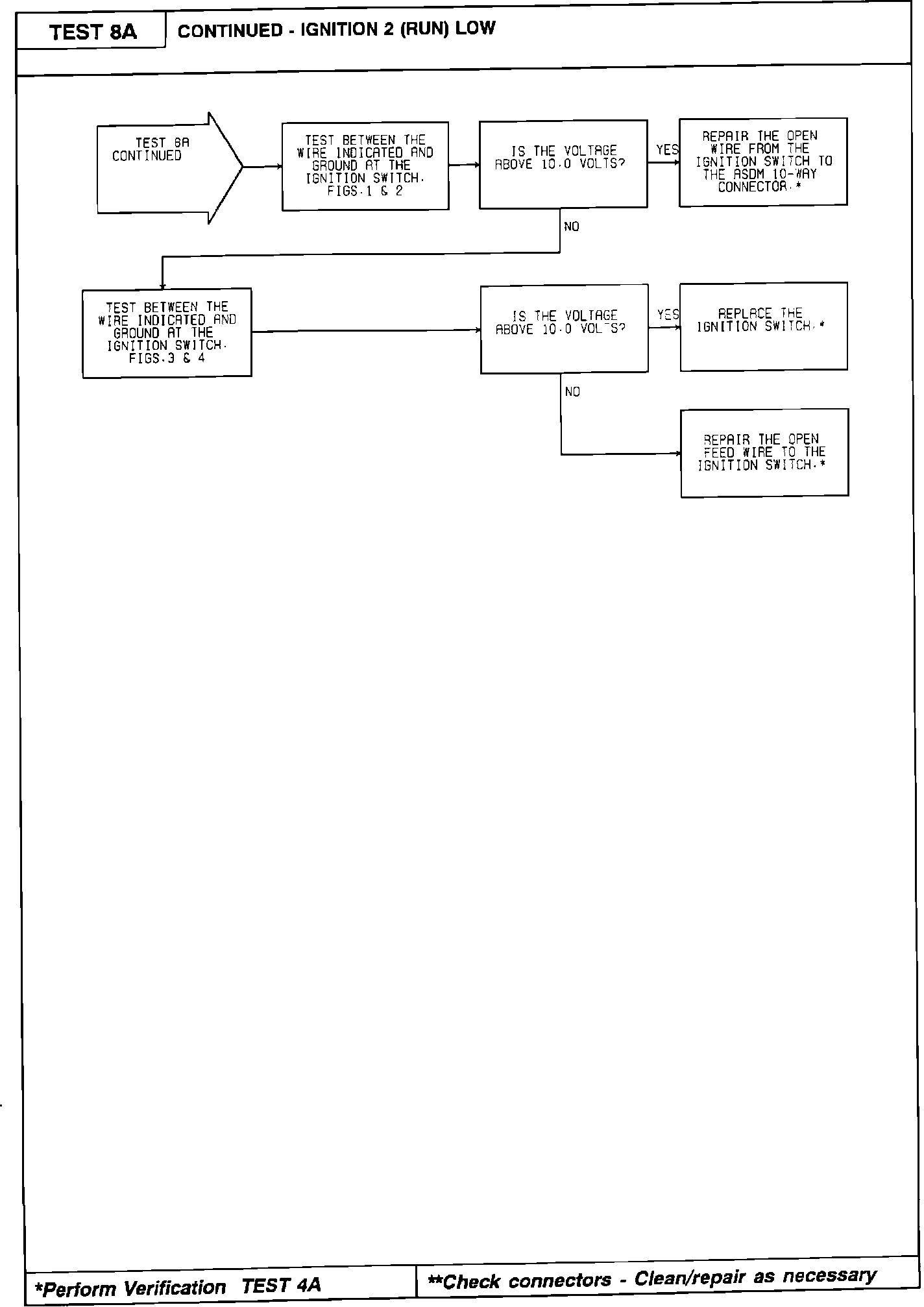

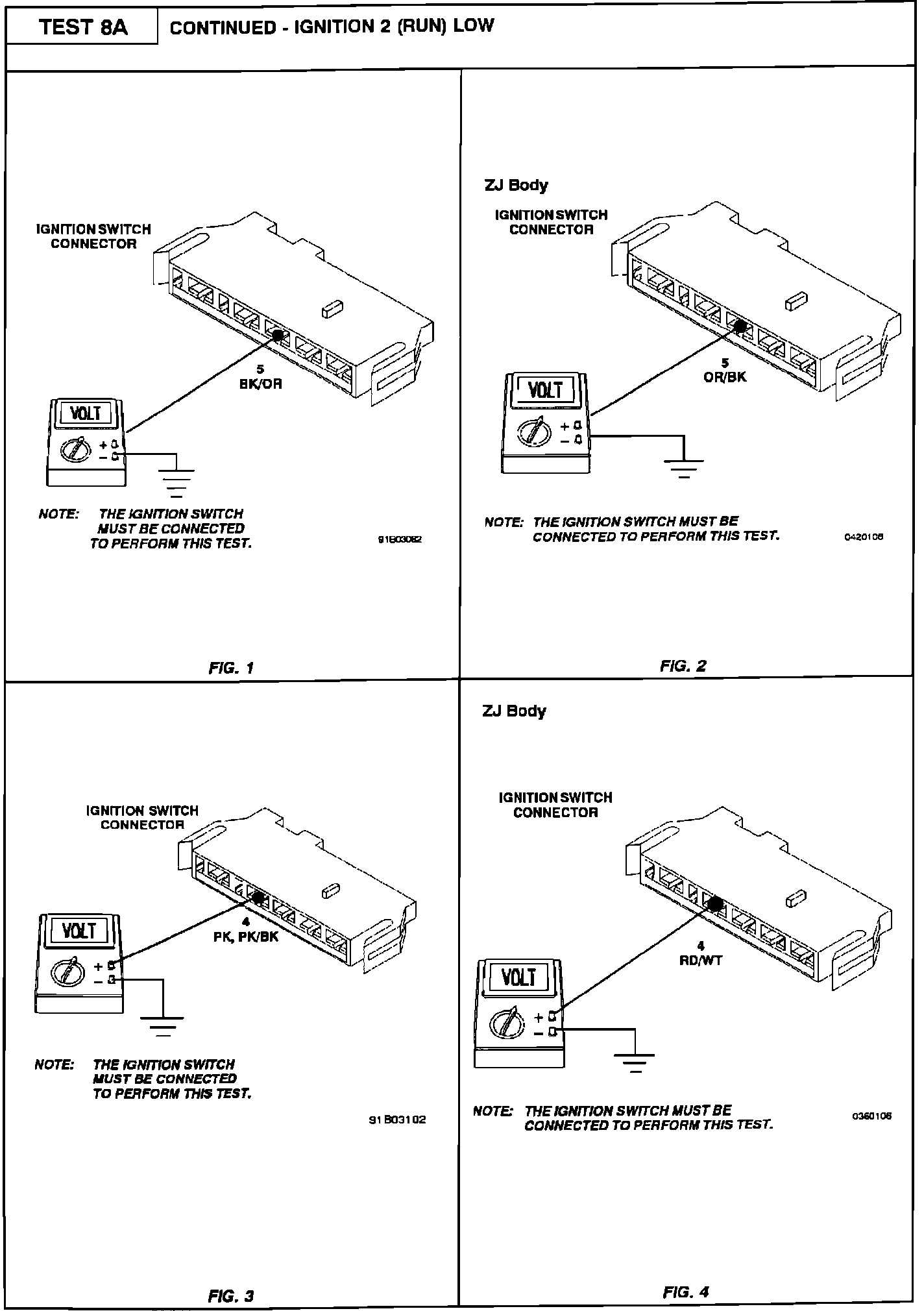

Test 8A - Ignition 2 (Run) Low (Part 4 Of 4):



Test 8A - Ignition 2 (Run) Low (Part 4 Of 4):
