Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 7A Repairing Code Ignition 1 (Start/Run) Low >> Part 4 of 4

Part 4 of 4

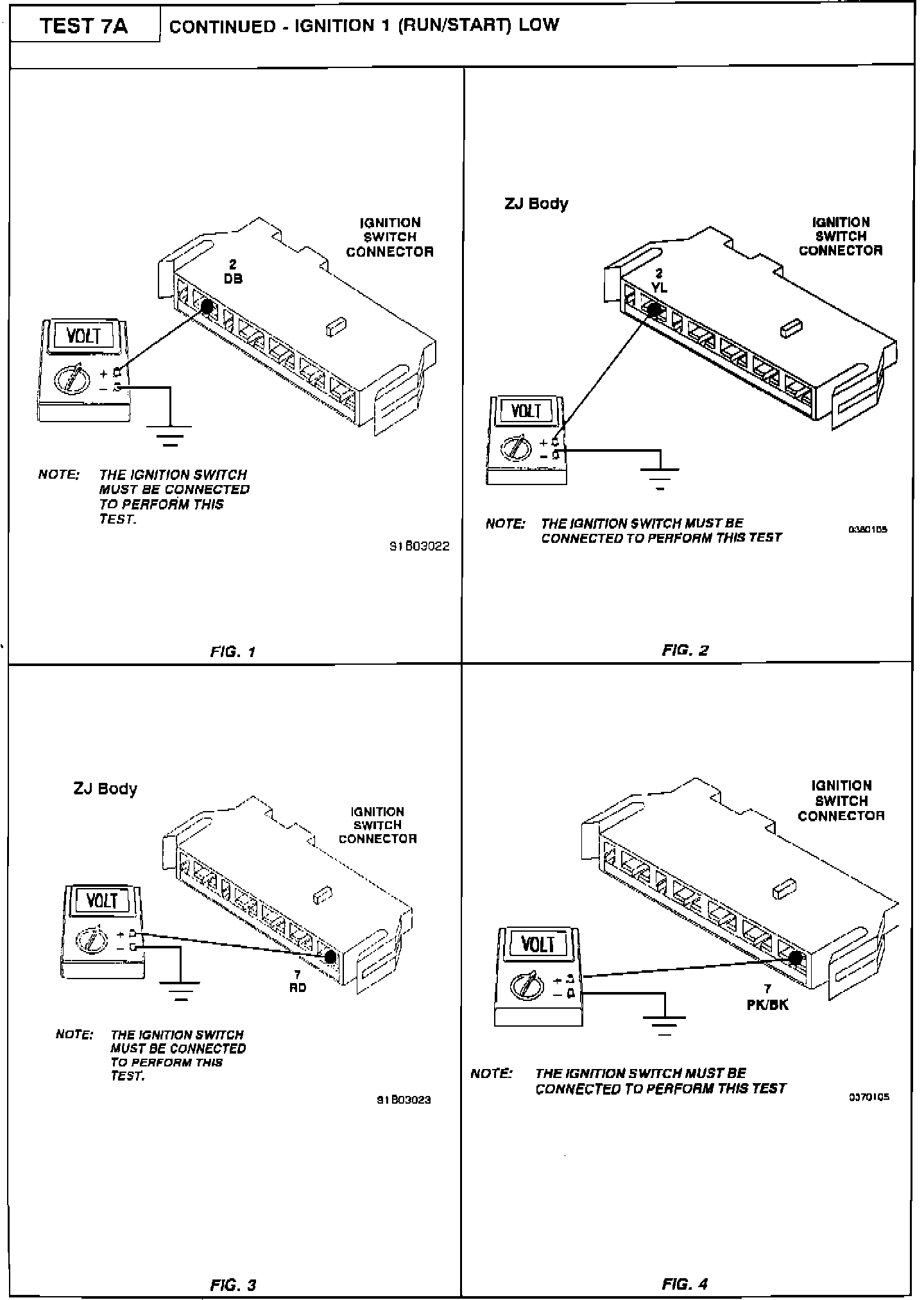

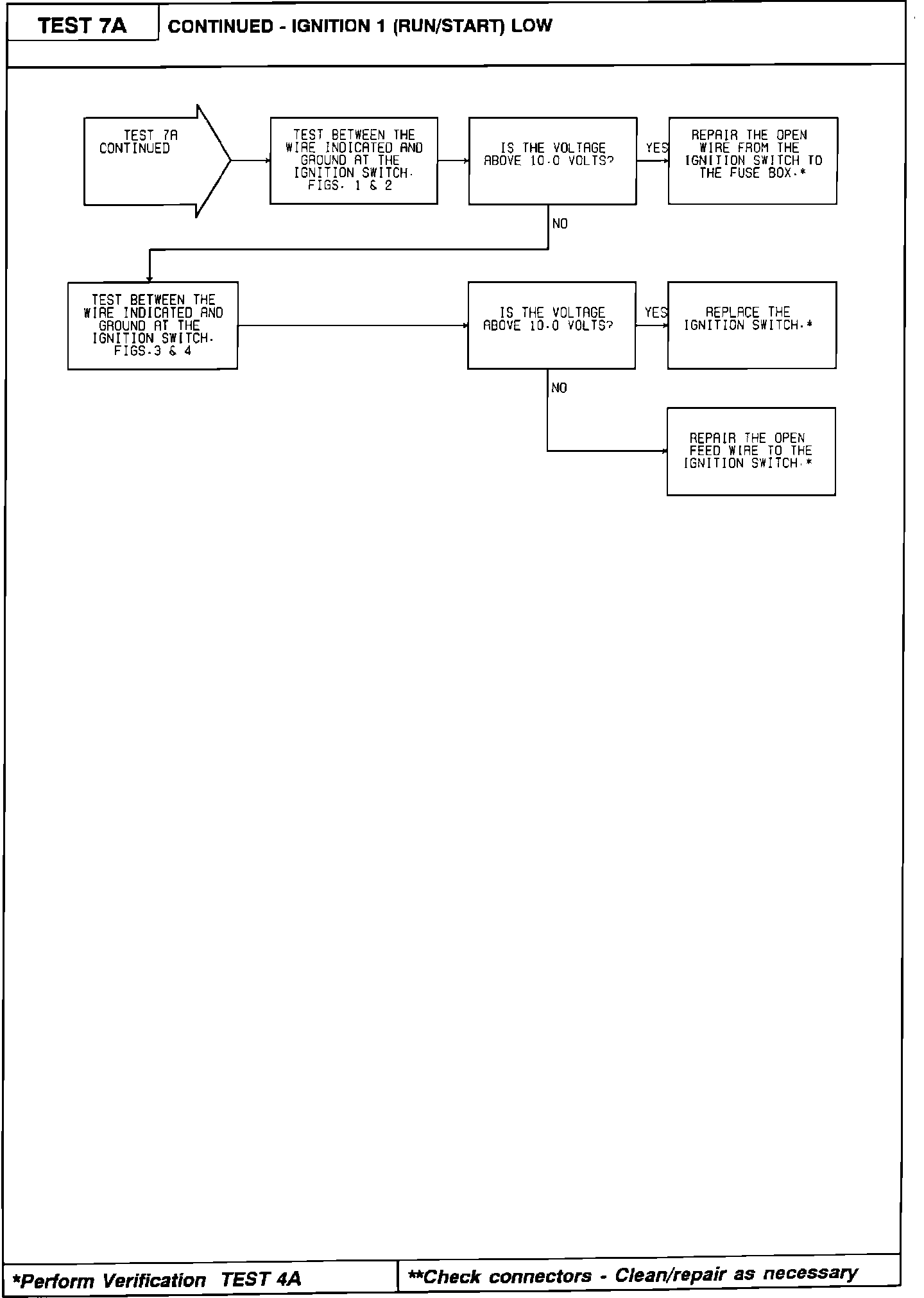

Test 7A - Ignition 1 (Run/Start) Low (Part 4 Of 4):



Test 7A - Ignition 1 (Run/Start) Low (Part 4 Of 4):
