Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 3B Correcting "No Response" Condition

3B Correcting "No Response" Condition

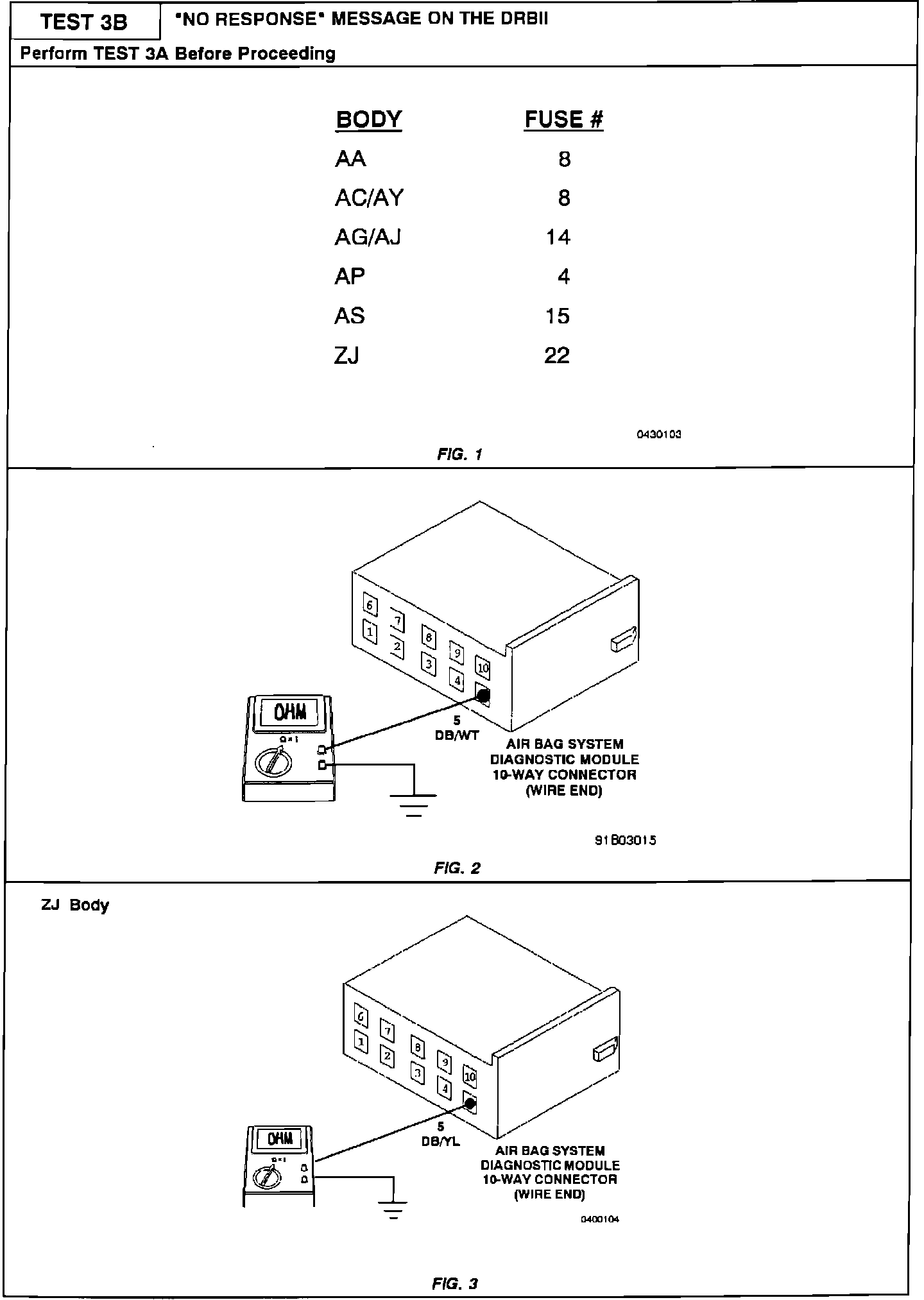

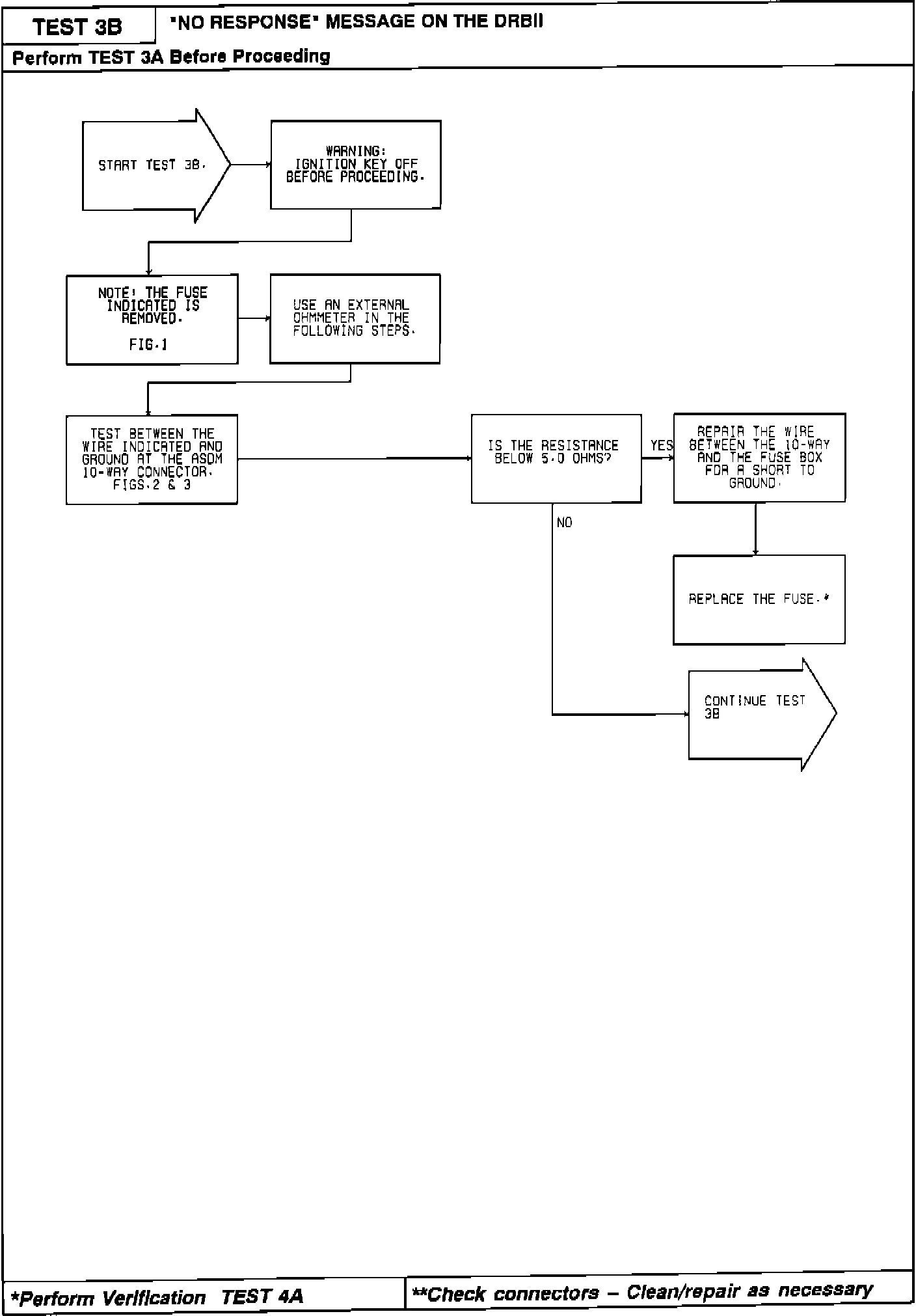

Test 3B - "No Response" Message On Scan Tool (Part 1 Of 2):



Test 3B - "No Response" Message On Scan Tool (Part 1 Of 2):

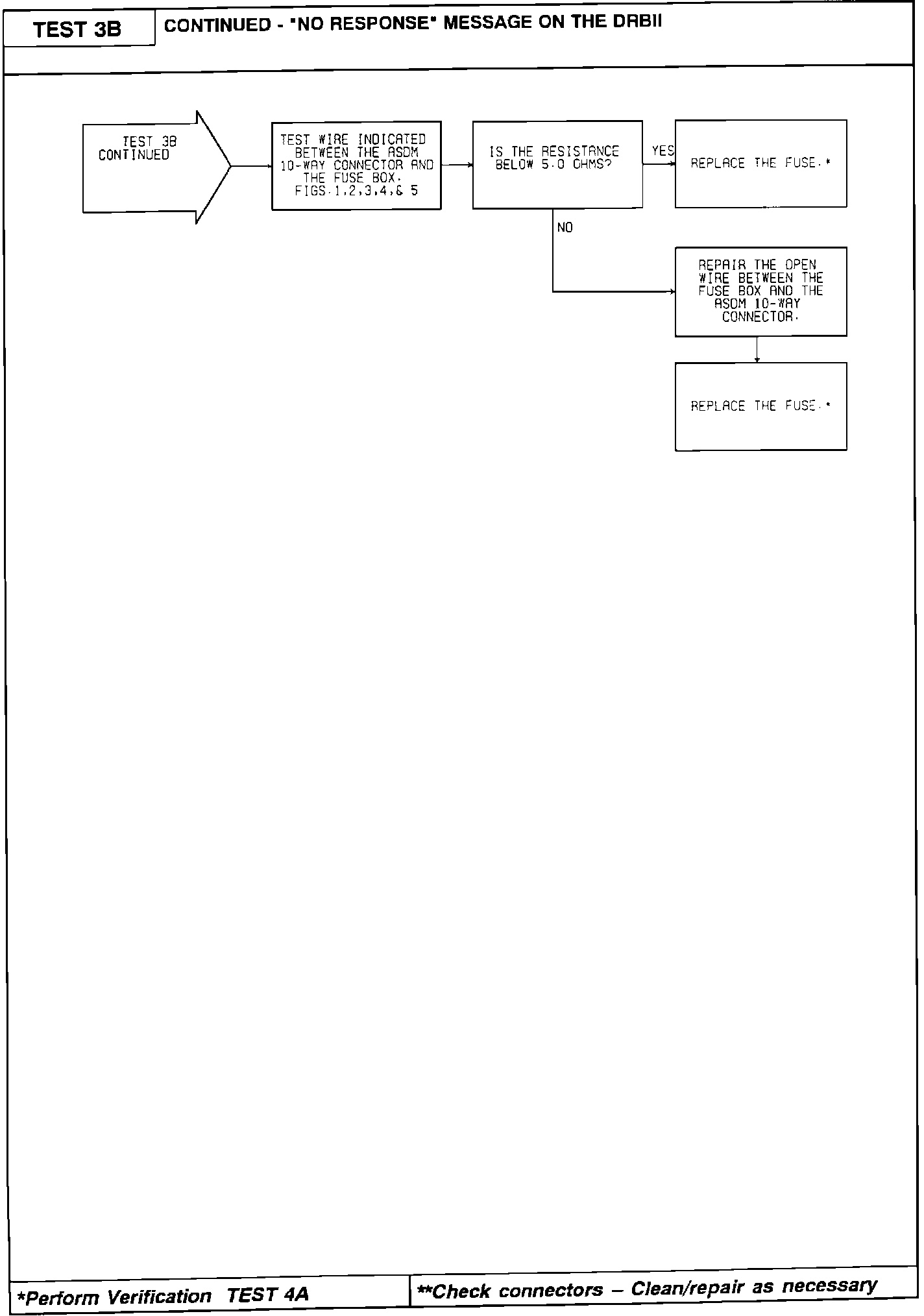

Test 3B - "No Response" Message On Scan Tool (Part 2 Of 2):



Test 3B - "No Response" Message On Scan Tool (Part 2 Of 2):
