2A Repairing A Blank Scan Tool Screen

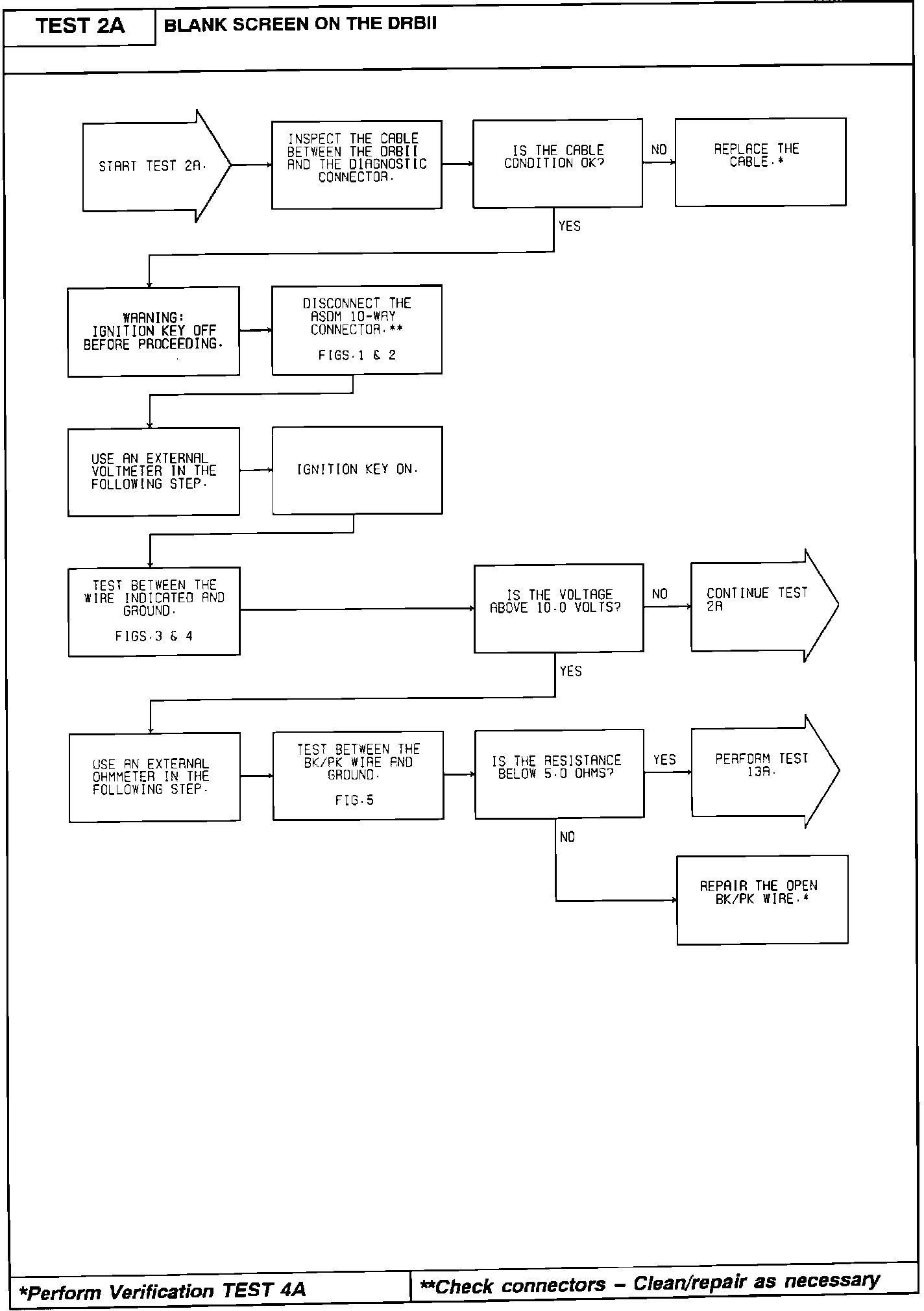

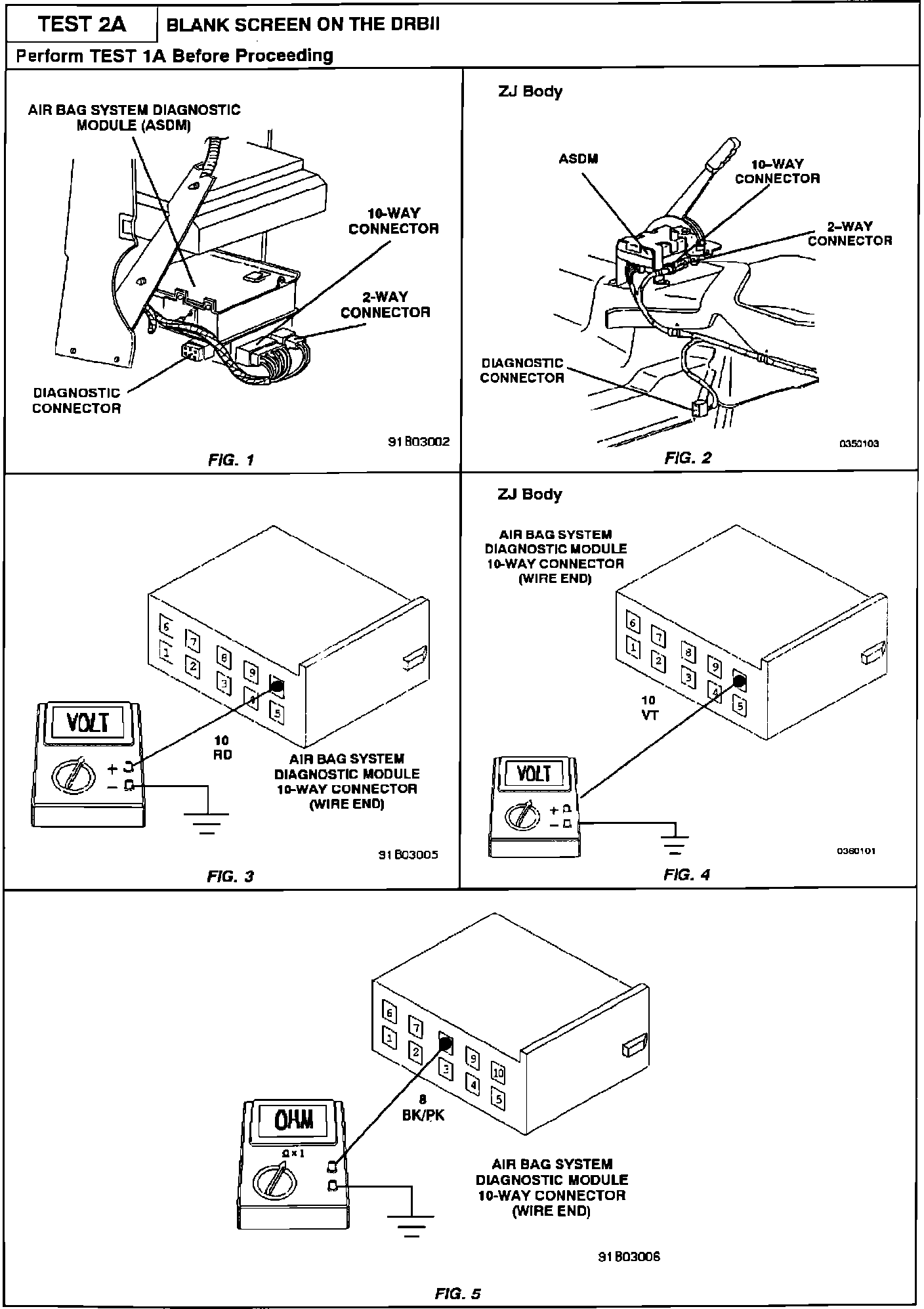

Test 2A - Blank Scan Tool Screen (Part 1 Of 2):



Test 2A - Blank Scan Tool Screen (Part 1 Of 2):

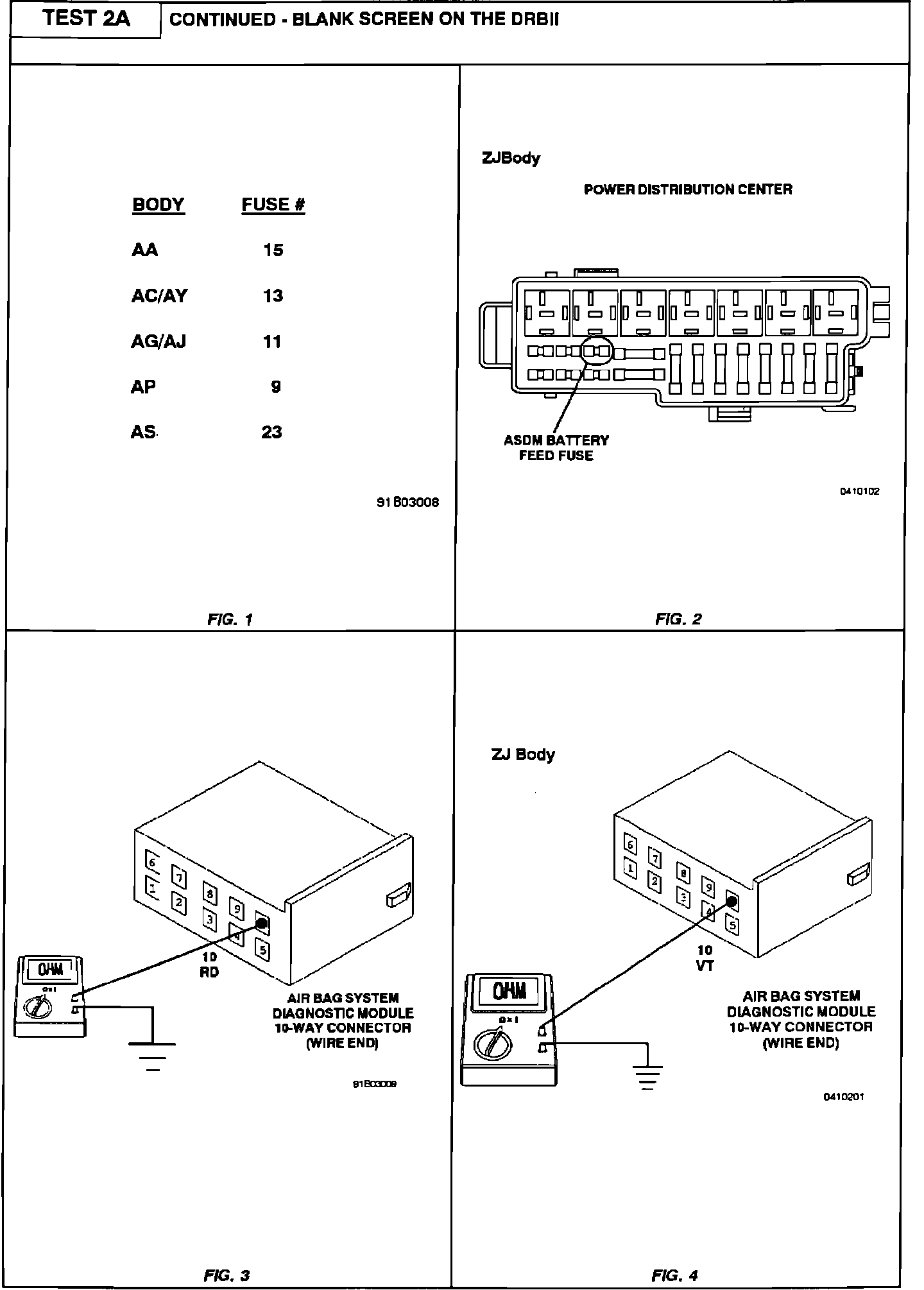

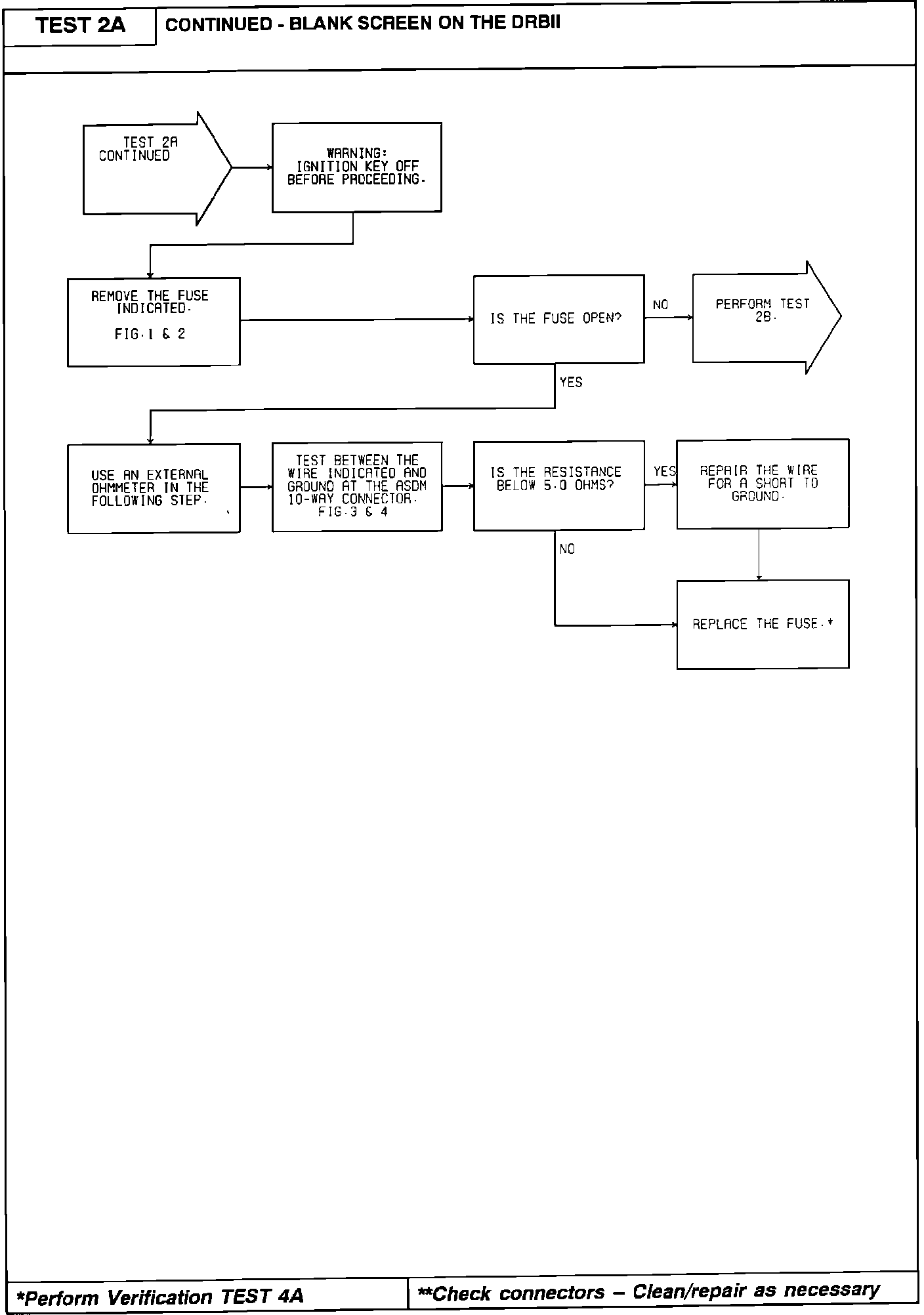

Test 2A - Blank Scan Tool Screen (Part 2 Of 2):



Test 2A - Blank Scan Tool Screen (Part 2 Of 2):
